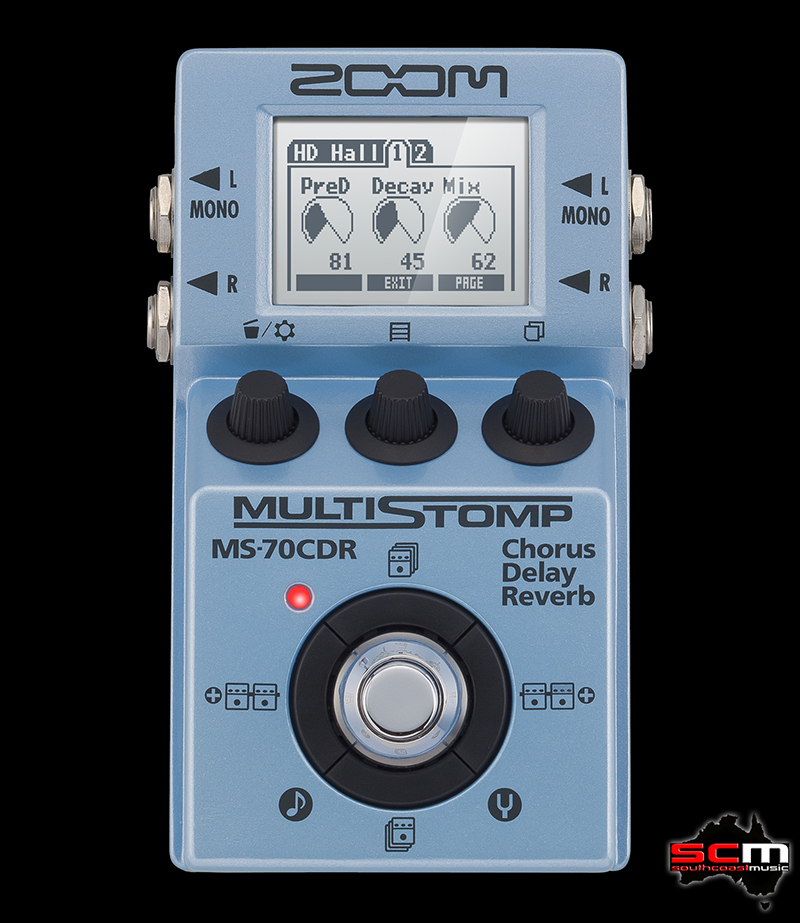

ZOOM MS70CDR MULTISTOMP CHORUS DELAY REVERB PEDAL
A little box full of huge effects MS-70CDR MultiStomp Chorus / Delay / Reverb Pedal
• 86 guitar and bass effects, including modulation, equalization, delay, and reverb
• Up to 6 effects can be used simultaneously, in any order
• 50 memory locations for the storage of user-created patches
• 40 preset patches
• Patch cycling
• Onboard Chromatic Tuner
• Tuner supports all standard Guitar, Bass, Open and Drop Tunings
• Tap Tempo for synchronization of delay times or modulation rates
• Auto Save function for automatic saving of all patch parameters
• Mono and stereo operation
• Dual 6.35mm (¼”) input jacks (both active and passive instruments supported)
• Dual 6.35mm (¼”) output jacks
• Backlit LCD with contrast control for easy viewing in low-light environments
• USB port for power and firmware updates
• Lightweight and small enough to fit in your gig bag
• Easily integrated into any existing pedalboard
• Runs on 2 AA batteries, with alkaline battery life of up to 7 hours
• Optional AC adapter (Zoom AD-16)
Zoom’s MS-70CDR MultiStomp Chorus / Delay / Reverb pedal is the first of its kind. It provides the full power of a rack-mounted multi-effects device in a compact stompbox design.
With 86 incredible Hi-Fidelity guitar and bass effects, an easy-to-use interface, onboard chromatic tuner and versatile power options, you’ll be astonished at how much this little box offers.
ONE PEDAL – EIGHTY SIX EFFECTS
Whether you’re a guitarist or a bass player, you can cut down the size of your pedalboard by adding an MS-70CDR. From warm vintage sounds to a pristine modern tones, this amazing pedal can do it all.
At your fingertips are 86 diverse options for shaping your sound. For ease of use, these are organized into the following categories:
CHORUS
31 different chorus and modulation effects for guitar and bass are provided, including:
• Phasing
• Flanging
• Tremolo
• Vibrato
• Detuning
• Auto-Panning
• Rotary Speaker Emulations
• Pitch Shifting
• Intelligent Harmoniser that plays along in key
There are also classic Vintage sounds that include simulations of the following iconic pedals:
• TC Electronic Corona Chorus
• TC Electronic Tri-Chorus
• Boss CH-1 Super Chorus
• Boss CE-1 Chorus Ensemble
• Boss CE-5 Chorus Ensemble
• MXR M234 Analog Chorus
• Electro-Harmonix SmallClone
• ADA flanger.
DELAYS
This category includes 26 mono and stereo delays, with delay times of up to 4 seconds. You’ll find everything here from reverse and multi-tap to pitch-shifted and self-oscillating delays.
Emulations of some of the world’s most revered Delay Processors include:
• Eventide TimeFactor
• MXR Carbon Copy
• Maestro Echoplex EP-3
• Line6 M9 TubeEcho
• TC Electronic Flashback
• Strymon TimeLine
• Boss DD-20
The MS-70CDR’s Tail function allows delays and reverbs to fade away naturally, even through the next played phrase. For example, if you play a solo using a delay effect and then switch to a rhythm tone that has no delay, you will hear the sound of the solo’s delay until it has faded away. Now, that is brilliant!
REVERBS
The MS-70CDR’s cutting-edge DSP microchip performs 32-bit floating-point calculations, giving it the ability to create sophisticated studio-quality effects such as the 25 rich, dense reverbs and realistic spatial simulations found here. These rooms, halls, arenas, plates, and springs allow you to add depth and spaciousness to your sound.
Vintage emulations include:
• TC Electronic Hall of Fame
• TC Electronic Nova
• Digitech RV-7
• Eventide Space
• Electro-Harmonix Holy Grail
• Strymon blueSky.
DYNAMICS EFFECTS / FILTERS
Round out your sound with your choice of two different graphic equalizers — one optimised for guitar and the other for bass — both with Zoom’s Noise Reduction (ZNR) algorithm, designed to remove noise during pauses while still maintaining your instrument’s natural tone.
View the full list of all the MS-70CDR effects, along with a list of their editable parameters.
NOTE: Manufacturer names and product names are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation or Zoom North America.
FULLY FEATURES AND EASY TO USE
The MS-70CDR’s intuitive design allows easy navigation in both live and studio settings and makes creating, saving, and rearranging effects a breeze.
Its stereo input jacks accept signals from both passive and active guitars, as well as from line-level devices such as electronic keyboards, synthesisers and other effects processors. The dual line-level output jacks enable you to record the MS-70CDR’s many sounds in stereo.
You can use up to 6 effects simultaneously and arrange them in any order you like — even bring individual effects in and out of the chain as desired.
The MS-70CDR allows you to create and store up to 50 of your original patches. There are also 40 pre-programmed patches which form a versatile collection that includes some of the most popular guitar stompbox sounds, as well as effects personally designed by some of the world’s top musicians.
An Auto Save function ensures that whatever edits you make will automatically be saved. If you want to be able to cycle through selected effects each time you press the footswitch – the MS-70CDR gives you the ability to program the order in which patches appear. You can create and save up to 50 original chains this way. You can program the recall order of up to 26 patches (A-Z) — a great feature for live gigs or whenever you want your effects in a certain order.
INTUITIVELY INTUNE
The onboard chromatic tuner supports a variety of standard guitar tunings including drop tunings and you can opt to either bypass all effects during tuning or to mute the outputs so that you can tune in silence. Simply hold the footswitch down to instantly activate the built-in chromatic tuner, even in the middle of a performance. You can choose between a BYPASS mode that turns all the effects off and a MUTE mode that allows you to tune silently.
Last but not least, the MS-70CDR’s Tap Tempo feature allows you to to set delay times and modulation effect frequencies in real time to the rhythm of the song you’re playing. Use the Tap Tempo feature to set the tempo in real time to the rhythm of the song you’re playing. Tap Tempo can also be used to set delay times and modulation effect frequencies.
POWER TO SPARE

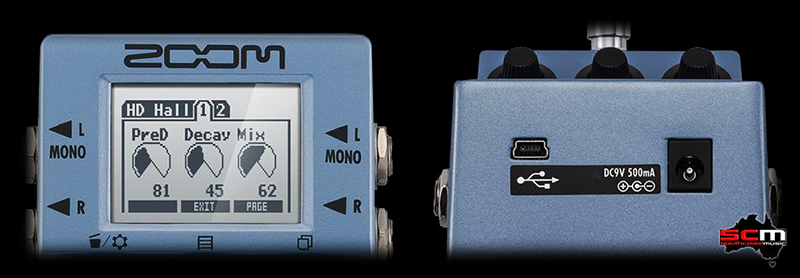

The ZOOM MS70CDR has all the bases covered when it come to power and can be run from USB, Batteries or an optional ZOOM Power supply.
The ZOOM MS-70CDR runs on just 2xAA batteries — either alkaline or rechargeable NiMH — and powers up automatically when a connector is inserted into its input jack. A Power Management function automatically turns the pedal off if unused for extended periods.
Battery life is up to 7 hours with alkaline batteries, allowing you to use the MS-70CDR with confidence from rehearsal to the main stage. Alternatively, it can be powered from an AC adapter (sold separately) or via the USB bus.
ZOOM MS 70CDR Multistomp FX Pedal SPECIFICATIONS:
• Effect Types: 86
• Simultaneous Effects: 6
• Patch Memories: 50
• Sampling Frequency: 44.1kHz
• A/D Conversion: 24bit, 128times over-sampling
• D/A Conversion: 24bit, 128times over-sampling
• Signal Processing: 32bit floating point and 32bit fixed point
• Frequency Response: 20Hz to 20kHz +1dB -3dB (10kΩ load)
• Display: LCD
• Inputs: 2 x 6.35mm (¼”) phone jacks （L / R）
• Rated input level: -20dBm
• Input impedance: 1MΩ
• Outputs : 2 x 6.35mm (¼”) phone jacks （L / R）
• Maximum output level: +5dBm
• Output load impedance: 10kΩ or higher
• Batteries: 2 x AA/LR6 Batteries
• Battery Life – Mono Input: 7 hours of operation
• Battery Life – Stereo Input: 5 hours of operation
• USB: Bus Power
• Dimensions: D130.3 x W77.5 x H58.5mm
• Firmware Updates: Via USB
• Weight: 350g
• Included with the ZOOM MS-70CDR: Operation Manual & 2 x AA Batteries
• OPTIONAL AC Adapter: ZOOM AD-16 DC9V 500mA Centre Negative
• Warranty: Two Years
