ZOOM H2n HAND HELD DIGITAL AUDIO RECORDER
With 2GB SD Card and Steinberg Wavelab Software
The ZOOM H2n Handy Recorder is a revolution in portable recording, ZOOM’s most innovative handheld recorder to date, the ultra-portable H2n is packed with groundbreaking features that allows you to record pristine audio anywhere you go.
Across the widest range of applications, the H2n delivers the very best in stereo recording in a convenient, user-friendly package perfect for film and broadcast, journalism, podcasting, musical performance, songwriting, rehearsal and much more. The ZOOM H2n provides amazing recording.
ZOOM H2n Handy Recorder. A new standard in portable recording.

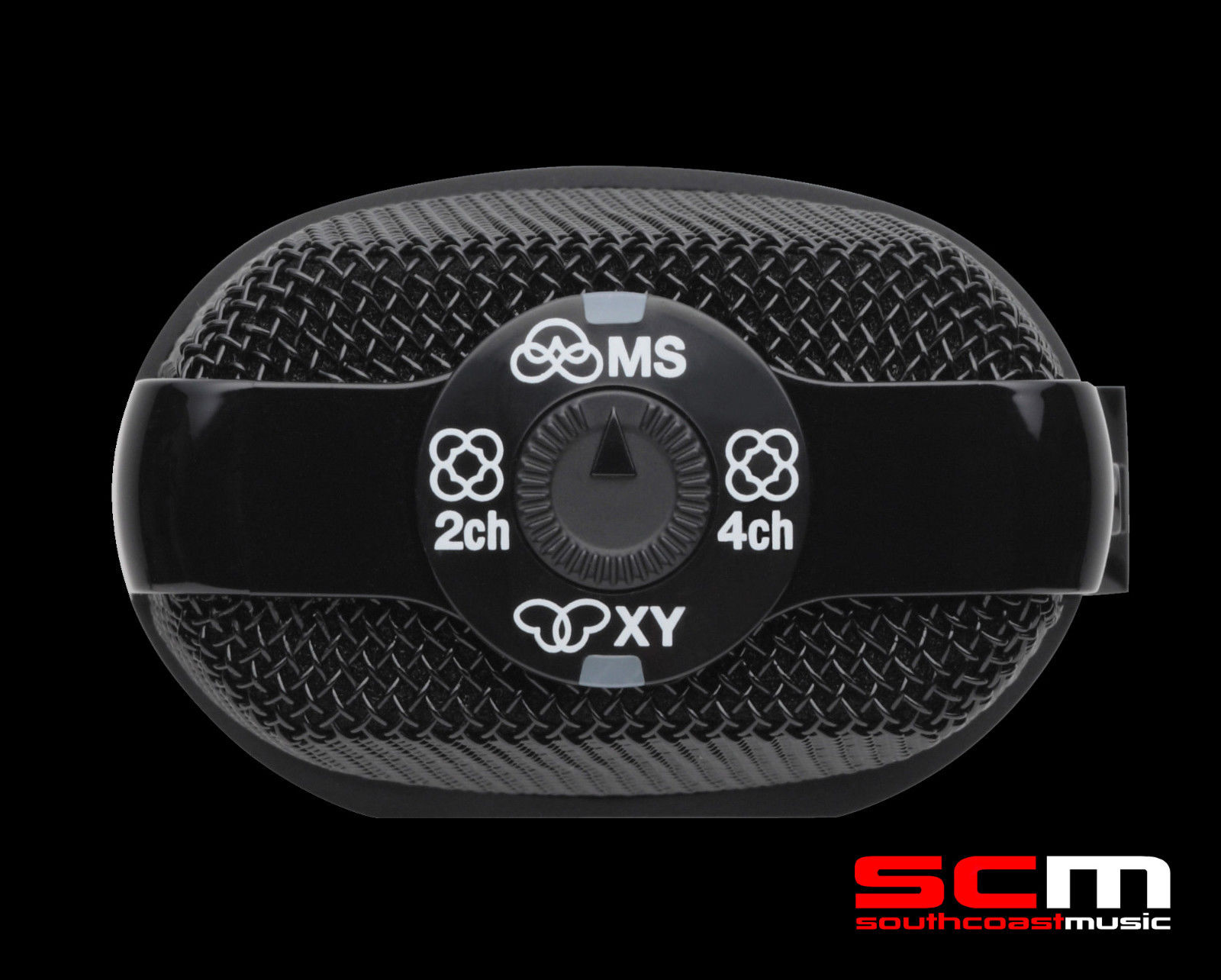

The H2n has an unprecedented 5 microphones built in, providing you with 4 selectable recording patterns to choose from. A simple dial on top of the recorder lets you switch between traditional XY stereo, 2-channel surround, 4-channel surround, and a mid-side stereo mode.
The mid-side mode allows you to adjust the width of your stereo field for terrific flexibility. When recording in RAW mode, you can even adjust the field after you’ve made a recording.
The H2n’s onboard 90° X/Y stereo condenser mics are arranged with the right and left mics on the same axis. This design ensures that the mics are always at the same distance from the sound source for perfect localisation and no phase shifting. The result is brilliant stereo recording with natural depth and superb imaging.
ZOOM H2n Five new mic capsules provide four unique recording modes
The H2n features ZOOM’s best microphones yet and is the only portable recorder with five mic capsules onboard. This design enables the H2n to offer four unique recording modes: Mid-Side (MS) stereo, 90° X/Y stereo, 2-channel and 4-channel surround sound.
ZOOM H2n Create stunning 360° surround sound recordings
Using the H2n’s Mid-Side and X/Y mics together, you can create stunning 360° surround sound recordings. Choose between 2-channel mode, which combines the Mid-Side and X/Y mics, and 4-channel mode, which records two separate stereo files, allowing you even more post-production capability. No matter which mode you use, you’ll get perfectly balanced, surround sound recordings.
ZOOM H2n Linear PCM recording at up to 24bit/96kHz quality
The H2n supports linear PCM WAV recording at 24bit/96kHz, which far exceeds standard CD-quality. You can select a high-resolution WAV format to faithfully capture the delicate reverberations of natural sounds and acoustic instruments. For web and e-mail distribution, you can choose from a dozen convenient MP3 formats to best suit your particular application.
ZOOM H2n Broadcast Wave Format support
The Perfect Tool for Journalists and Broadcasters – the ZOOM H2n supports the Broadcast Wave Format (BWF) used for broadcasting and other professional applications. With this format, each file can have a creation date/time stamp and up to 99 track marks (cue points) to help with file management and finding desired points in recordings. Pristine sound with Precise control.
ZOOM H2n Easy to Use Interface
With its cleverly designed user interface, the ZOOM H2n is remarkably easy to use. Critical controls are right at your fingertips making studio-quality recording a breeze. An arsenal of comprehensive functions, including Auto-Gain, a compressor/ limiter, Low-cut filter and more are also on hand to ensure that your recordings are of the highest quality.
ZOOM H2n Special playback features aid practice
Various playback functions make the H2n ideal for music and even language practice. By using the Variable Speed Playback, you are able to adjust the playback speed between 50% and 150% of the original.
The Key Control function allows you to adjust the pitch and the AB Repeat feature functions to loop a desired part. You can even use the H2n as a music player as it supports playback of a single track or all tracks in a folder once or repeatedly.
The on-board tuner and metronome are also handy when practicing with an instrument.
ZOOM H2n Edit audio onboard
Audio can be edited on the H2n itself without having to connect to a computer. You are able to Divide recorded files and Normalise them to maximise their volume. You can also use the MP3 encoder to convert WAV files to MP3 files.
ZOOM H2n Data recovery function protects against unexpected errors
You will never have to worry about losing recorded data to unexpected errors again. The ZOOM H2n has you covered with its new data recovery function. Whether you experience battery loss or an accidental power-down, this feature will automatically restore your data the next time the H2n is powered on…pure genius.
ZOOM H2n 20 hours of battery life
The H2n provides over 20 hours of continuous operation on just two standard AA alkaline batteries! This astonishing feature enhances the H2n’s flexibility and convenience. In addition, the H2n can also operate using an AC adapter, which is included in the optional APH-2n Accessory Pack. If you simply wish to purchase an AC adapter, we generally have those in stock at all times – contact us for pricing, availability and delivery options.

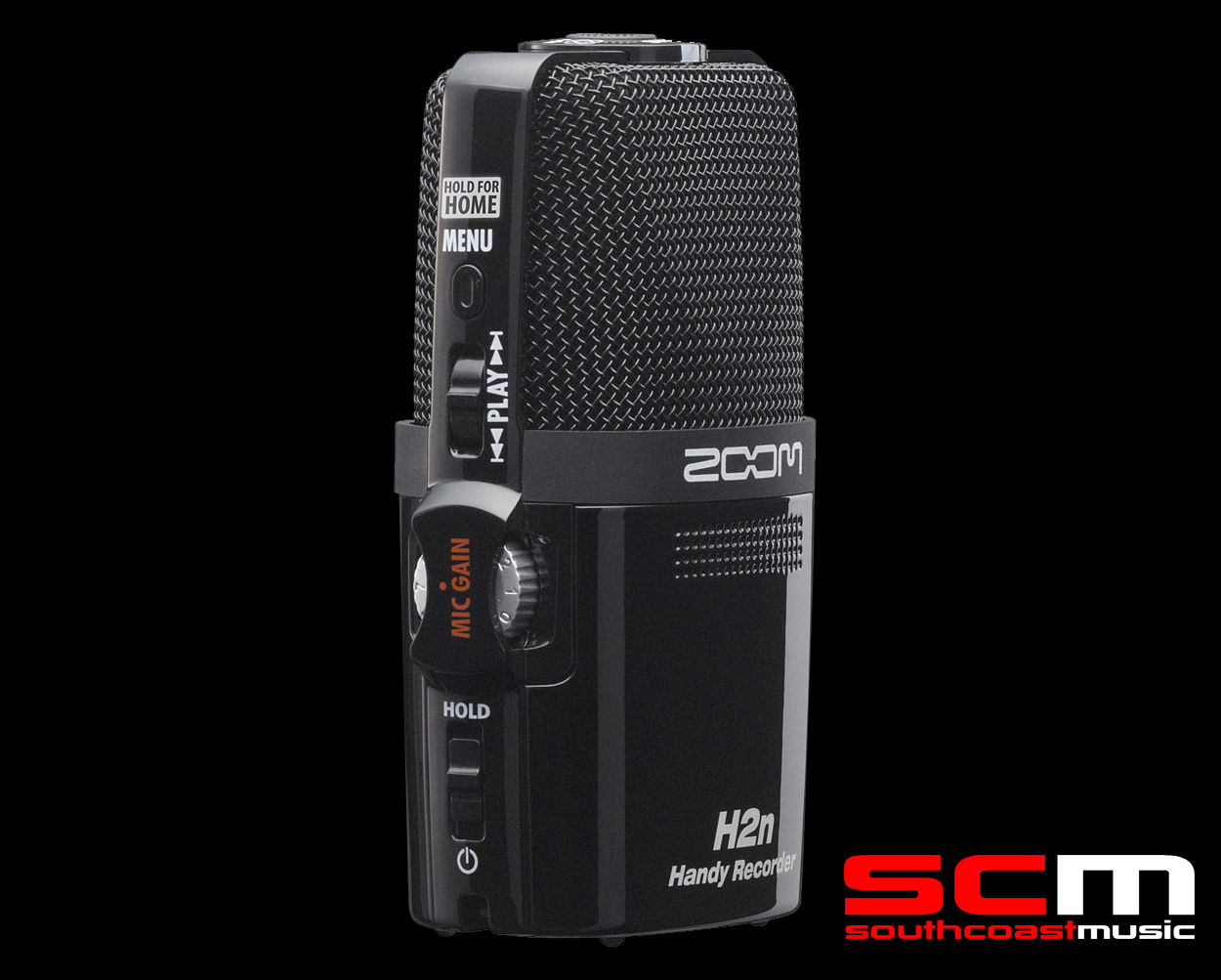

ZOOM H2n Analog Mic Gain for precision volume control
Digital volume controls offer too much or too little gain, with no middle ground. The H2n’s analog Mic Gain wheel allows you to dial-in the perfect amount of gain for any given application.
ZOOM H2n Onboard reference speaker and stereo output
The ZOOM H2n’s built-in reference speaker lets you know your recordings have been captured. With its 1/8-inch stereo output, you can also playback your recordings on your home audio system or listen to your masterpiece using your favorite pair of headphones.
ZOOM H2n 32GB SDHC card support
The ZOOM H2n uses SD/SDHC cards and can accommodate up to a 32GB SDHC card for over 50 hours of recording time using the 16-bit/44.1kHz WAV format. With 128kbps MP3 format, you get an incredible 555 hours of stereo recording. The H2n comes with a 2GB SD card to get you started.
ZOOM H2n LCD screen is bigger and brighter
The H2n’s 1.8-inch backlit LCD display (128 x 64 resolution) provides crystal-clear monitoring and makes it simple to navigate all of the unit’s functions.
ZOOM H2n USB 2.0 Hi-Speed allows for rapid file transfer
Use the H2n’s High-Speed USB 2.0 interface to transfer files to your Mac or PC. Once your recordings are on your computer, you can easily store, edit, playback and share your favorite creations. You can even use the H2n as a USB microphone, letting you record directly to your computer.
ZOOM H2n WaveLab LE software included for editing and mastering
Steinberg’s WaveLab LE can be used for audio editing and professional-quality mastering. By using its precise waveform editing and high-quality processing, you can refine your recordings into finished works. Furthermore, you can freely download the “MS Decoder”, a plug-in for mid-side decoding. Use this to convert mid and side signal data into left and right signals. Using the Mid and Side faders, you can adjust the stereo image as you like.
ZOOM H2n Features
o Five built-in microphones and four recording modes: Mid-Side (MS) stereo, 90° X/Y stereo, and both 2-channel and 4-channel surround
o Analog-type input gain control
o Auto Gain provides three preset recording levels
o Stereo ⅛” Mic/Line In mini phone jack with Plug-in power (2.5V)
o Stereo ⅛” Phone/Line Output jack with dedicated volume control
o Built-in reference speaker for in-the-field monitoring
o Large 1.8 inch backlit LCD display
o Records directly to SD and SDHC cards up to 32GB
o Supports up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
o Auto-record and Pre-record features
o WAV to MP3 conversion
o Internal mixdown: four-track surround to stereo
o Up to 99 marks per recording
o Built-in effects, including compression/limiting and low-cut filtering
o Onboard MS decoding
o Normalise and Divide functions
o Chromatic tuner and metronome
o Loop playback with user-defined start and stop points
o Variable playback speed, from 50% to 150% for phrase training
o Variable pitch without affecting playback speed
o USB port for data exchange to and from computer and use as a USB microphone
o 2-in/2-out USB audio interface for PC/Mac computers
o SD card reader function
o Data recovery function automatically saves data if power fails or card is removed
o Mounts directly to tripod or DSLR
o Runs on only 2 standard AA alkaline or NiMH rechargeable batteries, or AC adapter (AD-17, USB to AC type)
o Over 20 hours of operation with 2 AA alkaline batteries
ZOOM H2n ships with these items:
o Operation manual
o SD card (2GB)
o 2 AA batteries
o Steinberg Cubase LE software download
o Steinberg WaveLab LE sofware download
Optional ZOOM H2n Accessory Package includes:
o Remote Control with Extension Cable
o Windscreen
o AD-17 AC Adapter (USB type)
o USB cable
o Adjustable Tripod Stand
o Padded-Shell Case
o Mic clip adapter.
