Zoom G6 Multi-Effects Processor Pedal for Guitarists with Expression Pedal
T H E F U T U R E O F P E D A L S H A S A R R I V E D
Jaw dropping effects combined with powerful amp modeling, the G6 gives you more sonic possibilities than ever before.
• Integrated pedal board with 6 stomp switches and expression/volume pedal
• Ultimate Zoom FX processor technology with custom amp modeling
• 4.3˝ color LCD touch-screen interface
• Chain up to 9 effects or 7 effects + amp emulation
• IR load function for speaker cabinet simulation
• New Play Mode Footswitch provides instant access to different play modes
• 68 rhythm patterns
• Looper with loop time up to 2 hours with SD card installed
• Built-in USB audio interface (2-in / 2-out)
• Compatible with Zoom Guitar Lab
• Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab app (iOS)

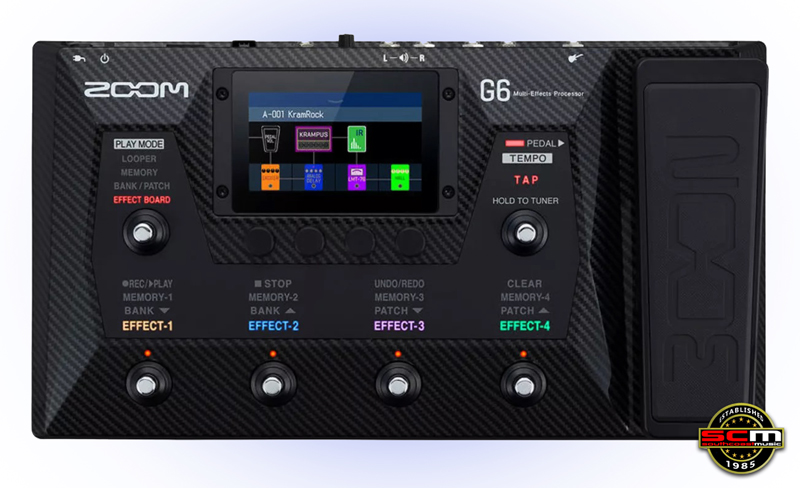

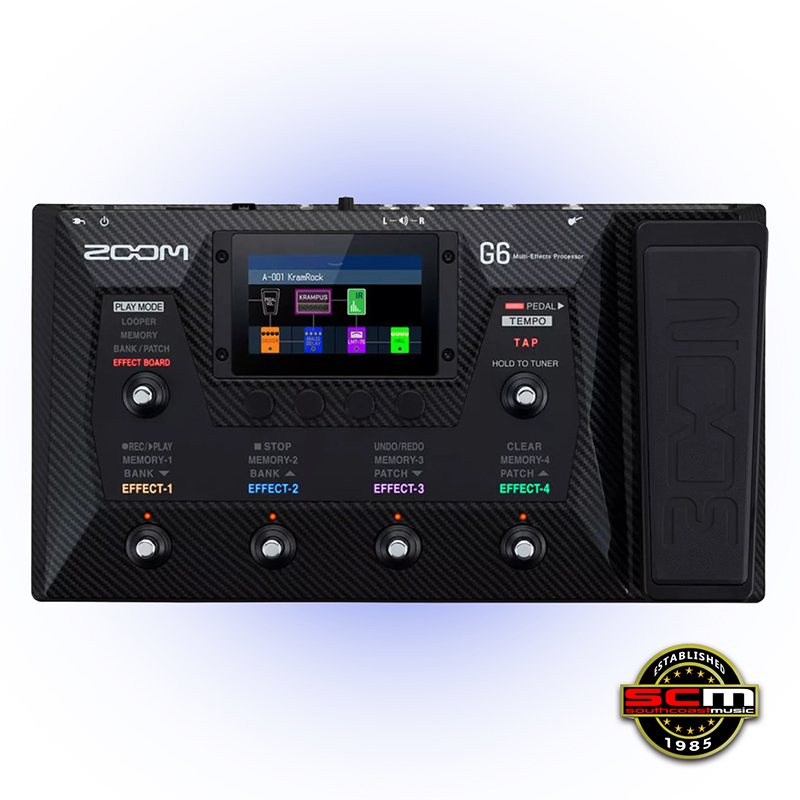

The Zoom G6 Guitar Multi-Effects Processor is a game changer. The G6 is a digital pedalboard with an incredible range of effects that include 22 amp emulations and 70 cabinet impulse responses. You can also load and use your own impulse response data and impulse response data from third parties. Add to the mix a 2-in / 2-out audio interface, and you have a board that can serve you whether you’re playing live through an amp, routing sound to the house PA, or recording to a DAW.
With six pedal switches and a built-in expression pedal, the G6 lets you fly around your effects intuitively – just like an analog board. There are 68 built-in rhythm parts on hand for solo performances and with an optional SD card plugged in, you have over 2 hours of looping.
Expand your palette of sounds with Zoom’s free Guitar Lab software for Mac and Windows, or the Handy iOS app. You can download new effects, amp and cabinet emulators, as well as exclusive patches from a diverse and growing list of pro guitarists.
The Zoom G6 multi-effects modeling floorboard brings you six custom-crafted amp models and three decades’ worth of modulations, drives, delays, and reverbs in a backpack-friendly floor unit. Amps, stomps, cabs, loops, backing tracks — with the G6, everything you need for a real-world gig setting is right at your feet.
There’s plenty of DSP on tap, enabling you to chain up to nine effects along with amplifier emulation. Navigating the G6 is a breeze, thanks to its customisable workflow and smartphone-class 4.3-inch touchscreen. Cycling Modes via the selector switch reassigns each of the four lower switches and their labels to your new workflow. This makes it extremely easy to bounce between looper, user presets, and pedalboard modes.
The configurable expression/volume pedal on the right side to give you real-time manipulation of your effects and output.
Other player-essential features you’ll find in the Zoom G6 include a 45-second looper (expandable up to more than 2 hours with an optional SD card), 68 built-in rhythm patterns for solo performances, an effects loops for peerless amp and stomp integration along with an integrated 2-in/2-out USB audio interface for direct recording straight into your DAW.
Handy Guitar Lab App
Connect the G6 directly to the Handy Guitar Lab app via Bluetooth. Using the optional BTA-1 adaptor wirelessly connect your phone as a secondary interface for your G6.
*On devices with a 4-inch screen, App isn’t displayed properly.
Zoom G6 Specifications
• Number of Simultaneous Effects: 9
• Patch Memory: 240 User Patches
• Sampling Rate: 44.1 kHz
• A/D Conversion: 24-Bit with 128x Oversampling
• D/A Conversion: 24-Bit with 128x Oversampling
• Signal Processing: 32-Bit
• Frequency Response: 20 Hz to 20 kHz
• Display: 4.3″ TFT Color LCD (480 × 272 pixels)

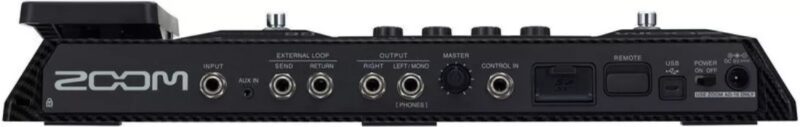

• Instrument Input: 1 x 6.35mm (1/4″) Phono Jack
• Rated Input Level: -20 dBu
• Input Impedance: 550 Kilohms
• Return: 1 x 6.35mm (1/4″) Phono Jack
• Rated Input Level : -20 dBu
• Input Impedance: 1 Megohm
• AUX Input: 1 x 3.5mm TRS (Stereo) Mini Jack
• Rated Input Level: -10 dBu
• Input Impedance (Line): 10 Kilohms
• Right Audio Output: 1 x 6.35mm (1/4″) Phono Jack
• RH Maximum Output Level: +11.4 dBu (Output Impedance 10 Kilohms or Higher)
• Left Audio Output L/Mono (Head Phones): 1 x 6.35mm (1/4″) Phono Jack
• LH Maximum Output Level: +11.4 dBu (Output Impedance 10 Kilohms or Higher)
• Send: 1 x 6.35mm (1/4″) TRS Phono Jack
• Maximum Output Level: +11.4 dBu (when Output Impedance 10 Kilohms or Higher)
• Headphone Output: 24 mW + 24 mW (at 32-Ohm Load)
• S/N Ratio: 123 dB
• Left and Right Output Noise Floor: -99.3 dBu
• Send Noise Floor: -99.0 dBu
• Control Input: FP02M Expression Pedal Input
• Power Adapter: AC Adapter: 9 VDC (negative tip), 500 mA (ZOOM AD-16) included
• USB Port: USB 2.0 Micro-B
• Guitar Lab: USB 1.1 Full Speed
• Audio Interface: USB 2.0 Full Speed, 44.1 kHz / 32-Bit, 2-In, 2-Out
• SD Card Standards: Cards Supporting SD/SDHC/SDXC Specifications (Class 10 or Higher)
• Looper: 44.1 kHz / 16-Bit Stereo WAV
• IR: 44.1 to 192 kHz, 16- / 24- / 32-Bit WAV
• Dimensions: L22.8 x W41.8 x H6.5 cm (9 x 16.5 x 2.6″)
• Weight: 1.9kg / 4.3 lb
• Packaged Weight: 3kg / 6.745 lb
• Boxed Dimensions: L54.35 x W32.5 x H9.4cm / 21.4 x 12.8 x 3.7″
