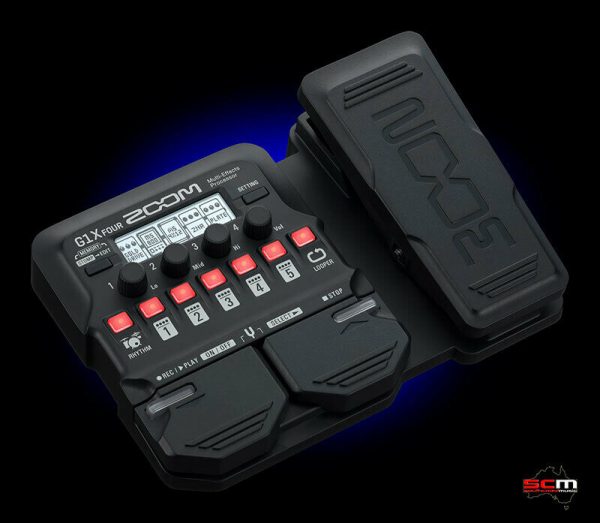

ZOOM GX1 FOUR
MULTI-EFFECTS WITH BUILT-IN EXPRESSION PEDAL
ZOOM GUITAR LAB SOFTWARE INCLUDED
● G1 FOUR offers over 60 built-in effects
● G1X FOUR offers over 70 built-in effects
● 13 amp models for simulating classic rigs
● Up to 5 effects can be used simultaneously, chained together in any order
● Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
● ZOOM Guitar Lab software for creating, editing and managing effects and patches
● 68 built-in rhythm patterns which can be used in conjunction with the Looper
● 50 memory locations for storing user-created patches
● Auto Save function for automatic saving of all patch parameters
● Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
● Input jack accepts standard mono guitar cable (both active and passive instruments supported)
● Auxiliary input jack for connection of personal music players
● Output jack for connection to amp or headphones
● Runs on 4 AA batteries, with alkaline battery life of 18 hours
● USB port for firmware updates, power and connection to ZOOM Guitar Lab
The Zoom G1X FOUR features over 70 killer effects and amp models along with a looper and drum machine. Additionally, you can access ZOOM Guitar Lab’s additional library of downloadable effects. Plug in and be amazed!
X IS FOR XPRESSION
The Zoom G1X FOUR comes with ZOOM’s expression pedal which provides control over effects such as volume, wah, delay and pitch.
SOUNDS THAT INSPIRE
The Zoom G1X FOUR features more than 70 traditional and boutique effects, including aring modulator, pitch-shifting delay and even an amazing sitar simulation.
YOUR FAVOURITE GUITAR AMPS AND CABINETS
The Zoom G1X FOUR is fully loaded with pristine models of 13 classic amps and cabinets such as Fender, Marshall, Orange and more*, guaranteed to bring big stage sound wherever you go.
ZOOM GUITAR LAB SOFTWARE – INCLUDED FOR FREE!
With the included ZOOM Guitar Lab software you can explore an endless world of patches, effects and more. With its ability to manage and backup all of your patches, you can experiment and create endless combinations.
DRUMS INCLUDED!
Play along with 68 great-sounding rhythm patterns in different time signatures, including Rock Beats, Funk, Jazz, a Waltz and more!
GET LOOPY
The built-in looper can record up to 30 seconds of playing, allowing you to create dynamic, multi-part arrangements.
AUTO PATCH BACKUP
Your patches and level settings are instantly backed up when using the Auto Save function, ensuring you never lose your latest creation.
PERFORM LIVE
Seamlessly switch up your sounds during live shows using either of 2 performance modes.
● PRESELECT mode: Lts you jump from patch to patch without affecting the patch your currently playing.
● STOMP mode: Lets you turn individual effects on and off with the tap of your foot.
OFF THE FLOOR
The Zoom G1X FOUR’s control panel is also designed for hands-on, desktop use. Dial in tones and adjust level settings with absolute precision to craft your perfect sound.
POWER OPTIONS
The Zoom G1X FOUR runs on 4 x AA batteries. Just four Alkaline batteries can provide up to 18 hours of continous power. Alternatively, it may be powered using the optional Zoom AD-16 AC adapter or via USB bus power.
THE ONLY LIMITATION IS YOUR CREATIVITY . . .
What’s in the Box?
● G1 Four or G1X Four Guitar Multi-Effects Processor
● Quick Guide
● AA Batteries (x4)
● Patch List
ZOOM GX1 FOUR SPECIFICATIONS
● Pedal Type: Multi Effects with Expression Pedal
● Processing: Digital
● Presets: 50 User, 40 Factory
● Number of Effects: Over 70
● Maximum Number of Simultaneous Effects: 5
● Rhythm Patterns: 68 Rhythm patterns
● Effects Types: Chorus, Vibrato, Phaser, Flanger, Pan, Distortion & Rotary Amp
● Amp Models: 13 Amps
● Cabinet Models: 16 Cabinets
● Maximum Delay Time: 3000ms
● Looper: Up to 30 seconds
● Instrument Input: 1 x 3.35mm (1/4″)
● Rated Input level: -20 dBu
● Input Impedance (line): 470 kΩ
● AUX Input: 1 x 3.5mm TRS (1/8″)
● Rated Input Level: -10 dBu
● Input Impedance (line): 1kΩ
● Audio Line/Headphone Output: 1 x 6.35mm TRS (1/4″)
● Maximum output level: Line +2 dBu (10 kΩ or more output impedance)
● Headphones 17 mW + 17 mW (32Ω load)
● USB: 1 x Type Micro-B
● Expression Control: Built-in Pedal
● Included Software: Guitar Lab 4.0 macOS 10.12 & Windows 7 or later
● External Power Source: Zoom AD-16 AC adapter (sold separately)
● USB bus power: Yes
● Battery Power: 4 x AA Alkaline Batteries
● Power Usage: 500mA
● Sampling frequency: 44.1 kHz
● A/D conversion: 24-bit, 128 x oversampling
● D/A conversion: 24-bit, 128 x oversampling
● Signal Processing Bit Rate: 32 bit
● Display: 128 x 32 dot matrix LCD
● Dimensions: D156 mm x W216 mm x 52 mm (H)
● Weight: 610 g (excluding batteries)
