YAMAHA STAGEPAS 600BT PORTABLE PA SYSTEM
• Trusted Yamaha Performance and Reliability
• 680W (340W + 340W) power output
• High quality speakers (LF: 10″ woofer/ HF: 1.4″ voice coil compression driver)
• Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
• Bluetooth® audio streaming
• 1-Knob Master EQ™ with virtual bass boost
• High resolution SPX digital reverbs (4 types, parameter control)
• Onboard feedback suppressor
• Great-sounding 3-band channel EQ
• Switchable stereo/ mono inputs
• Hi-Z (high impedance) inputs
• Phantom power
• Monitor and Subwoofer outputs
• Reverb On/Off Footswitch Output (footswitch optional)
• Five Year Warranty

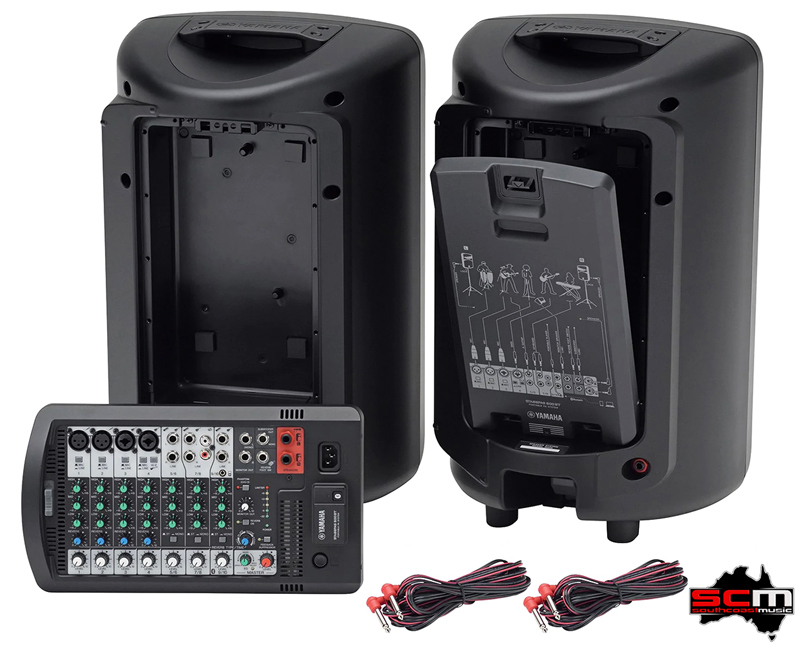

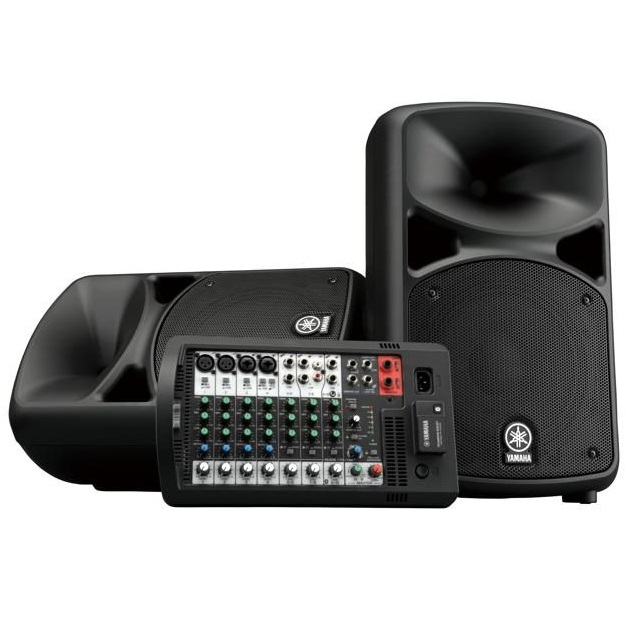

The YAMAHA STAGEPAS 600BT is a Portable PA system featuring two sleek, light weight speakers and a detachable powered mixer, along with one pair of speaker cables and a power cord, giving a complete, extremely portable sound reinforcement solution.
It doesn’t get any better and easier to use than STAGEPAS when it comes to portable live sound solutions. YAMAHA have an impressive track record at the highest levels of the Pro Audio world and a lot of their cutting edge technology can be found in the STAGEPAS600BT.
With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth® wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal soundscape.
The YAMAHA STAGEPAS 600BT includes BlueTooth connectivity, on-board SPX effects and feedback suppressor. Other professional features include phantom power, 1-knob Master EQ and dedicated monitor and subwoofer outputs. The YAMAHA STAGEPAS 600BT is a gutsy performer – we love it and YAMAHA have backed it up with a Five Year warranty.
YAMAHA STAGEPAS 600BT PA System Specifications:
• Speaker Configuration: 2 x 2-Way Loudspeaker
• Number of Input Channels: 10
• Amplifier Power Rating: 680 Watts @ 4 Ohms
• Speakers Enclosure Type: Bass-Reflex
• HF Driver: 35.6mm (1/4″) Compression Driver
• HF Voice Coil: 3.56cm (1/4″)
• LF Driver: 25cm (10″) Woofer
• EQ Signal Processing / LF Shelf at 100 Hz
• EQ Signal Processing / MF Peak at 2.5 kHz
• Effect Type: Digital Reverb
• Frequency Range: 55Hz to 20kHz -10 dB
• Maximum SPL: 129dB SPL
• Coverage Angle: 90° H x 60° V
• Mic/Line Input: 2 x XLR 3-Pin
• Mic/Line Input: 1 x Combo XLR-6.35mm (1/4″) TRS
• Mic/Line/Hi-Z Input: 1 x Combo XLR-6.35mm (1/4″) TRS
• TRS Line Inputs: 6 x 6.35mm (1/4″) TRS Line Inputs
• Coaxial Line Input: 1 x Stereo RCA Coaxial Line Input
• AUX/Line Input: 1 x 3.5mm (1/8″) TRS
• Speaker Outputs: 2 x 6.35mm (1/4″) TS
• Monitor Outputs: 2 x 6.35mm (1/4″) TRS
• Subwoofer Output: 1 x 6.35mm (1/4″) TRS
• Footswitch Input: 1 x 6.35mm (1/4″) TRS (Footswitch Optional)
• Phantom Power: +30 V
• Wireless Connectivity: Bluetooth Audio Streaming
• Bluetooth Type: 4.1
• Bluetooth Profile: A2DP 1.2
• Bluetooth Range: 10m (32.8′)
• AC Input Power: 240 VAC 50Hz
• Power Consumption: 35watts (Idle) / 100watts (1/8 Power)
• AC Power Connector: IEC
• Transport Options: Handle (Top)
• Speaker Stand Mount: 1.4″ / 35mm (1.4″) Pole Socket
• Speaker Dimensions: 33.5 x 54.5 x 31.9cm (13.2 x 21.5 x 12.6″)
• Mixer Dimensions: 34.8 x 19.7 x 13.5cm (13.7 x 7.8 x 5.3″)
• System Weight: 25.6kg (56.4 lbs)
• Warranty: Five Years
