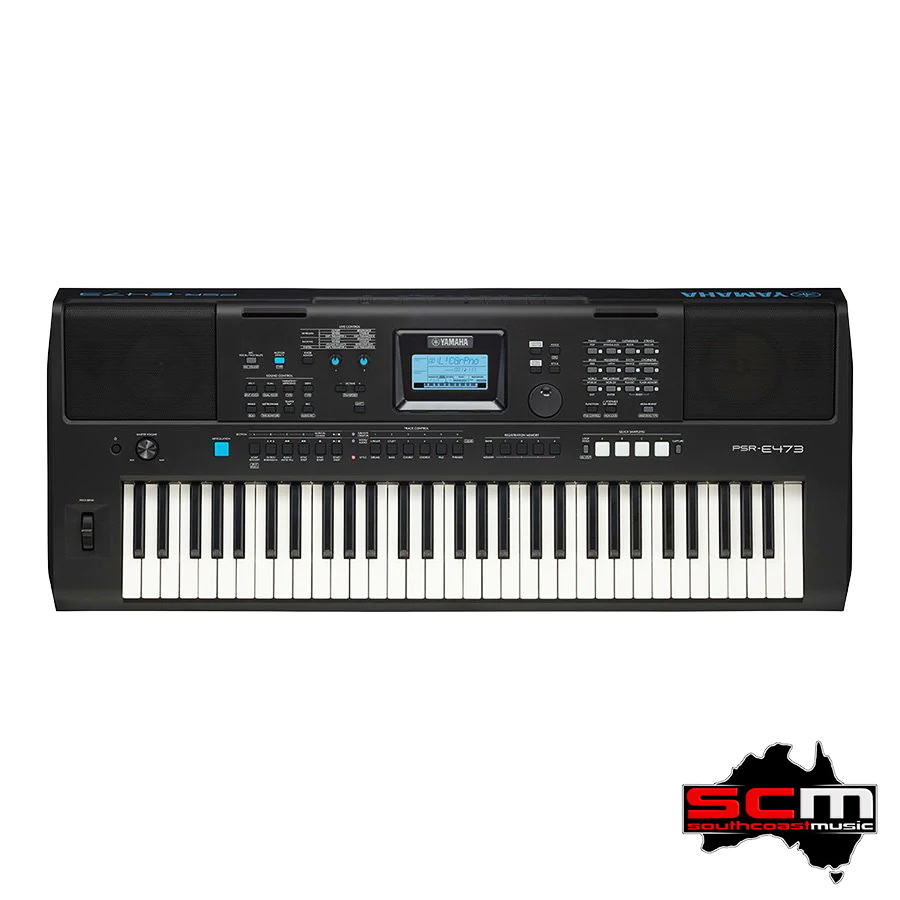

YAMAHA PSR-E473 61-NOTE TOUCH RESPONSE PORTABLE KEYBOARD
• 820 Voices and Super Articulation Lite Voices
• 290 Styles
• 2 channels/41 types of DSP insertion effects
• Quick Sampling
• Groove Creator
• Live Control Knobs, Motion Effect functionality, pitch bend wheel
• Mega Boost
• Direct Category Access buttons
• USB Audio Recording/Interface
• Mic input and vocal effects
• Individual L/R outputs
• Five Year Warranty
A revolution in portable music
The touch-sensitive keyboard and powerful sound engine of the PSR-E473 bring together superb sound and great feel in an all-new portable instrument.
Yamaha’s 400 series keyboards have always been category killers and the all new PSR-E473 is jam packed with incredible features for the ambitiously creative creature in you.
61 touch-sensitive keys and a class leading sound engine combine to deliver superb sound and great feel.
A microphone input with studio quality vocal effects connect into a new, simpler sampling workflow utilising four new sample pads on the face panel. Alongside the endless sampling possibilities, there are new, updated sounds and styles, and a revamped control surface to maximise ease of use and possibilities for live performance.
As well as 240VAC power, there is also the ability to use battery power, allowing greater flexibility of location.
The PSR-E473 is an excellent all-round 61-key keyboard that bridges the gap between a starter instrument and workstation. While its immediate functionality makes it easy for beginners to navigate, by delving a little deeper it also represents an affordable and inspiring alternative for experienced players.
The latest PSR-E473 features a newly developed tone generator that delivers stunning improvements in sound quality as well as high quality studio quality effects.
SOUND LIKE A PRO
The PSR-E473 boasts the same pro-quality voices found in Yamaha’s high-end models and expands on previous generations with an increased internal storage capacity to provide more, higher-resolution instrument Voices. Enjoy 820 realistic, expressive instrument sounds with everything from contemporary to world-music voices.
SUPER ARTICULATION LITE
The PSR-E473 is equipped with Super Articulation Lite, a function that realistically simulates the distinct ways each instrument is played. For example, the scratch sound of a distorted electric guitar or the harmonics of a nylon-string guitar.
STYLES
Experience the thrill of playing in your very own band with 290 automatic accompaniment Styles including rock, dance, and jazz as well a wide range of musical genres from around the world. The Styles respond to your left hand with just the right rhythms, bass, and chords.
WORLD CONTENT
Enjoy Voices and Styles that enable you to emulate music from anywhere around the world. No matter what Style you enjoy, it is loyal and authentic to the country or region where that genre originated.
DSP EFFECTS
The PSR-E473 is one of the only models in the PSR-E series to feature two channels for insertion effects. Equipped with the latest LSI tone generator, this instrument delivers high-quality effects previously available only with high-end models.
EXPRESS YOURSELF
Yamaha have completely revamped the control panel and LCD, phasing out the numeric keypad and adding Direct Category Access buttons. With dedicated buttons for Quick Sampling and the innovative Motion Effect functionality, you can intuitively express the sounds you’re hearing in your head.
CONNECT AND SHARE
A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec’n’Share app to share your music with the world, and hook into PA systems to perform on stage.
USB AUDIO/RECORDING INTERFACE
Use the USB To Device port to record and play back audio files of your music from USB flash drives.
Use the USB To Host port to send and receive audio and MIDI data to and from computers and smart devices with studio-quality.
YAMAHA PSR-E473 SPECIFICATIONS
• Colour/Finish: Black
• Dimensions: W992mm (39.0625″) x H136mm (5.375″) x D404mm (15.875″)
• Weight: 7.0 kg (not including batteries)
• Number of Keys: 61
• Touch Response: Yes (Soft, Medium, Hard, Fixed)
• Pitch Bend Wheel: Yes
• Articulation Switches: Yes
• Control Knobs: 2
• Display: Backlit LCD
• Panel Language: English
• Tone Generation Technology: AWM Stereo Sampling
• Polyphony: 64 notes (max)
• Number of Preset Voices: 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
• Featured Voices: 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
• General MIDI Compatibility: Yes
• XGlite: Yes
• Digital (DSP) Effects: DSP1: 41 types, DSP2: 12 types
• Digital Reverb: 12 types
• Digital Chorus: 5 types
• Master EQ: 4 types
• Dual/Layer Function: Yes
• Keyboard Split Function: Yes
• Melody Suppressor: Yes (with pan adjustment)
• Crossfade: Yes (between Internal Sound and External Audio)
• Number of Preset Accompaniment Styles: 290
• Fingering: Multi finger, Smart Chord
• Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
• One Touch Setting (OTS): Yes
• Expansion Style: 10
• Style File Format: (SFF)
• Groove Creator Presets – Number of Grooves: 35
• Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)
• Number of Preset Songs: 30
• Recording – Number of Songs: 10
• Number of Tracks: 6 (5 Melody + 1 Style/Groove Creator)
• Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded)
• Compatible Data Format – Playback: SMF (Formats 0 & 1)
• Recording: Original File Format (SMF 0 conversion function)
• USB Audio Recorder: Yes
• USB Audio Recorder Recording Time (max.): 80 minutes (approx. 0.9 GB) per Song
• USB Audio Recorder Playback Format: WAV (44.1 kHz, 16 bit, stereo)
• USB Audio Recording Format: WAV (44.1 kHz, 16 bit, stereo)
• Quick Sampling: Yes
• Sampling Type: One-shot, Loop
• Samples (Preset/User): 4
• Sampling Time: Approx. 9.6 sec
• Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
• Sampling Format: Original File Format (16 bit, stereo)
• Sampling Rate: 44.1 kHz
• USB audio interface: 44.1 kHz, 16 bit, stereo
• Registration – Number of Buttons: 4 (x 8 banks)
• Metronome: Yes
• Metronome Tempo Range: 11 – 280 bpm
• Transpose Function: Yes
• Transpose Range: -12 to 0, 0 to +12
• Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
• Octave Button: Yes
• Scale Type: 5 types
• PIANO Button: Yes (Portable Grand Button)
• Mega Boost Function: Yes
• Motion Effect: Yes (57 types)
• Harmony/Echo Function: Yes (26 types)
• Arpeggio Function: Yes (152 types)
• Internal Memory Storage Capacity: Approx. 1.72 MB
• External Drives: USB flash drive
• AC Power Connectivity: DC IN 12 V
• AUX IN Connectivity: 1 x 3.5mm TRS Stereo Mini Jack
• Headphones: 1 x 6.35mm TRS Stereo Phono Jack
• Sustain Pedal Input: Yes (pedal not included)
• USB TO DEVICE: Yes
• USB TO HOST: Yes
• Audio OUTPUT: 2 x 6.35mm Standard Phono Jack
• Microphone Input: 1 x 6.35mm Standard Phono Jack
• Amplifiers: 6 W + 6 W
• Speakers: 2 x 12 cm
• AC Power Supply: AC Adaptor (included)
• Battery Power: 6 x AA size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries
• Power Consumption: 9 W (When using AC adaptor)
• Auto Power Off Function: Yes
• Auto Power Off Settings: Off/5/10/15/30/60/120 (minutes)
• Music Rest: Yes
• Song Book: Yes – Digital Download from Yamaha web site
• Warranty: Five Years
