YAMAHA EMX5 POWERED MIXER
The new EMX5 Powered Mixer from Industry Giants, Yamaha has been specifically designed for clubs, schools, houses of worship musicians, performers and public speakers who require premium sound quality along with convenient operation and are ready to take their sound reinforcement to the next level.
Despite the compact construction, only speakers, cables and a microphone are required to configure a fully functioning, extremely portable, reliable and great sounding PA system with all the tools you need to mix, process and deliver your audio just the way you want, anytime and anywhere you want.
o Powerful & High Efficiency Class-D Amplifier
o Robust But Extremely Portable Design
o Easy Setup, Easy Operation
o Comprehensive Range of Input & Output Channels
o 1-knob Master EQ
o Onboard Feedback Suppressor
o 3-band Equalizer Control
o Flex 9 Graphic Equalizer
o 1-knob Compression (COMP)
o Rack-Mountable (with optional RK-EMX7 Rack Mount kit – sold separately)
o Easy to use Professional SPX Digital Effects and Signal Processing
o Flexible Speaker Connectivity
o Internal Universal Power Supply
o Exclusive Australia-Only Five Year Warranty
o Powerful & High Efficiency Class-D Amplifier
The EMX5 features a high-efficiency Class-D power Amplifier. Despite incredibly low power consumption and surprisingly low weight, the EMX5 Power Amps are capable of very high volume output delivering 1260W (2 x 630W) of output power. Onboard overload protection is built-in to improve reliability, prolong component life and performance quality.
o Robust But Extremely Portable Design
The EMX5 features a robust and portable design with a rugged, impact-resistant, powder-coated metal chassis geared towards extended operation and life on the road. Large handles on the front and back of the enclosure help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport as well as adding to overall portability.
o Easy Setup, Easy Operation
With intuitive, user-friendly architecture, the EMX5 can be setup and operated quickly and easily by users with a fundamental understanding of sound reinforcement. A versatile enclosure design allows users to choose from a variety of vertical or horizontal placements depending on the type of application. Whether used in a tabletop, floor or installation setting, the EMX5 has been designed to get the job done.

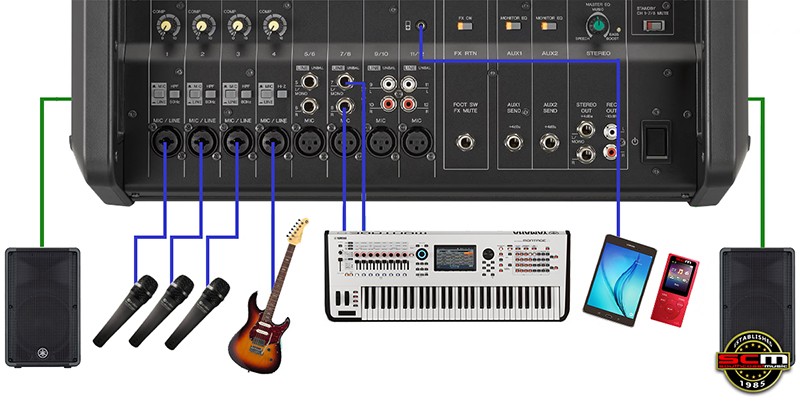

o Comprehensive Range of Input & Output Channels
The EMX5 is equipped with four mono input channels and four mono/stereo input channels, allowing up to 8 microphones and line-level devices such as keyboards and portable playback device to be connected to each channel. Additionally, channel 4 can be used with Hi-Z inputs to connect instruments such as guitars or basses directly. The EMX5 is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.
o 1-Knob Master EQ™
EMX5’s 1-Knob Master EQ™ lets you apply optimised EQ settings with the simple turn of a knob. The SPEECH setting is geared towards meetings, seminars, or conferences with a limited lower end for clear, defined speech; MUSIC offers a more balanced sound tailored to acoustic or band performances; and BASS BOOST is ideal for DJ performances or audio playback that puts a priority on emphasising the base sound.
o Feedback Suppressor
Few things make a live performance or speaking engagement take a negative turn like the sudden, uncomfortable, and often embarrassing howling of unwanted feedback. The Yamaha EMX5 is equipped with a Feedback Suppressor that utilises a unique Yamaha digital technology with a seven-band notch filter to instantly eliminate annoying feedback with the single switch of a button.

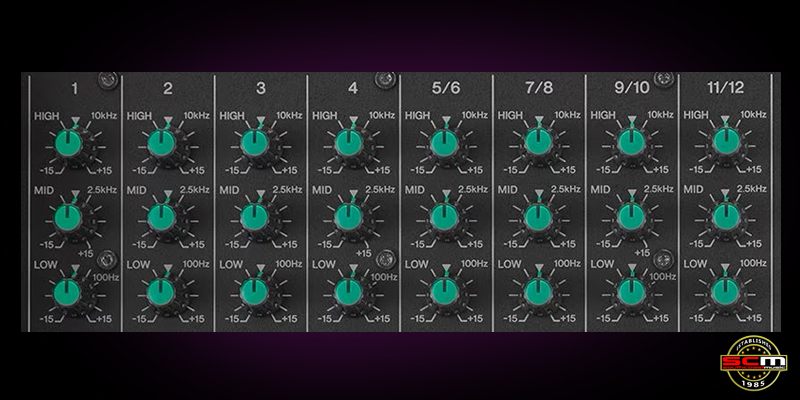

o 3-band Equalizer Control
With individual knobs you can adjust the [HIGH], [MID], and [LOW] audio frequencies. Instantly adjust each individual channel to optimise the sound of the input device. Simply turn the appropriate control to either amplify (boost) or attenuate (cut) the corresponding frequency band.

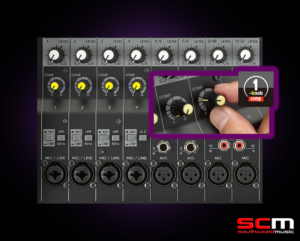

o One Knob Compression (COMP)
The EMX5 is equipped with the popular 1-knob COMP function used with great success in the Yamaha MGP and MG series models. By simply operating a single control, it is possible to get optimal compression for vocals and instruments. As the [COMP] control is turned to the right, the threshold, ratio and output gain are adjusted simultaneously.
o Rack-Mounting Option
Your EMX5 can be mounted into a 19-inch rack by using the RK-EMX7 Rack Mount kit (sold separately).
o Easy to Use Professional SPX Effects and Signal Processing
The EMX5 is equipped with a powerful and easy to use DSP section that provides a total of 24 different effects that are in the same league as the famed Yamaha SPX effect processor series used by professionals. It is possible to add reverb and delay effects that simulate the sound of different performance environments, such as concert halls and small clubs.
o Flexible Speaker Connectivity
The EMX5 is equipped with speaker jacks which can be used with both 6.3mm (1/4″) TS phono and speakON plugs.
o Internal Universal Power Supply
The EMX5 has a highly-efficient internal universal power supply for worry-free operation – even in environments prone to potentially damaging power fluctuations. The internal power supply also simplifies rack mounting of the console for installed applications, eliminating the need for a bulky adapter or additional connections.
