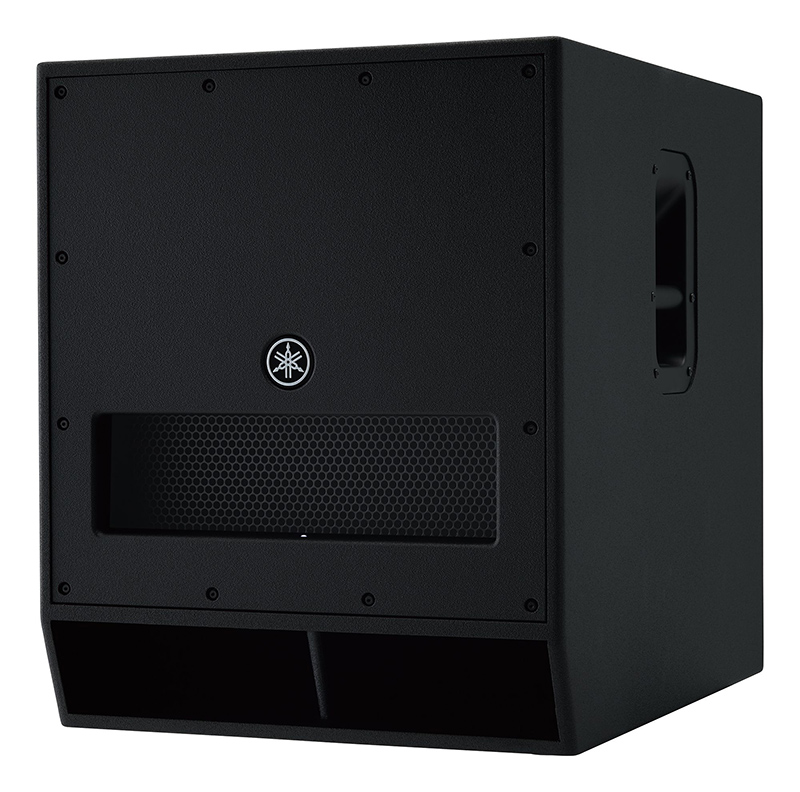

Yamaha DXS18 18″ Powered Subwoofer High Performance 136dB SPL
• Portable 18″ subwoofer with 1020 watts Dynamic power output
• 18″ long-throw speaker with a 4″ voice coil for superb bass response
• 32Hz-120Hz frequency range is ideal for small to medium-sized rooms
• Built-in D-XSUB processing allows you to extend the frequency response even lower
• Cardioid mode decreases stage-side sound pressure while increasing low-end output
• Wooden cabinet is durable and acoustically optimized for maximum sound quality
• Includes a dual pole socket that accommodates 35mm diameter speaker poles and M20 screws
The YAMAHA DXS 18 achieves best in class SPL of up to 136dB and delivers the lowest frequency 32Hz in the lineup.
Equipped with a band-pass type enclosure and high power handling 4-inch voice coil magnet that drives the 18-inch woofer, the Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy.
YAMAHA DXS18 Specifications:
• Speaker type: 18″ Powered subwoofer
• Frequency range (-10dB): 32Hz – 120Hz
• Components: 18″ cone, Voice Coil:4″
• Output power: Dynamic:1020W / Continuous: 800W
• Maximum output level (1m; on axis): 136dB SPL
• In/Out connectors: INPUT: XLR3-31 x 2 , THRU: XLR3-32 x 2 (THROUGH or HPF POST)
• Processors: D-XSUB: BOOST, XTD LF, NORMAL
• Cooling: Natural convection
• Power requirements: 100V – 240V, 50Hz/60Hz
• Power consumption: 100W
• Pole socket: 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
• Dimensions (WxHxD): 563mm (22.2″) x 683mm (26.8″) x 721mm (28.4″)
• Net weight: 49.7kg (110lbs)
• Material: Plywood (LINE-X®, Black)
• Warranty: Five Years
