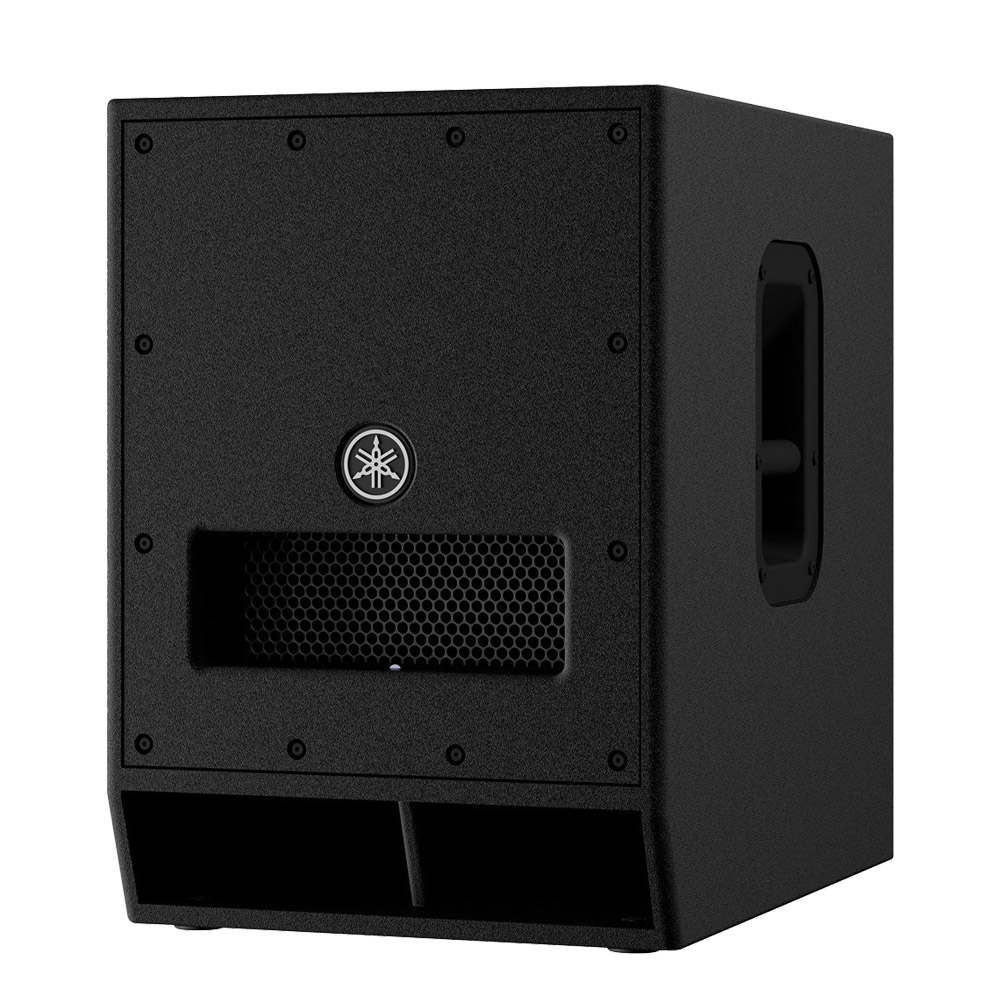

YAMAHA DXS12MKII High Performance Compact Powered Subwoofer
• 12″ powered subwoofer with 1020W class-D power amplifier
• High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
• 42Hz-150Hz frequency range is ideal for small to medium-sized applications
• Built-in D-XSUB processing allows you to extend the frequency response even lower
• Plywood cabinet is durable and acoustically optimized for minimal distortion
• Cardioid mode for bass management onstage
• Selectable X-OVER (80/100/120 Hz)
• M20 and Ø35 mm dual pole sockets
• Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS122)
Yamaha are the masters of affordable AND excellent professional audio solutions. After acquiring French Concert Array artisans NEXO, it didn’t take long for their smarts to trickle down into Yamaha’s catalogue. Now, this incredible technology is available to us mere mortals – and at an affordable price.
Designed with smaller venues or temporary sound reinforcement setups in mind, the Yamaha DXS12MKII is a compact powerhouse that delivers serious power and performance with a professional edge.
Yamaha have equipped the new DXS12MKII with an upgraded 1020W power amplifier producing an impressive 134dB of SPL. Reaching as low as 42Hz, the DXS12MKII delivers clean, clear, heart-stopping bass that defies its lightweight construction.
Select D-XSUB “BOOST” or “XTENDED LF” low frequency processing settings, turn up the volume and watch the eyes widen and jaws drop.
All this in a small, easy to install enclosure that belies the power within.
SPECIFICATIONS:
• Manufacturer Model Number: DXS12MKII
• Driver: High Output 12″ Woofer
• Output Power: 1020 watts
• Amplifier Topology: Class D
• Inputs: 2 x XLR
• Outputs: 2 x XLR (thru/HPF)
• Frequency Range: 42Hz-150hz (-10 dB)
• Crossover Frequency: Selectable – 80Hz, 100Hz, 120Hz
• Processing: Built-in D-XSUB processing
• Maximum Peak SPL: 134 dB SPL @ 1m
• Power Source: Standard IEC AC connector
• Enclosure Material: Meranti Plywood
• Coating: Black Polyurea Coating
• Height: 22.32″ Width: 15.75″ Depth: 22.44″
• Weight: 66.1 lbs.
• Warranty: Five Year Warranty against Manufacturing Defects
