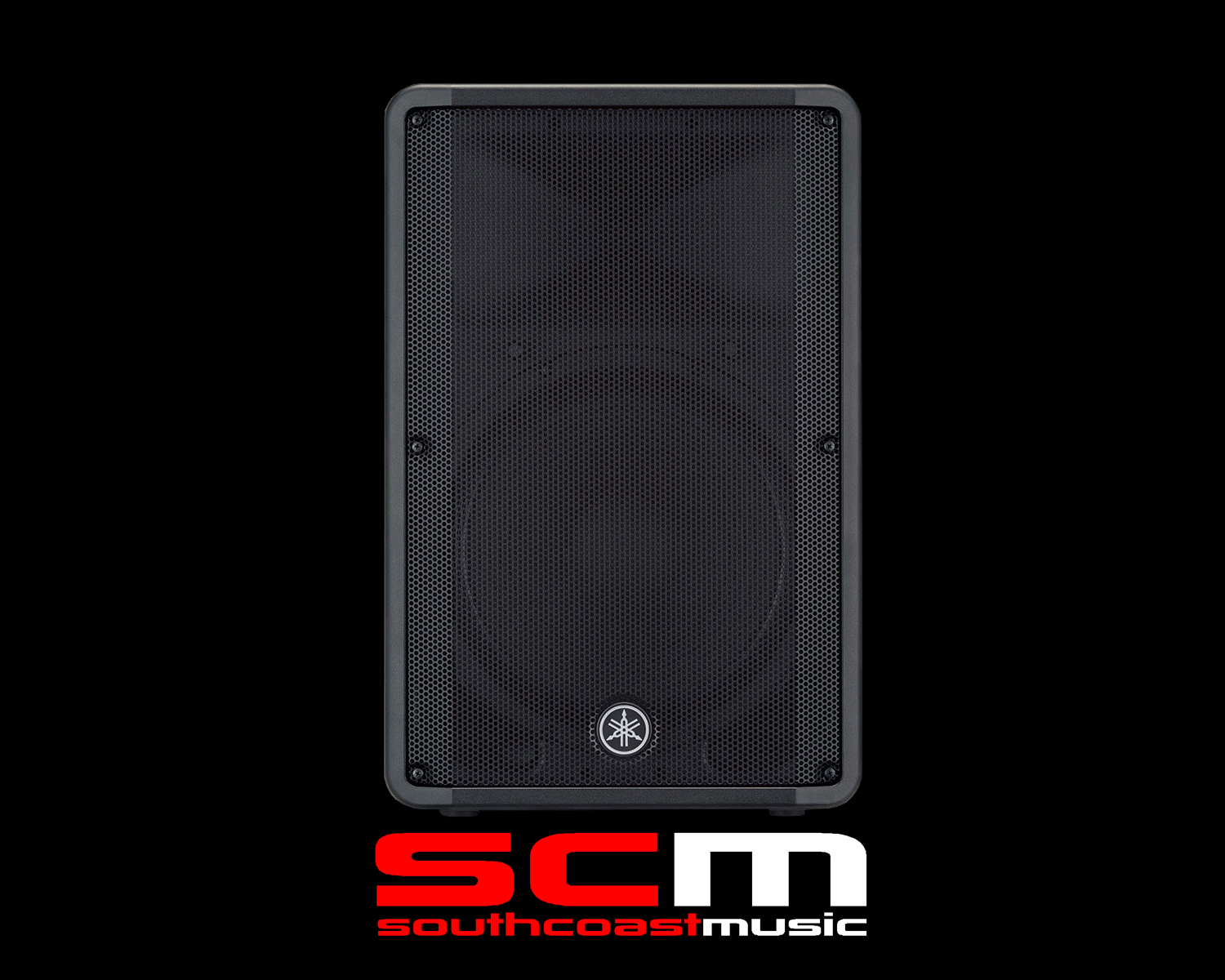

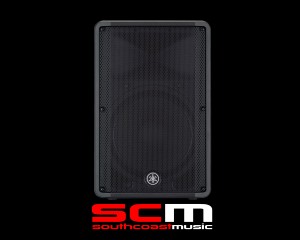

YAMAHA DBR15 1000 WATT 15″ POWERED PA SPEAKER
From the moment YAMAHA acquired NEXO, France’s Internationally lauded Concert PA System supremos, we just knew that it would only be a matter of time until YAMAHA delivered their trademark bulletproof and best value PA boxes along with the best sounding boxes in their class . . . and that time has come.
o FIR-X tuning delivers superb sound quality with high resolution and a smooth frequency response
o D-Contour optimises the DBR15 for main speaker or floor monitor use
o Onboard mixer lets you select either a direct output or a mixed output
o Comprehensive inputs for mixer, musical instrument or media players
o Amplifier and power supply design provides powerful output from a compact speaker
o DSP-controlled protection functionality promotes optimum reliability
o Five Year Warranty
The YAMAHA DBR15 powered loudspeaker utilises its specially designed Class-D 1000 watt power amplifier along with YAMAHA’s proprietry FIR-X DSP tuning to optimise the sound and protection algorithms of the DBR15, delivering plenty of muscle, despite the compact size of this speaker cabinet. The YAMAHA DBR15s will deliver the lowest bottom end and sweetest high frequency performance, night after night.
YAMAHA DBR15s are the perfect answer as main front-of-house speakers, for live performance, rehearsal, DJ events and as stage monitors. For those mere mortals requiring a compact home system with the power to shake the walls, you need look no further. We also carry a comprehensive range of interconnect cables – please contact us to discuss the right setup for you.

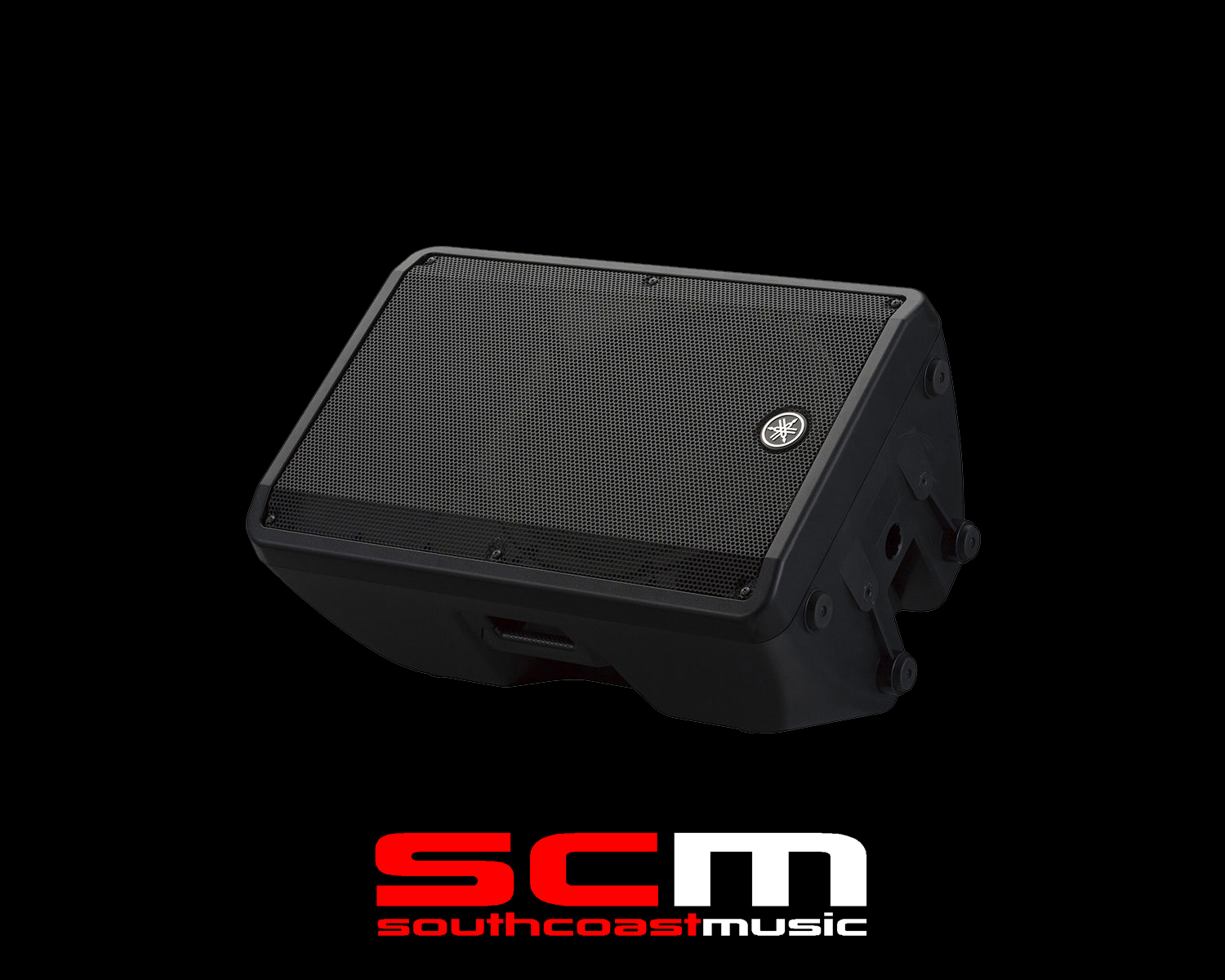

Incredibly versatile, you can use the DBR15 as a great-sounding main speaker or as a high-performance floor monitor with a quick flick of the Yamaha DBR15 15″ active speaker’s D-Contour switch. A switchable highpass filter also makes it easy for you to add a subwoofer to your rig. The on-board 2 channel mixer accepts a wide range of input types whilst the powerful DSP is used to protect the system and to tailor the sonic characteristics. The DBR15 can be pole mounted, flown using standard eye-bolts, or used as a floor monitor.
Speaker Type: 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB): 50Hz – 20kHz
Horn Dispersion: H90°x V60°
Low Frequency Driver: 15″ Diameter Cone, 2.5″ Voice Coil, Ferrite Magnet
High Frequency Driver: 1.4″ Diaphragm, 1″ Throat Compression Driver, Ferrite Magnet
Crossover Frequency: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Dynamic Output Power: 1000 W (LF: 800 W, HF: 200 W)
Continuous Output Power: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis): 132dB SPL

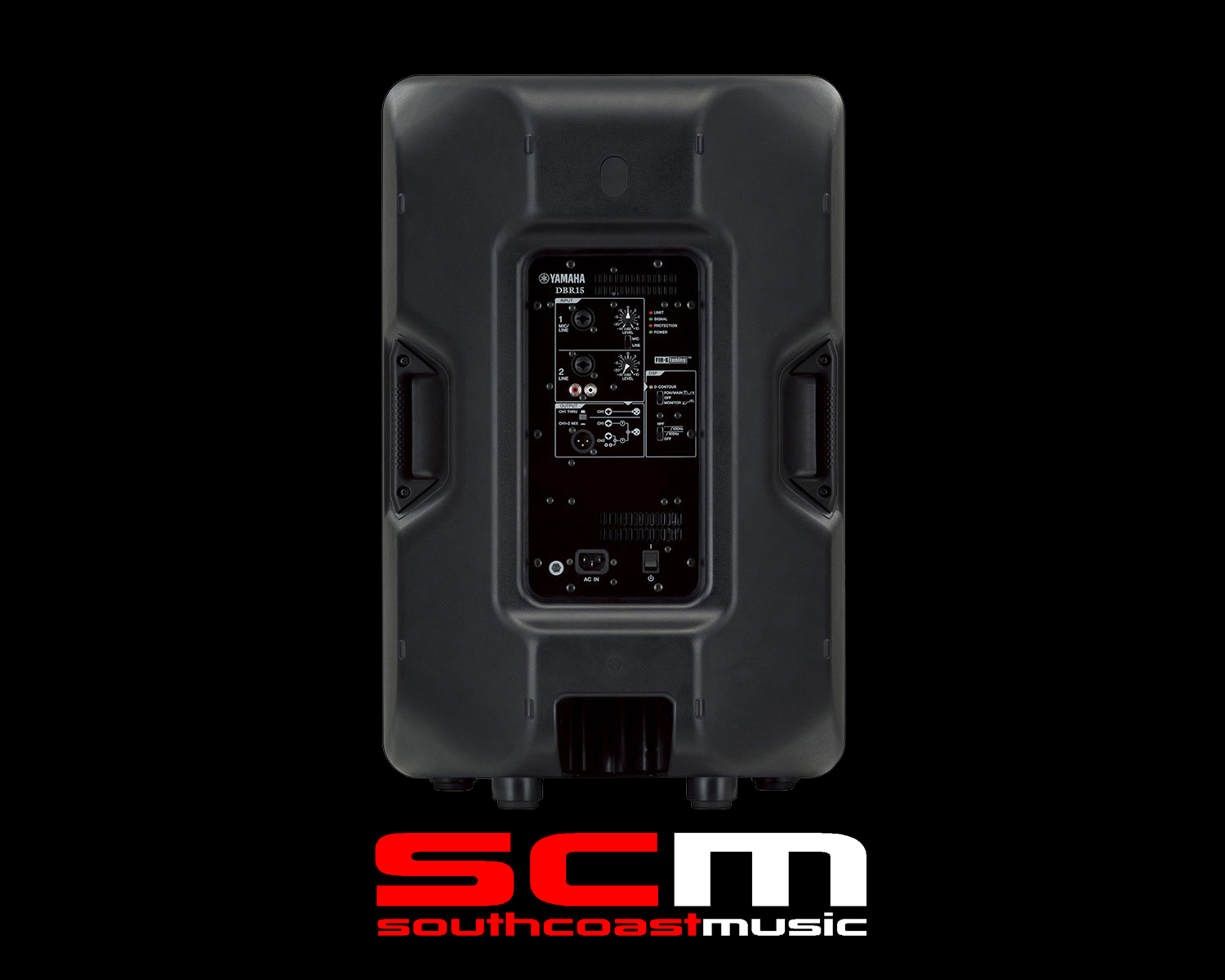

I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat Management: Fan cooling, 4 speeds
Power requirements: 240VAC 50Hz
Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material: High Impact Moulded Plastic
Finish: Black
Handles: 2 x Side mounted handles
Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket: 1 x 35mm (Bottom)
Dimensions: W455mm (17.9″) x H700mm (27.6″) x D378mm (14.9″)
Net weight: 19.3 kg (42.6 lbs)
Optional Accessories: BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
At southcoastmusic we have connected countless performers with their perfect live system over the past three decades, so please give us a call…we look forward to helping you too!
