AKG WMS40 Mini Dual MIX Microphone and Instrument Wireless System US25A and C 537.5MHz + 539.3MHz
• Live sound
• Bands
• Hotels
• Clubs
• Schools
• Houses of worship
• Conferencing
• Sound and Audio Visual companies
• Gyms and more
The AKG WMS40 Mini Dual MIX wireless system is a true plug and play solution and delivers crystal clear sound.
Easy to use – you’ll be up and running in a second, it is the optimum wireless solution for small stages, clubs, places of worship, hotels, gyms and more. The system is available in different application optimised set packages, all of which includes a universal, switched mode power supply for worldwide operation.
Wireless sound – made easy. The benefits of wireless connectivity cannot be overstated and with the WMS40 Mini Dual wireless microphone and Instrument system, AKG gives you professional audio performance with none of the complications.

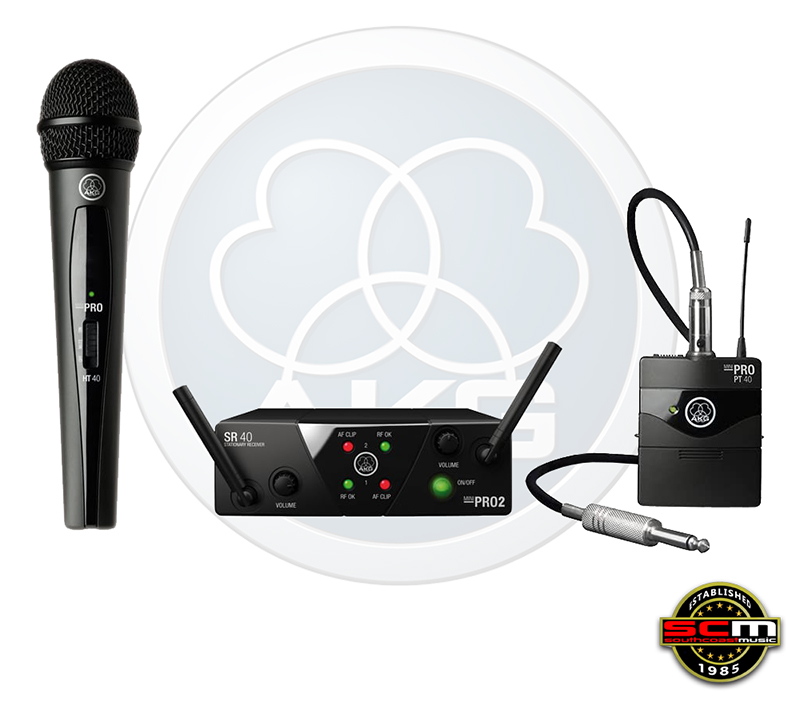

The AKG WMS40 Mini Dual MIX Vocal/Instrumental Set includes:
• 1 x AKG SR 40 MINI2 Dual Channel Receiver
• 1 x AKG HT 40 MINI Handheld Transmitter
• 1 x AKG PT 40 MINI Bodypack Transmitter
• 1 x AKG MKG L Instrument Cable
• 1 x Switch Mode 240VAC-12VDC Power Supply
• 2 x AA Size Dry Batteries
The system comprises an AKG SR40 Mini Dual Wireless Receiver with a HT40 Hand Held Microphone and PT40 Mini pocket transmitter.

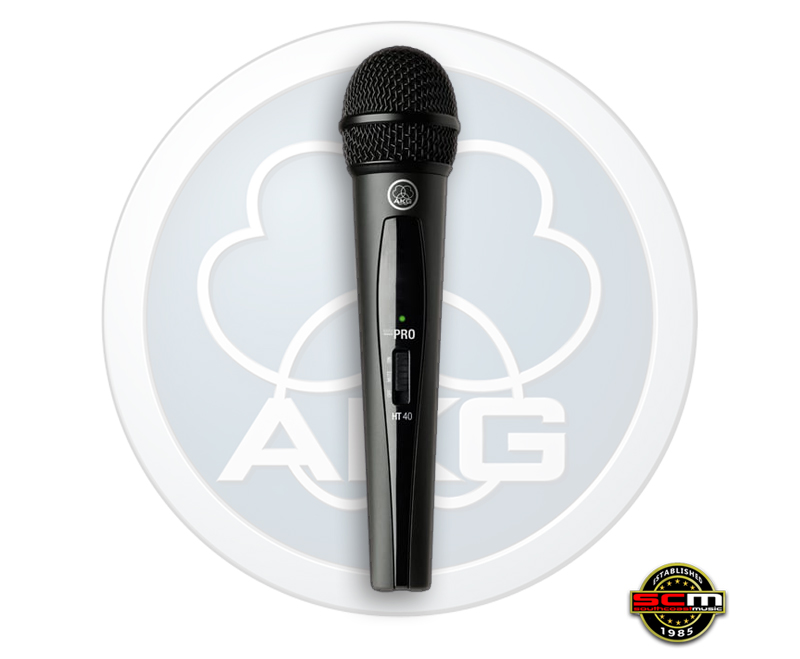

AKG HT40 Wireless Handheld Microphone Transmitter
The AKG HT40 wireless handheld microphone transmitter features a dynamic microphone capsule designed for stressless work in houses of worship, clubs, on small stages and more.
The cardioid polar pattern ensures maximum gain before feedback and the unique HDAP (High Definition Audio Performance) technology delivers brilliant sound.
The rugged transmitter features an on/off/mute switch. Stage ready, the HT40 Hand Held microphone features a proprietary capsule suspension system and a sturdy wire-mesh cap to protect the microphone element from rigorous on-stage use.

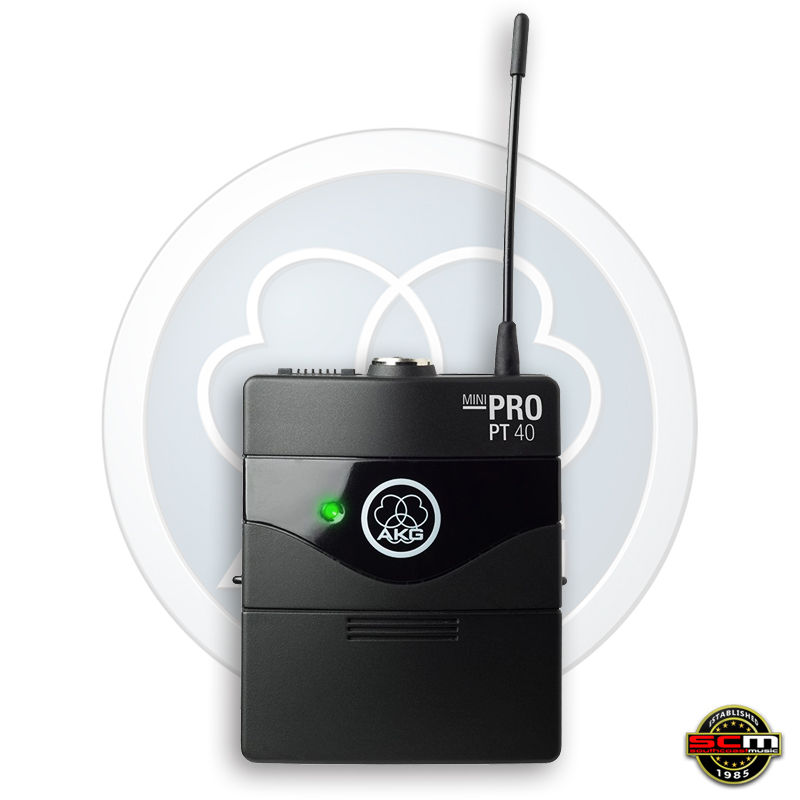

AKG PT40 Mini Pocket Beltpack Transmitter
The AKG PT40 Mini pocket transmitter utilises a professional 3 pin mini XLR connector that is compatible with AKG’s “L” suffix Mics.
The PT40 is also perfectly matched to guitar and bass levels as well as headsets and instrumental microphones ensuring audio performances and speeches are captured with crystal-clear accuracy and outstanding audio quality.

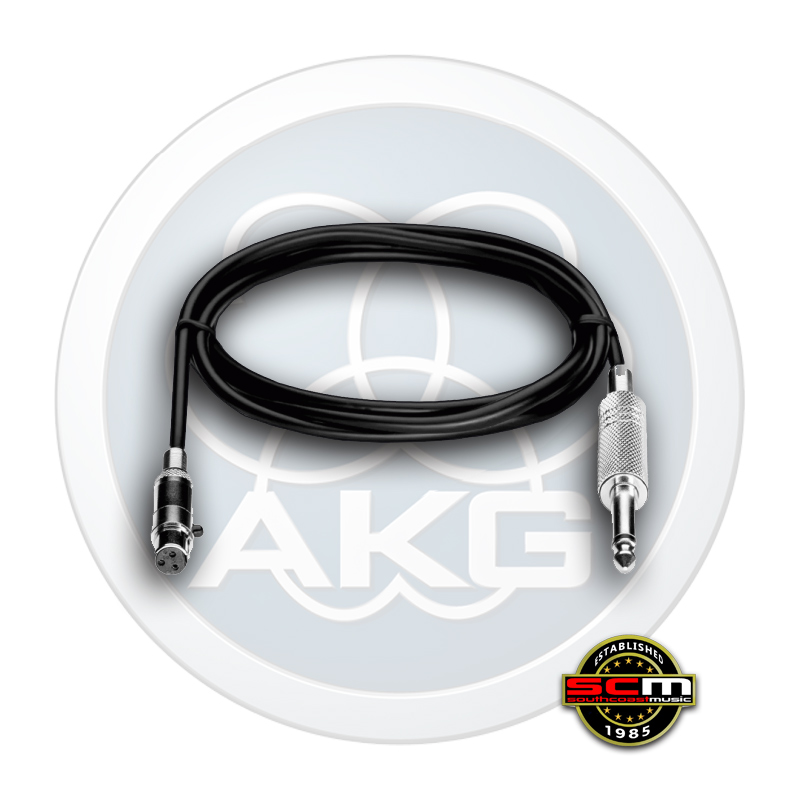

AKG MKG-L Instrument Cable
The system also includes an AKG MKG-L instrument cable. Designed specifically to work with the PT40 wireless body-pack transmitters, the MKG-L is a one metre long cable with mini XLR and 6.35mm (1/4″) connectors. It fits all standard 6.35mm musical instrument output jacks and may also be used with other devices such as powered speakers.
Along with their exceptional performance, one of the HT40/PT40’s stand-out features is extremely long battery life – up to 30 hours off a single AA Alkaline battery, representing ultimate ease of use at an unbeatable price to performance ratio.
The SR40 receiver provides two balanced TRS 6.35mm (1/4″) outputs.
Specifications
• Band A Transmission Frequency: 537.900 MHz
• Band C Transmission Frequency: 539.300 MHz
• Audio bandwidth: 40 to 20,000 Hz
• Frequency stability : (-10°C to +50°C) ±15 kHz
• T.H.D. at 1 kHz: typ. 0.8%
• Signal/noise ratio: typ. 105 dB(A)
• RF output: typ. Max. 10 mW
• Power requirement: Single 1.5-V AA size battery (Alkaline)
• Gain control on pocket transmitter: Yes
• Low battery indicator: Yes
• SR40 Receiver Outputs: 2 x Balanced 6.35mm (1/4″) phono type
• Power Supply: Universal Switchmode Power Supply
AKG HT40 MINI HANDHELD MICROPHONE TRANSMITTER SPECIFICATIONS
• Transmitter Form: Handheld Microphone
• Capsule Type: Dynamic
• Polar Pattern: Cardioid
• Audio Frequency Response: 40Hz – 20 kHz
• Signal to Noise: 110 dBA
• Total Harmonic Distortion (THD): 0.8 % @ 1 kHz
• Range: 20 metres (66′)
• Battery Type: 1 x AA alkaline (or better)
• Operating Time: Up to 30 hours
• Body Material: High Impact Plastic
• Head Shell Material: Sprung Steel Mesh
• Internal Pop Filter: Yes
• Dimensions: H230mm x W51mm (9.1″ x 2.0″)
• Weight: 195g (6.9 oz)
AKG PT MINI BELTPACK SPECIFICATIONS:
• Transmitter Form: Beltpack
• Aerial: Integrated
• Battery Type: 1 x AA alkaline (or better)
• Operating Time: Up to 30 hours
• Body Material: High Impact Plastic
• Belt Clip Material: Sprung Steel
• Audio Frequency Response: 40Hz – 20 kHz
• Signal to Noise: 110 dBA
• Total Harmonic Distortion (THD): 0.8 % @ 1 kHz
• Range: 20 metres (66′)
