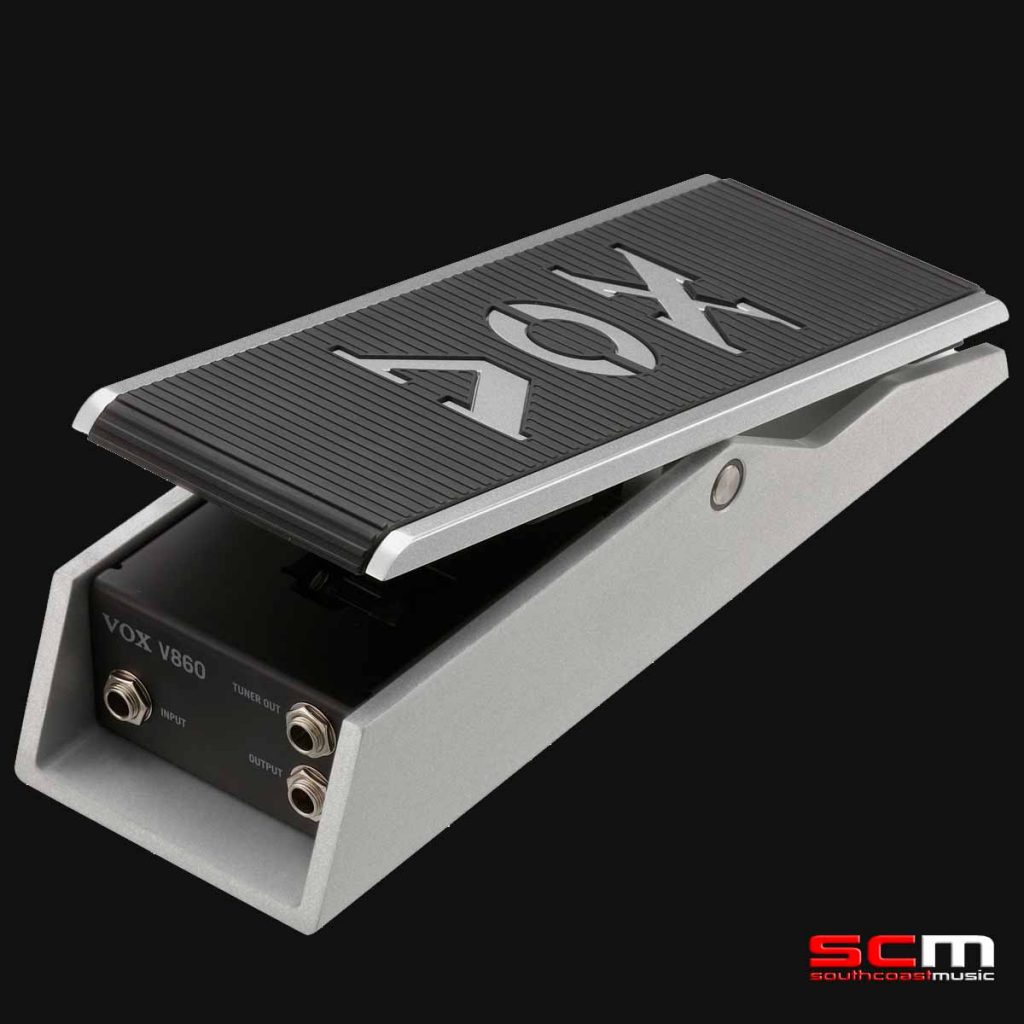

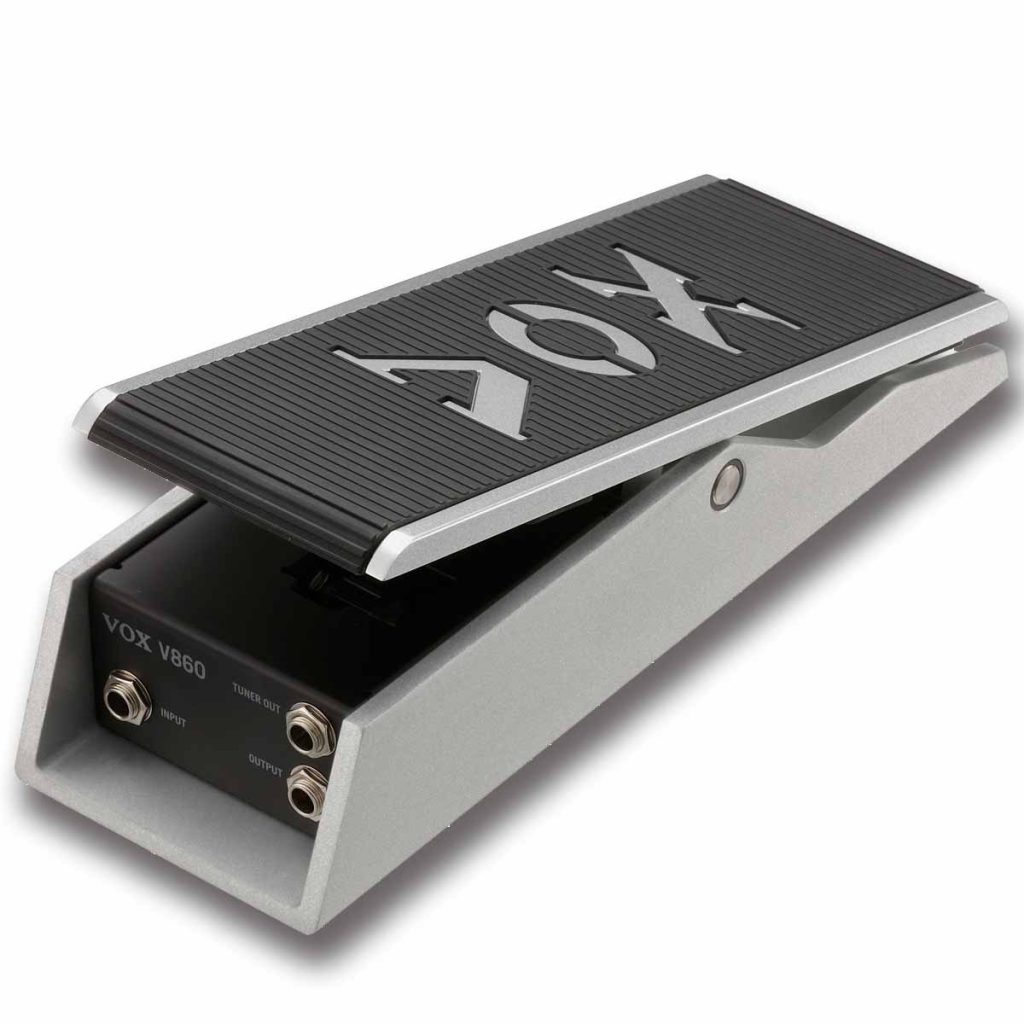

VOX V860 Volume Pedal
• Completely Hand Wired
• Bulletproof Construction
• Aluminium Chassis

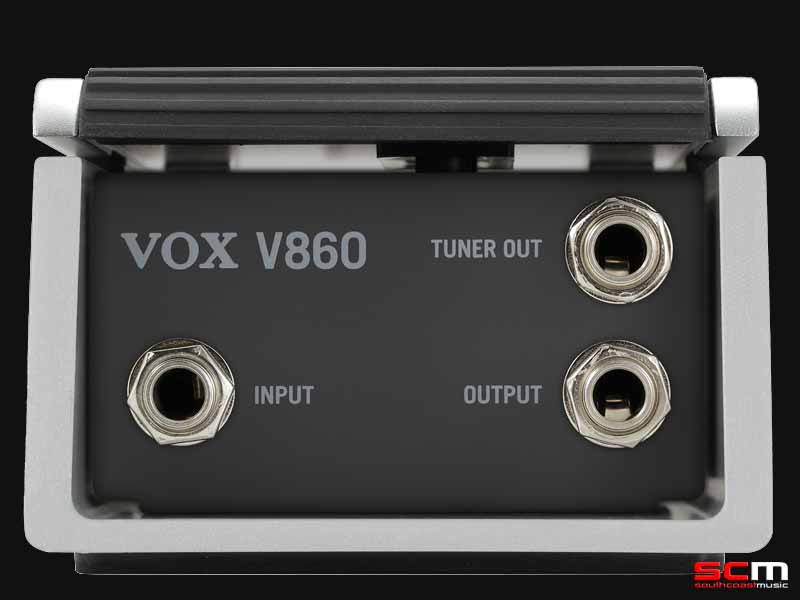

• Tuner Output keeps your tuner out of the Signal Path
• Protected Volume Potentiometer
• Adjustable Torque control varies the Pedal’s action
The VOX V860 has set a new standard in guitar volume pedals. It’s a reimaging of the classic VOX pedal design exemplified by its well-known wah pedals.

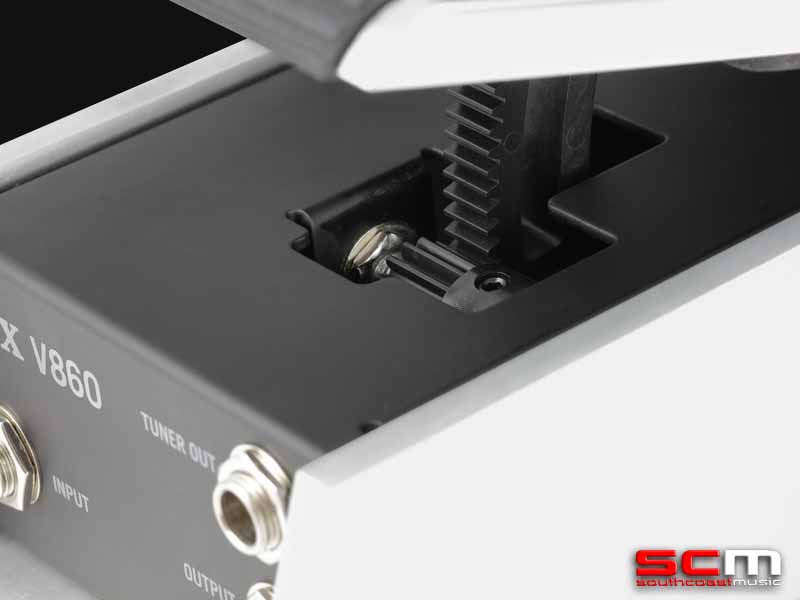

The aluminium chassis is built like a tank – road tough to withstand years of on-stage use. The V860 features a blasted and anodized finish that is both rugged and classy. Built to withstand the rigors of the road, the V860 pedal mechanism uses gears with a high tooth count, ensuring durability and smooth operation.
The VOX V860 Volume Pedal’s aluminium chassis has been engineered to stand up against constant use and the volume potentiometer is encased to keep it free of dirt and other contaminants.
The V860 has a torque control to dial in the pedal’s action to your personal preference.The tuner output keeps your tuner pedal’s circuitry out of your signal path for a cleaner tone.
The components are completely hand-wired, minimizing any change in the tonal character of your guitar, effects pedals or amplifier.
If you haven’t used a volume pedal before you may want to read this – Volume pedals are designed to control the output level of your whole signal chain, enabling you to do swells and similar effects.
They are also handy if you need to tune up or need to replace a broken string on the fly. You’re probably wondering why not simply use your guitar’s volume control? The answer is simpler than you might have thought.
Your guitar is at the beginning of the signal chain, turn the volume down and you reduce the signal level. If you are using effects such as overdrive, delay or chorus, this drop in signal will dramatically alter the tone of your signal – not to mention the actual difficulty of turning your volume control up and down as you play. The VOX V860 volume pedal allows you to attenuate the signal anywhere in the signal chain.
Placed after the distortion will allow the fully distorted signal to be reduced only in volume and not quality. You can also put a volume pedal behind a delay and other time based effects.
So, in a nutshell, the VOX V860 volume pedal simply gives you a lot more flexibility with how you attenuate your guitar’s signal.
VOX V860 VOLUME PEDAL Specifications
• Input impedance: 250K ohms
• Input Jacks: INPUT Jack (monaural standard phone jack)
• Output Jacks: OUTPUT Jack (monaural phone jack)
• Control: Pedal, Torque adjustment screw
• Dimensions (W x D x H): 90 x 268 x 62mm / 3.54″ x 10.55″ x 2.44″ (including rubber feet)
• Weight: 1.3 kg / 2.87 lbs
• Warranty: Two Years
