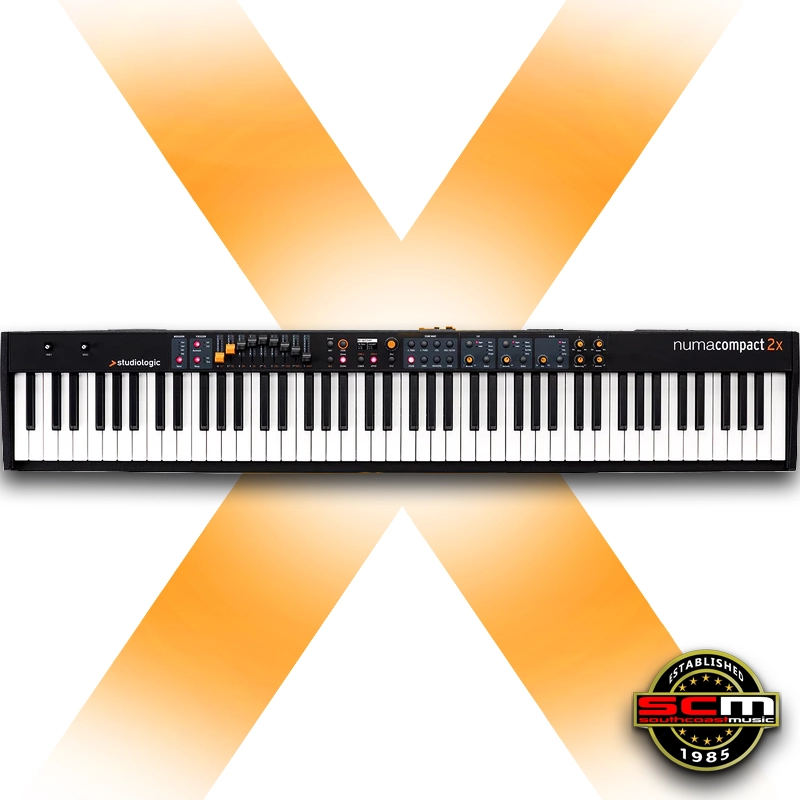

Studiologic Numa Compact 2X 88 Key Stage Piano
• 88 Keys, TP/9 PIANO semi-weighted Action
• Dual switch detection system
• Aftertouch
• 128 voice Polyphony
• 3 x sound engines: TrS Stereo multi-samples, Tone wheel Organ Model and Synth engine
• Acoustic and Electric Piano, Keyboards, Bass & Guitars, orchestral and more
• Use up to 6 onboard effects simultaneously
• 10w + 10w built-in Digital Amplifier
• 2 x Elliptical Full Range Speakers
• MIDI: In/Out
• USB: Audio, MIDI, USB powerable
• One Year Support
The Numa Compact 2X brings to the extreme the power of the Studiologic Compact family. Packed in the same compact size cabinet there are now 3 powerful sound engines, a tone wheel organ model derived from Numa Organ, the Sledge sound synthesis and 1GB of sample memory. The new USB port allows you to transmit and receive digital audio. The Numa Compact 2x speakers allow you to to amplify the sounds of your computer or table, saving you valuable space
Power becomes Compact.
The Numa Compact 2x is a big step forward in terms of sound quality, digital post processing effects and full MIDI controller features. The built-in speakers and the internal digital amplifier make the Numa Compact 2x a flexible solution for home studio environments however, connect it to external amplification and be prepared to be absolutely amazed. The 3 powerful sound engines were made to be played – loud! The quality of the sound samples and synthesis are mind blowing – and inspiring.
As far as we are concerned, there simply isn’t another 88 note keyboard on the planet that only weighs 7kg and sounds like this does at this price.
Numa Compact 2x synth and Tone Wheel Organ with organ drawbars

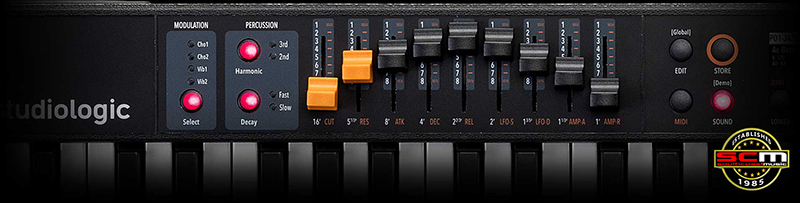

Unleash your inner B3 with the true tone wheel organ model derived from the acclaimed Numa Organ implemented in the sound engine. The user interface features 9 programmable sliders which can be used as real-time Drawbars to control the organ sounds or as linear controls to send Midi Control Commands.
Virtual synth machine
The Sledge engine is optimized to fit in the Numa Compact 2x, where it’s possible to create any synthetic sound starting from a basic waves library. Using the 9 sliders section it is possible to control 9 synthesis parameters – powerful stuff.
Numa Compact speaker system – Play. Listen.
Numa Compact 2x grows with your demands. You can either use it with the high quality built-in speakers in a training session, practice at home with your headphones or plug it into external amplification such as a PA system when playing with your musician friends or performing live on stage.

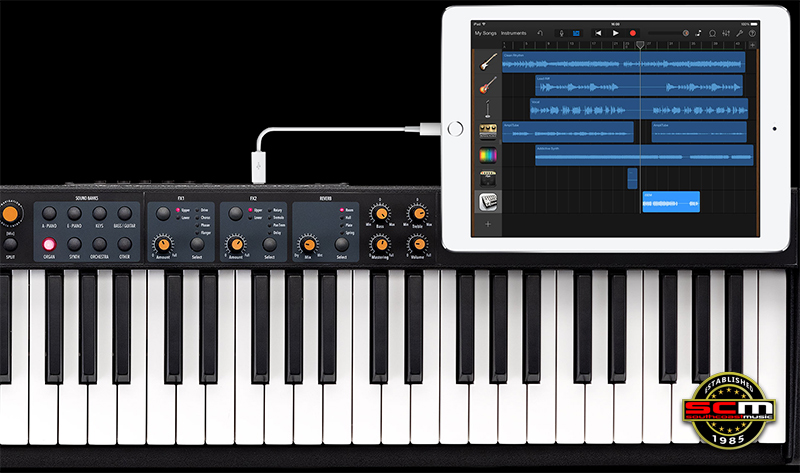

Audio over USB
The USB port now allows to send and receive audio with digital quality. Simply send and record the sound of the NC2x on the computer or use the NC2x as an audio board, amplifying the digital audio coming from the computer or tablet thru the built-in speakers, in endless combinations.

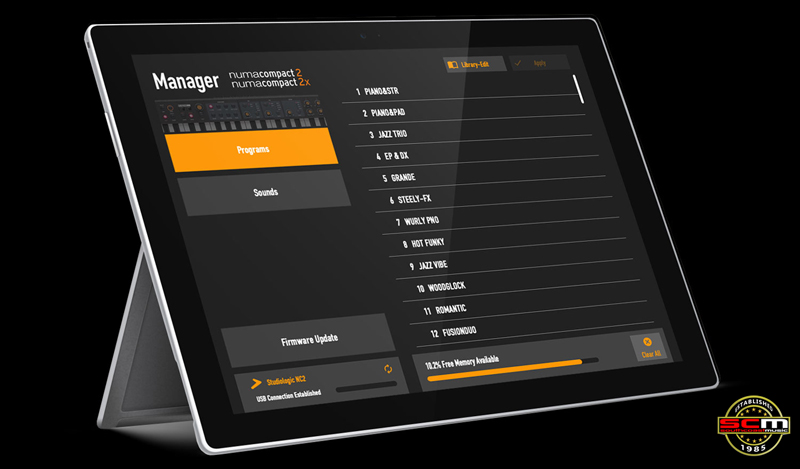

Numa Manager
Available for Windows and macOS
NUMA compact 2x specifications:
• Country of Manufacture: Italy
• Manufacturer Model Number: STL-COMPACT2X
• UPC: 8034141640575
• 88 Keys, Fatar TP/9 PIANO semi-weighted Action
• Dual switch detection system
• Aftertouch
• Touch: Soft, Medium, Hard, Fixed (programmable)
SOUND GENERATION
• Max Polyphony: 128 voices
• 2 Parts: Lower + Upper
• 100 Sounds
• 8 Acoustic Piano, 8 Electric Piano, 8 Keyboards, 12 Bass & Guitars, 16 Organs, 20 Synthesizers, 12 Orchestral, 16 Other sounds
• TrS (True Sound) Stereo multi-samples
• Tone wheel Organ Model (from Numa Organ 2 experience)
• Synth engine (from Sledge experience)
• Updatable factory and user sounds
EFFECTS / PROCESSING
• Up to 6 effects simultaneously: 2 FX on Lower + 2 FX on Upper + Reverb + Strings resonance
• FX1: Drive, Chorus, Phaser, Flanger
• FX2: Rotary, Tremolo, Pan Trem, Delay
• REVERB: Room, Hall, Plate, Spring
• Strings Resonance on all Piano sounds with level control
SOUNDS AND PROGRAMS
• 99 User programs
• 1GB Samples memory
• 6 Sections
• 2 Sounds in Layer or Split mode
• 2 Sounds (additional) from MIDI/USB
• 2 MIDI Zones in Layer or Split mode
EDIT FUNCTIONS
• Global, Program, Part, Mixer (Lower / Upper / Zone A / Zone B volume control)
• Master controls: Bass, Treble, Mastering, Volume
MIDI MODULE
• 2 Programmable Zones – A/B
• Program Change, Bank Select (LSB, MSB), MIDI Channel, Volume, Split assign, Transpose, Octave
• Pedals 1-2 assign, Sticks 1-2 assign
• 9 assignable sliders
SPEAKER SYSTEM
• 10 + 10W built-in digital Amplifier
• 2 x Elliptical full range speakers
CONTROLS / USER INTERFACE
• OLED display 128 x 64 dots
• Encoder with push function
• 7 x potentiometers
• 23 x buttons
• 9 x drawbars | sliders
CONTROL STICKS
• Stick 1: Pitch
• Stick 2: Mod + FX Control

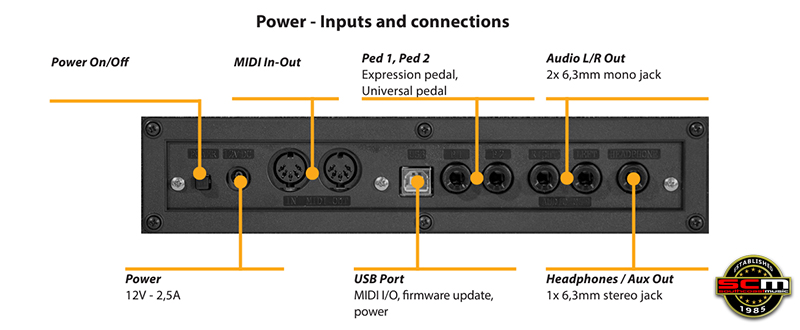

CONNECTIONS
• Audio OUT: 2 x 6.35 mm mono jack (L+R)
• Headphones: 1 x 6.35 mm TRS jack (programmable as Aux out)
• Pedals: Expression, Universal
• MIDI: In, Out
• USB: Audio, MIDI, power1, Manager App
POWER SUPPLY
• DC IN: 12V
• Adapter: Input: 100-240V / Output: 12V-2.5A (included)
• Dimensions: W127 cm (50″) x D23 cm (9″) x H10 cm (4″)
• Weight: 7.1 Kg (15.6 lbs)
PACKAGE INCLUDES
• Numa Compact 2x
• USB cable
• 240VAC Power Adapter
