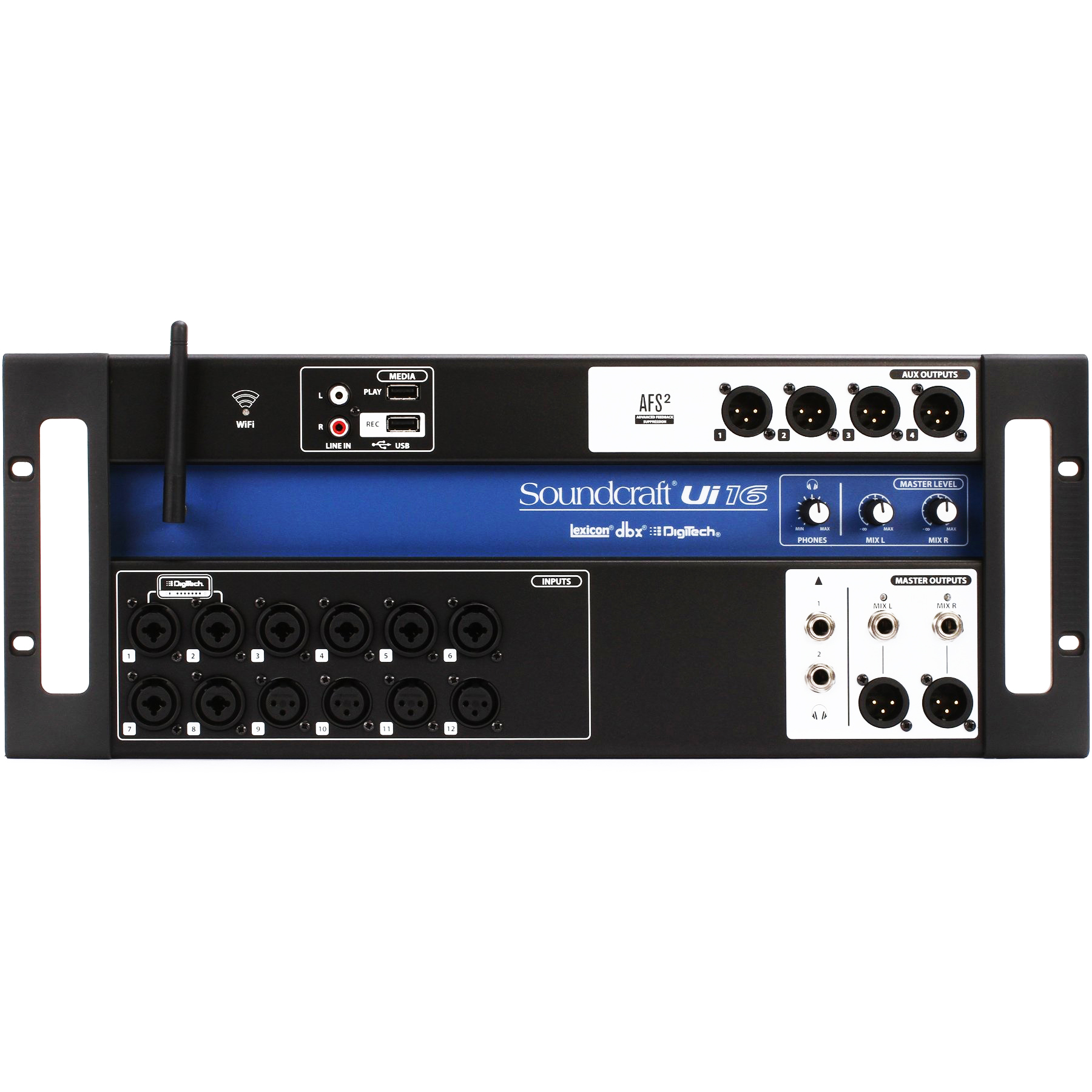

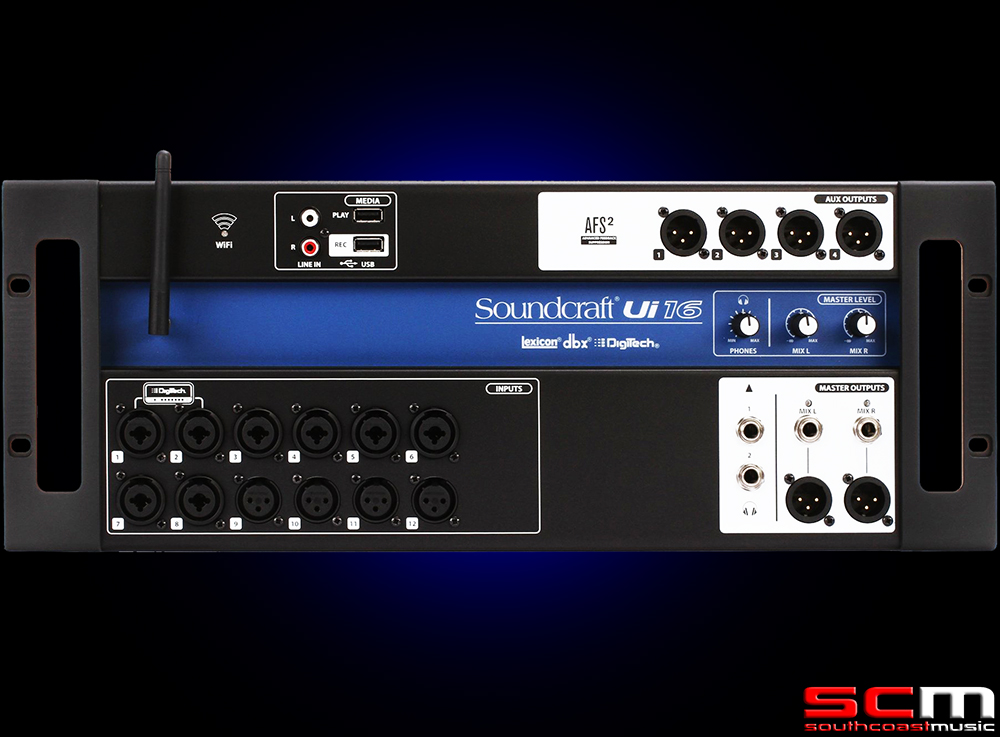

SOUNDCRAFT Ui16 DIGITAL MIXER
SOUNDCRAFT Ui16 REMOTE CONTROLLABLE DIGITAL MIXER
• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
• Fully recallable and remote-controlled mic preamps
The Soundcraft Ui series mixers pack a complete digital mixing system into a compact, road-rugged stagebox format complete with built-in Wi-fi and the ability to be controlled by any connected device via a standard web browser – no Apps, no OS limitations, no constraints on how or where you mix.
Soundcraft have been providing Professional Audio Solutions to the World from their headquarters in the UK since 1973 and Ui16 Digital mixer is a fabulous solution for a wide range of applications and situations including:
o Wedding Reception Venues where remote control of the sound level is required
o Clubs and Pubs
o Churches and Houses of Worship
o Amateur Theatres
o Schools
o PA operators
o Musicians and Performers who need complete and intuitive control over their sound
One example of how the Ui16 may be used is in a House of Worship – Used with a Tablet such as a iPad, you can actually sit with the audience and mix wirelessly – making adjustments in real time that suit the size of the room and number of people.
The RTA Real Time Analyser automatically adjusts the overall EQ to suit the room acoustics. Channel EQ control is intuitive and musical as are the studio quality effects. Compressors on all channels also keeps the audio signal at the desired level.
You can record or play audio material using USB drives. The first two channels also include dedicated Guitar FX options and Amp modelling. The four AUX OUTS may be used as a personal monitor mix and each musician can control their own mix with any WiFi device.
We sincerely believe that the Soundcraft Ui16 is the best compact mixing solution bar none and with southcoastmusic’s buying power, it is affordable too!
The Ui16 digital mixer features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously.
In addition, the Ui16 features built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more.
The Ui16 also has fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.
There is also a 31-band graphic EQ, noise gate and compressor on all outputs as well as a real-time frequency analyser (RTA) on inputs and outputs.
There are also three dedicated Lexicon FX busses: Reverb, Delay and Chorus. Additionally, mixer controls include Subgroups, Mute groups and View groups, among others.
The Ui16 digital mixer feature full Show/Snapshot recallability with channel recall safes, while security lockout features allow customisation of device access to only specific functions and mixes if needed.
The mixer also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.
The Ui Series mixers offer XLR combo mic/line inputs, XLR mic inputs, Hi- Z/instrument inputs, as well as a stereo RCA line input.
A 2-channel USB media player is included along with four balanced XLR Aux outputs, two 6.3mm (1/4″) stereo headphone outputs with level control plus balanced stereo XLR and 6.3mm (1/4″) main outputs.
Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well.
The Ui16 Digital Mixer also features an HDMI display connection output.
THIS ITEM INCLUDES FREE SHIPPING!
• Control with your Tablet, PC, Smartphone
• Use up to 10 control devices (tablets, phones, pcs) at the same time
• Cross-Platform compatibility with iOS, android, Windows, Mac OS, and Linux devices (over HTML5)
• Includes integrated Stagebox and DSP
• Integrated Wi-Fi and Ethernet
• Superb Soundcraft Preamps and Soundcraft Mixer Algorithms
• Legendary Harman Signal Processing from dbx, Digitech and Lexicon
• 4 Lexicon Effects Busses: Reverb, Delay, Chorus, Room
• dbx AFS2 Active Feedback Suppression
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on Input Channels
• 31-band Graphic EQ, Noise Gate and Compressor on all outputs
• Real-Time Frequency Analyser (RTA) on inputs and outputs
• 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with Channel Safes and Security Lockout
• 2-channel USB Audio Playback and Recording
• Storable Gain and +48V status

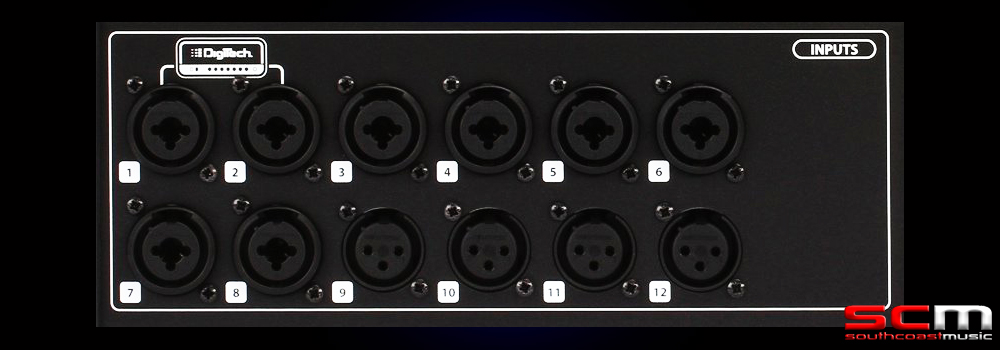

• Inputs: 8 x XLR/Jack Combo Connectors, 4 x XLR, 2 x RCA, 1 x 2ch USB

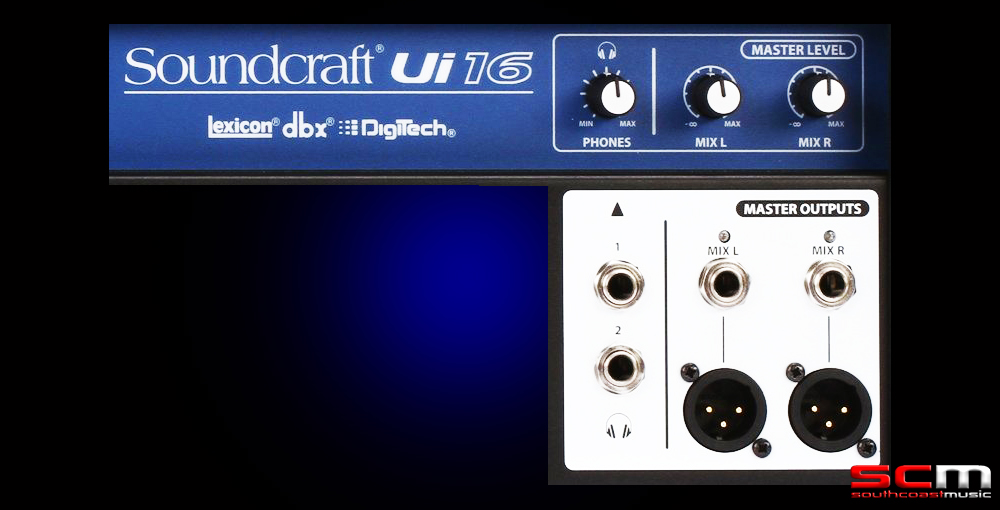

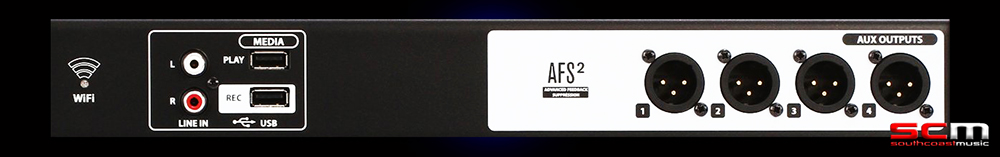

• Outputs: 2 x XLR & 2 x Jack Main Outputs. 4 x XLR Auxiliary Outputs
• WiFi: Yes. On-Board Router

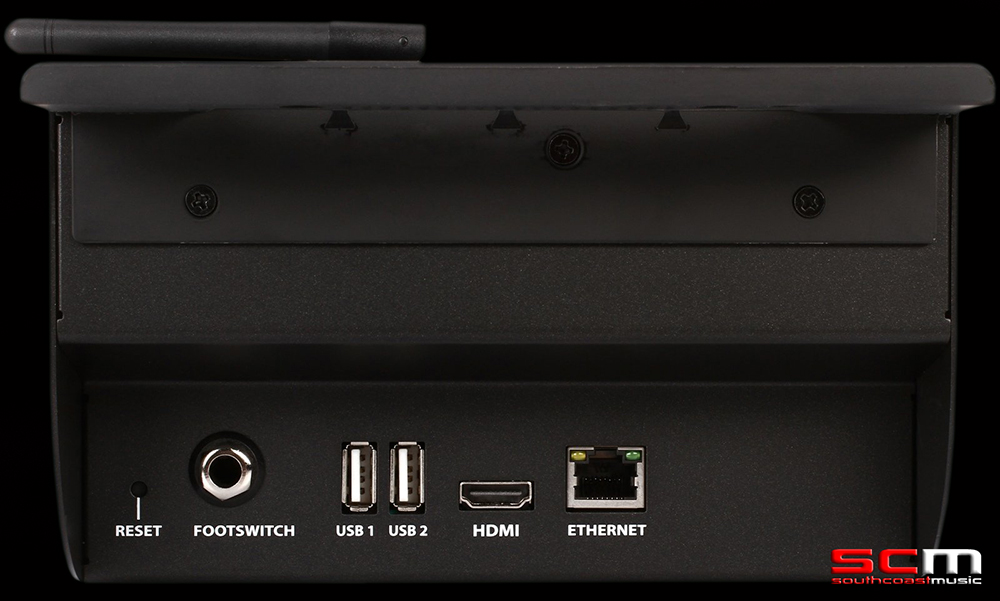

• Ethernet Control: Yes. 1 x RJ45
• Rack Mountable: Yes
• HDMI Output: Yes
• USB Playback: Yes
• USB Record: Yes
• Dimensions: 110 x 177 x 483 mm
• Format: 19″ Rackmountable, 4U High
• Weight: 3.61 kg
• Includes Ableton Live Lite 9 DAW software
