Connect a wide range of instruments, microphones, and other audio hardware to the iPhone, iPad and iPod touch via 1/4 inch instrument and 1/8 inch stereo mic/line inputs.
Record in stereo, or simultaneously record your voice and instrument on separate tracks using GuitarJack with Apps like FourTrack and StudioTrack.
Jam to the GuitarTone amps and effects App and the song tool in FourTrack (now) and StudioTrack (soon). These apps are optimized to sound best with GuitarJack. More GuitarTone amps and effects enabled free while GuitarJack is connected. Also works well with most third party audio apps like Apple’s GarageBand.
Enhance the sound of your guitar with Taylor EQ, optimized for use with Taylor guitars and GuitarJack.
Listen to music using the stereo output on GuitarJack, which has increased drive for headphones.
Made in the U.S.A.

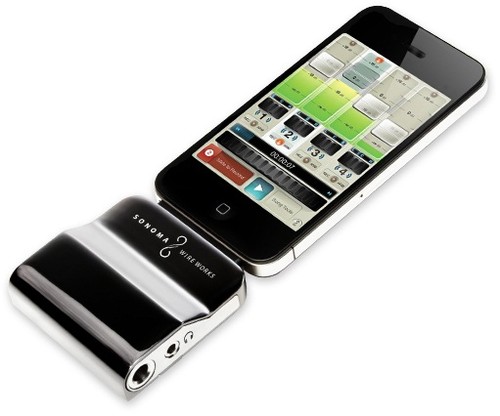

Sleek Design
“GuitarJack distinguishes itself with a uniquely durable aluminum construction and the ability to accept both 1/4 inch and 1/8 inch inputs simultaneously.” CNET.com
Hardware Features
1/4 inch (6.5 mm) instrument input – nickel-plated solid brass Switchcraft (10,000 MTBF) jack
1/8 inch (3.5 mm) stereo mic/line input – (no phantom power is provided)
1/8 inch (3.5 mm) stereo headphone/line output with increased drive for headphones
Dock connector designed for use without removing most cases
Device powered for ultimate portability – requires no batteries or power adapter
GuitarJack Model 2 includes a 24-bit AD/DA Converter for 24-bit audio playback and recording.
Sleek and rugged aluminum shell
GuitarJack Model 2 is compatible with iPhone 5, iPhone 5c, iPhone 5S, iPod touch (5th gen.), iPad mini and iPad 4 using Apple’s Lightning to 30-pin Adapter (not included). Also compatible with iPad 3, iPad 2, iPad, iPhone 4S, iPhone 4, iPhone 3GS and iPod touch (3rd and 4th gen.) – CableJive dockXtender cable (not included) is recommended.
Software Features
(Control Panel in GuitarTone, FourTrack, StudioTrack & TaylorEQ)
Level Control: 60 dB of continuous level control
Input Modes:
Instrument (1/4 inch) – mono – Pad, Lo-Z or Hi-Z mode
Mic/Line (1/8 inch) – mono, dual-mono or stereo – Pad, Normal or Boost mode
Both inputs – Mic/Line input on the right channel and Instrument on the left channel
Included Software:
GuitarTone and TaylorEQ are available free
GuitarJack enables additional amps and effects in GuitarTone and FourTrack now and StudioTrack (soon) while connected ($19.98 value)
