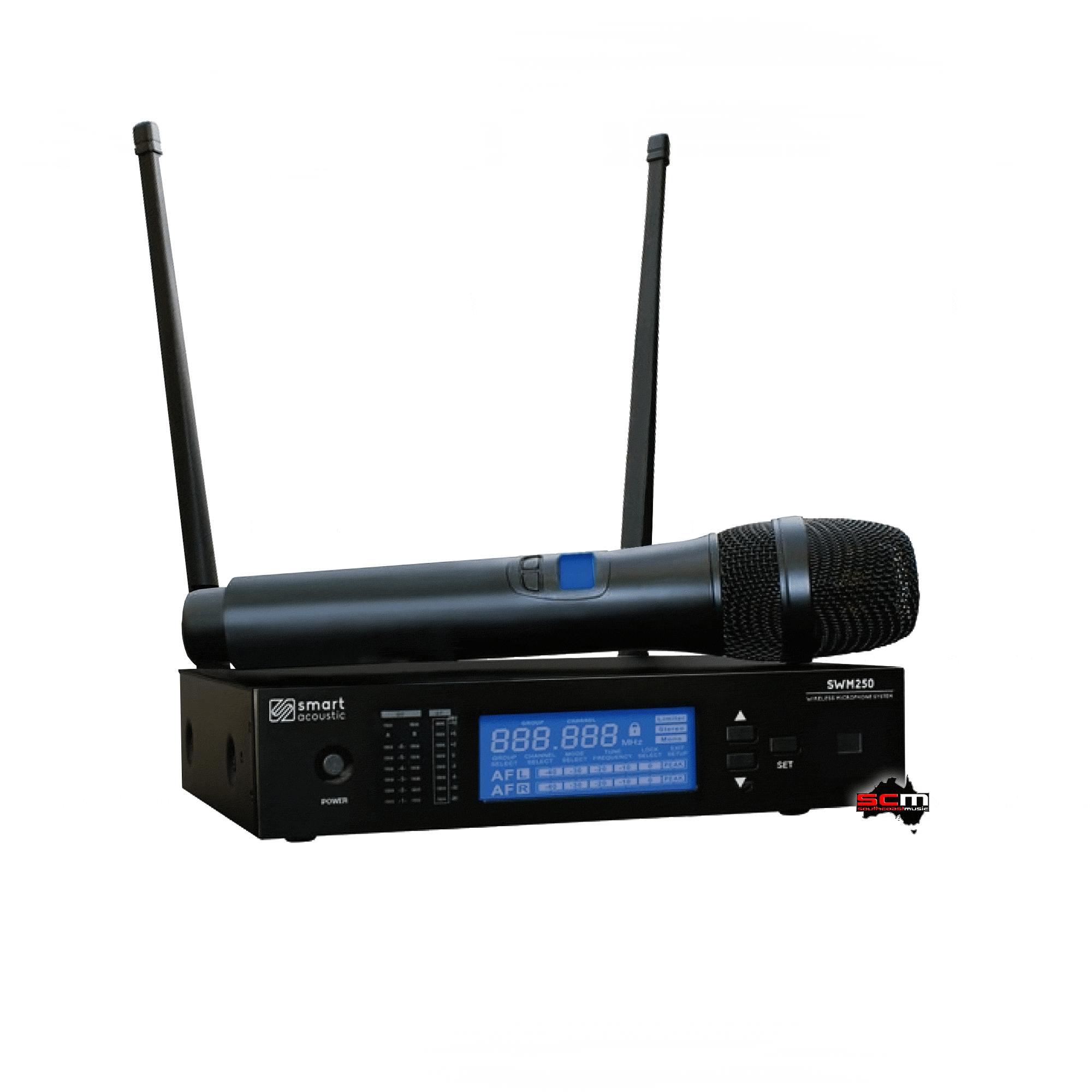

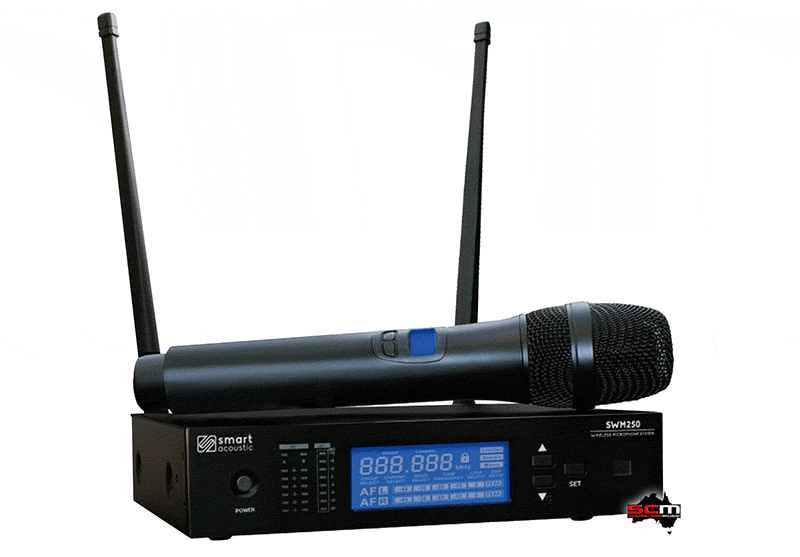

SMART ACOUSTIC SWM250HT HANDHELD WIRELESS MICROPHONE SYSTEM
SKU 358155
The Smart Acoustic SWM250HT is a great sounding and easy to operate Wireless Handheld Microphone System.
The system includes a SWM250 Wireless Receiver SHM250 Handheld Wireless Microphone.
Using the Smart Acoustic wireless system is easy. The SWM250 Wireless receiver allows you to easily pair your transmitter to one of the 120 True Diversity Channels with its ASC (automatic scan) functionality. Simply press the ASC key on the receiver and transmitter, hold up to the IR window and the units will pair themselves together…simple!
The SHM250 handheld transmitter features a cardioid pickup pattern which provides excellent on-axis performance while rejecting unwanted sounds from from the sides and back of the microphone.
The SHM250 will give you up to 6 hours of continuous operation from two AA batteries. The battery status of your connected unit can also be monitored on the Receiver so you know when it is time to swap the batteries over.
You can also monitor the RF integrity of your connection and follow the level of signal being transmitted to the SWM250 with its clear backlit LCD display.
SMART ACOUSTIC SWM250 RECEIVER SPECIFICATIONS:
• Channels: 120 Unique UHF channels, True-diversity system with 2 groups of independent receiving circuits
• Channel Assignment: Advanced audio frequency digital lock technology with ASC function
• Audio Output Level: (=/- 30KHz deviation , 1KHz tone)
• Output Impedence: XLR connector: 10KΩ, 6.35mm (¼”) connector: 22KΩ
• Outputs: XLR Output, Impedance balanced 6.35mm (¼”) connector
• Sensitivity: -94dBm for 30dB SINAD, typical
• Image Rejection: >55dB
• Dimensions: 44mm (H) x 410mm (W) x 180mm (D)
• Weight: 1.15kg
• Power Requirements: 12-18V DC 300mA external power supply (included)
• Transmitter Output Level: 10dBm
• Operating Range Under Typical Conditions: 50m
• Audio Frequency Response: (+/-3dB) 70Hz~16KHz
• Total Harmonic Distortion: (+/-30KHz deviation , 1KHz tone) <1% • Dynamic Range: >90dBA – weighted
• Operating Temperature Range: -10ºC to +50ºC. Note: Battery characteristics may limit this range
SMART ACOUSTIC SHM250 HANDHELD MICROPHONE SPECIFICATIONS:
• Maximum Audio Input Level: 0dBV
• Dimensions: 245mm x 51mm diameter
• Weight: 300 grams (without batteries)
• Power Requirements: 2 x AA size alkaline or rechargeable batteries
• Battery Life: >6 hours
• Polar Pattern: Cardioid
