PRESONUS MONITOR STATION
The Monitor Station is the ultimate desktop monitoring and communications system for your recording studio. Based on the award-winning Central Station, the Monitor Station provides talk-back, speaker switching, input source switching and four ultra loud and clear headphone amplifiers delivering everything you need to control your recording environment.
INPUT SWITCHING
The Monitor Station allows you connect up to three input audio streams (TRS1, TRS2, Aux/Phono) allowing you to switch between and compare different inputs. One application is used to connect your computer recording system main outputs to the TRS 1 inputs and a CD player’s outputs to the Aux inputs on the Monitor Station to compare your mix with a commercial CD with the touch of a button.
SPEAKER SWITCHING
Three sets of speaker outputs are loaded on the Monitor Station allowing you to audition your mix on different speakers to take the guessing out of how your mixes will translate in the real world.
MAIN AND CUE ROUTING
The Monitor Station allows each of the stereo inputs (TRS1, TRS2, aux) to be routed to one of two audio paths, “main” and “cue”. The Monitor Station allows you to route two separate signals (Main and Cue) to each of the four headphone amplifiers.Send a mix with click track to TRS 2 input while sending the “main mix” to TRS 1. You can then enable the headphone amplifiers to listen to either cue or main mix. The main audio path always feeds what you will hear in the control room.
TOTAL COMMUNICATION
Communication during recording is essential. No more yelling when you need to talk to the musicians wearng headphones. Use the Monitor Station talkback system with onboad or external microphone to communicate with the musicians.
CUSTOMISE YOUR MONITOR STATION
Three different functions on the Monitor Station can be set and saved during power up so that you can customise your recording system for the way you work.
Input selection can be set in either “summing” mode (TRS1, TRS2, and Aux/Phone are summed together when engaged), or in “toggle” mode (TRS1, TRS2, and Aux/Phono can only be selected one at a time).
Speaker selection can either work in “all on” mode (speaker A, B and C can be engaged simultaneously), in “toggle” mode (speaker A, B, and C can only be selected one at a time), or in “subwoofer” mode (A and B are selectable while C can be selected with A or B).
The Monitor Station’s LED signal meters can also be set in three different modes for various signal levels (-10dB, +4dB and +10dB).
HEADPHONE AMPLIFIERS THAT GO TO “11”
PreSonus has built a reputation for delivering the best-sounding headphone amplifiers available. Each of the four headphone amplifiers loaded in the Monitor Station deliver 150 milliwatts and are able to power any headphone with as much loud and clear volume needed for everyone in the band, including the drummer.
PRESONUS MONITOR STATION FEATURES
Main speaker volume adjustment

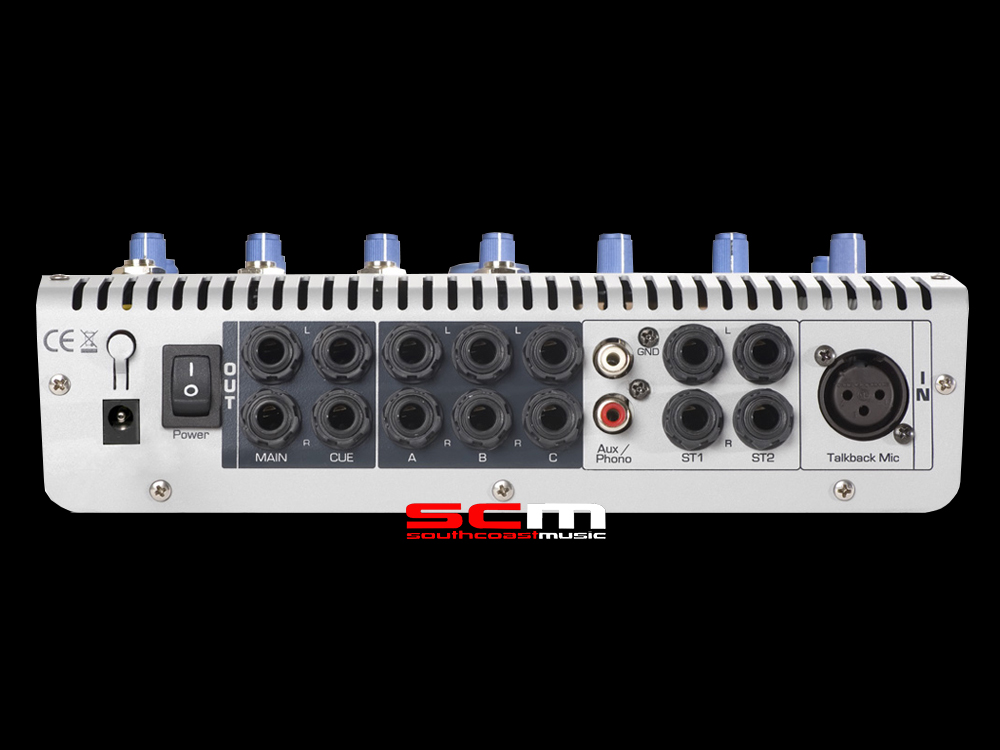

3 stereo inputs (two balanced TRS, one RCA Aux/Phono)
Three sets of balanced TRS speaker outputs each with level adjustment
Talkback microphone with volume control to feed headphone and Cue output
XLR input for external dynamic talkback microphone
Accurate dual 8-segment LED for metering
4 loud and clear headphone amplifiers with separate volume control and independent input source selection
Main and Cue stereo output with independent input source selection
Dim with variable level adjustment
Aux and Phono level adjustment
Mute and Mono
