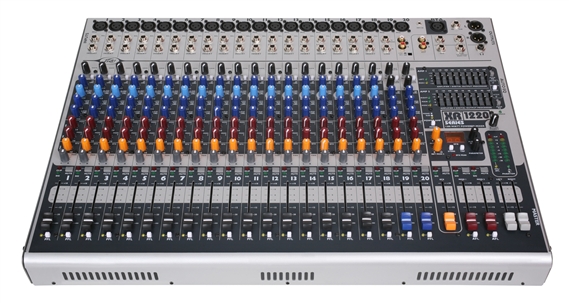

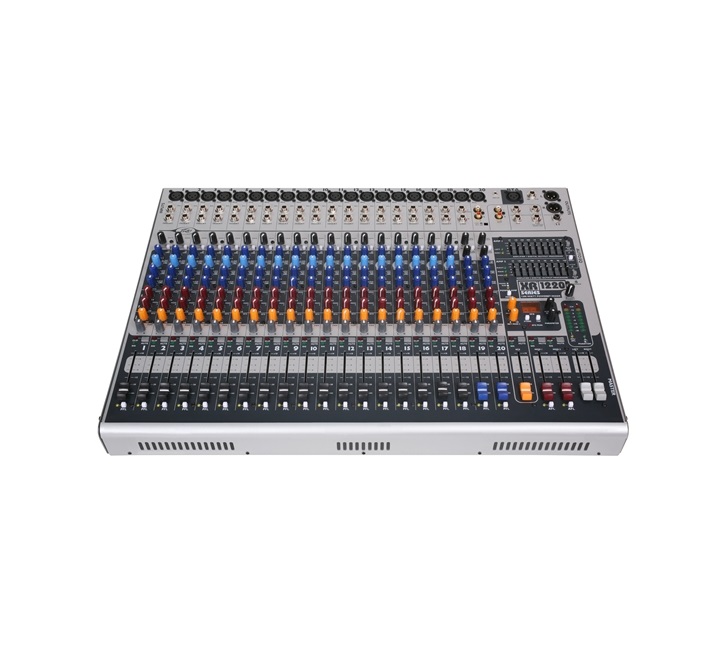

Peavey XR 1220 Powered Mixer
Console style mixer/amp, 20 channels with XLR mic inputs plus stereo line inputs on channels 19 & 20, 60 mm faders, 4 band EQ with mid-morph technology, 2 monitor sends, 1 EFX send, pan pot, PFL and Mute switches. Dual 600W @ 4 ohm Class D power amps, 2 combo (Speakon and 1/4″) connecters per amp channel, digital EFX (w/footswitch defeat and tap function). Auto EQ feature (with dedicated RTA input), Feedback Ferrets and digital graphic EQ’s that are dedicated to each amplifier. Five power amp modes, including fully active subwoofer crossover.
FEATURES
Dual 600W amps lightweight Class D
Auto GEQ
Feedback Ferret®
4-band EQ on input channels
Digital effects
Dual-9 band graphic EQ
Two monitor sends
Dedicated effect return fader
20 XLR mic channels
Weight Unpacked: 25.57 lb(11.6 kg)
Weight Packed: 30.42 lb(13.8 kg)
Width Packed: 20″(50.8 cm)
Height Packed: 29″(73.66 cm)
Depth Packed: 9.5″(24.13 cm)
MAIN FEATURES
Console-style mixer with dual Class D amplifiers
20 XLR mic channels (2 with stereo line inputs – 1/4″ on channel 19, RCA on channel 20)
Smooth 60mm faders
Each amplifier provides 600W program at 4 ohms (360W program at 8 ohms)
Feedback Ferret feedback suppressor onboard
A 4-band EQ, 2 monitor sends, and an effects send on each input channel
Mid-morph technology on mono input channels
Digital effects
5 power amp modes, including fully active subwoofer crossover
Dual 9-band graphic EQ (1/power amp) includes switchable Auto GEQ with dedicated RTA input
2 monitor sends
2 x 1/4″ and Speakon combination connectors per amp
1/8″ stereo auxiliary input
Dedicated effects return fader
Ultra-lightweight design (only 25.57 lbs.)
Tech Specs
Type Powered
Channels 20
Power 2 x 600W (Class-D)
Inputs – Mic Preamps 20 x XLR
Inputs – Line 18 x 1/4″ (Ch 1-18), 2 x 1/4″ (CH 19 Stereo), 2 x RCA (CH 20 Stereo), 1 x 1/8″ (MP3)
Inputs – Other 1 x XLR (RTA Mic)
Outputs – Main 2 x XLR, 1 x 1/4″ (Mono)
Outputs – Other 4 x speakON (Mon 1, 2), 2 x RCA (Tape)
Headphones 1 x 1/4″
Send/Return I/O 2 x 1/4″ (Mon 1, Mon 2), 2 x 1/4″ (EFX)
Phantom Power 20 x Channels
EQ Bands 4-band (CH 1-18), 3-band (CH 19-20) (Channel), 9-band Graphic (Amp 1), 9-band Graphic (Amp 2)
Aux Sends 1 x Mon 1, 1 x Mon 2, 1 x EFX
Busses/Groups Mon 1 (Stereo), Mon 2 (Stereo)
Faders 25 x 60mm
Channel Inserts Yes (CH 1-18)
Effects Yes
Height 5.5″
Depth 17″
Width 24″
Weight 25 lbs.
Manufacturer Part Number 03513760
