MOOER S801 INTELLIGENT GUITAR
The GTRS Guitar series are the next generation of guitar products, offering a complete, lightweight digital and analog guitar system built from the ground up.
Built around a custom hand crafted guitar designed by master Luthiers and equipped with the GTRS Intelligent Processor, the MOOER S801 Intelligent Guitar seamlessly integrates tradition and technology. MOOER’s digital sound engineers have designed this guitar to function with its dedicated mobile application delivering seamless integration of classic guitar stylings and modern digital simulation technology. The GWF4 Wireless Footswitch is also available to provide complete control of your tone during live performance, recording or practice sessions.
INNOVATIVE TECHNOLOGY and TONAL FLEXIBILITY
The GTRS boldly expresses MOOER’s philosophy of innovative technology and tonal flexibility with unmatched affordability. The Standard 801 model features an American Basswood body and roasted Canadian Maple neck and fingerboard.
The Custom H-S-S Alnico pickup configuration was specifically chosen to provide the broadest tonal palate while adhering to traditional guitar designs. The volume and tone knobs, as well as the pickup switch, can all be used to tweak your tone without worrying about battery life or other digital aspects of the GTRS guitar.
FAMILIAR CONTROLS – NEW POSSIBILITIES
Controls look familiar with volume and tone dials along with a 5-way pickup selector switch. The third knob however, is where the excitement begins. The Super Knob activates the GTRS’s onboard DSP, allowing you to connect to the accompanying app on your smartphone or tablet and access 126 onboard effects from Mooer’s GE Series, 11 guitar sims, 40 drum machine types, 10 metronomes and a looper with a generous 80 seconds of recording time.
Powered by a high-capacity lithium battery, it offers up to 10 hours of playing time and can be charged via USB-C, the GTRS retains all of the functionality of a normal guitar even if the GTRS intelligent process system is turned off.
MOOER GTRS PRODUCT SPECIFICATIONS
• Model: S801
• Body Shape: Double Offset Cutaway
• Body Material: American Basswood
• Body Finish: Gloss Lacquer
• Body Colour:
• Construction: Bolt-on with Contoured Heel
• Neck Material: 1-Piece Roasted Canadian Hard Maple
• Fretboard Material: 1-Piece Roasted Canadian Hard Maple
• Fretboard Radius: 12″
• Number of Frets: 22
• Fret Material: Nickel Silver
• Fret Size: Jumbo
• Scale Length: 25.5″
• Truss Rod: Dual Action Steel
• Neck Finish: Satin Lacquer
• Neck Profile: Standard C
• Nut Width: 1 5/8″
• Nut Material: Bone
• Pickups: SC-1N Single Coil Alnico-V, SC-1M Single Coil Alnico-V, HM-1B Humbucker Alnico-V
• Control: 1 x Vol, 1 x Tone, 1 x Super-Knob (Main output/Preset control), 5 Way Switch
• Bridge: GTRS 2-Point Tremolo

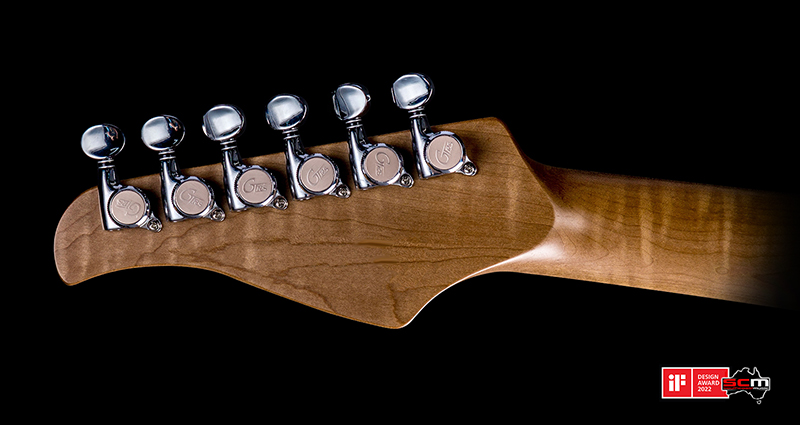

• Tuners: Vintage Style
• Strings: 9-42
• Hardware Finish: Chrome
• Processor: GTRS Intelligent Process System
• Case: GTRS Gig Bag Included
EFFECTS:
• Guitar Effects: 126
• Drum: 40
• Metronome: 10
• Looper: 80 seconds looper
• Guitar Sim: 11
• Bluetooth: 5.0 APP: iOS /Android
• Supports cloud sharing
• Power: GLB-P1 Li-ion Battery 4000mA
• Expected Battery Life: 10 Hours（Continuous use）
• USB-C: Supports recording, charging battery
• Charging Cable: USB-C to USB-A cable
• Strings: 09-42
• Accessories: GTRS gig bag, Tremolo arm, 3 x Wrenches, USB3.0 AM to Type C cable, Owner’s Manual
