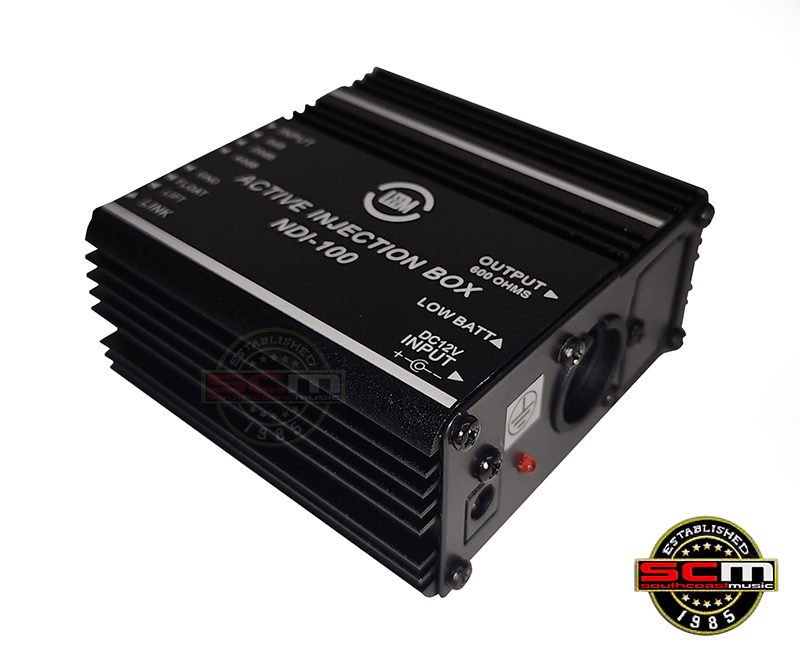

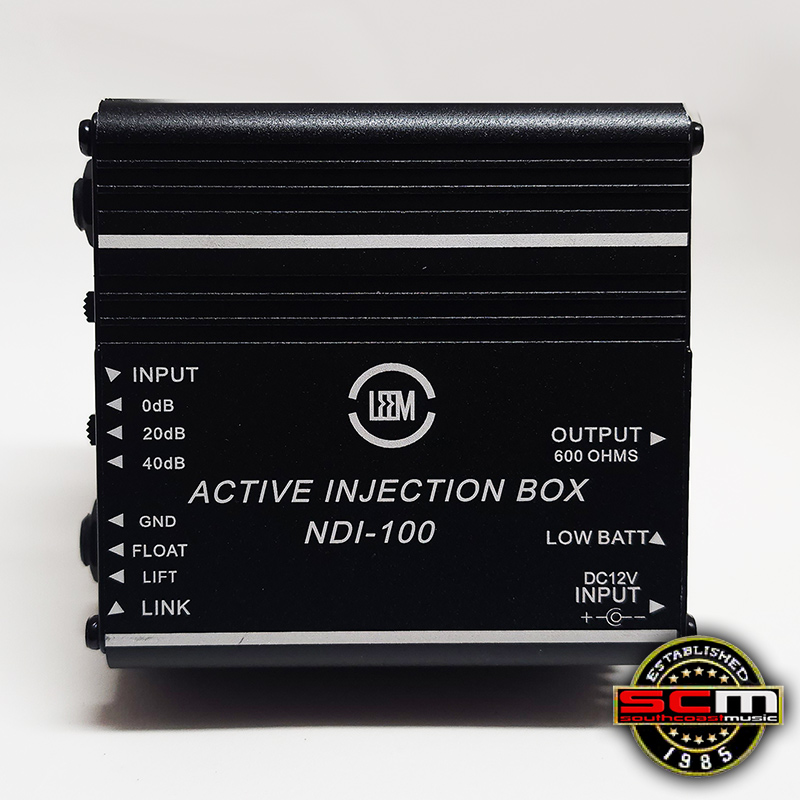

LEEM AUDIO NDI-100 Active DI Box – Direct Injection Box
• Active Direct Injection (DI) Box
• Die-Cast Alloy Metal Chassis
• A ground lift switch to eliminate earth loops (which produce hum).
• 20db or 40db pad switch for signals that are too hot and are causing unwanted distortion.
• Powered by 9 volt battery or optional power supply (not supplied).
• One Year Australia-wide Warranty
The DI100 is a quality Active direct box from Leem Pro Audio that offers excellent audio performance at a class leading price. The Leem NDI-100 Active Direct Injection (DI) Box offers more flexibility, quieter performance and control over the Audio Signal due to its active (powered) circuitry.
Built tough with a heavy duty metal casing, the Leem DI100 features a 6.35mm (1/4″) jack input and output (link) and can supply a balanced connection to the mixing console via XLR.
A switchable input pad (0dB, -20dB, -40dB), switchable ground lift and low battery indicator make this DI perfect for both professionals and beginners.
The versatile Leem DI-100 can be powered via battery, RPC12 adaptor or phantom power.
Passive DI boxes certainly have their place and can be very useful. The downside is that they are essentially just transformers matching impedances and balancing signals. If your source signal is low-level or low impedance, the passive DI can’t do anything to “improve” the signal.
An active DI box such as the LEEM NDI-100 uses a preamplifier to provide a stronger signal and higher input impedance. This means that it can take a low-level signal and boost it. Additionally, the NDI-100 is quiet and tonally transparent.
The Leem NDI-100 Active DI Box has proven to be an invaluable tool for Sound Engineers whether involved in Gospel Music, Live Music, Recording, School productions, Theatre and more.
LEEM AUDIO NDI-100 Specifications
• Frequency Response: 20Hz – 20kHz
• Input 1/4” Phone Jack: 1M ohm / Unbalanced
• Output XLR connector: 600ohm / Balanced
• PAD Switch: 0dB, -20dB, -40dB
• DC input: 9V-12V, 300mA
• Dimensions (W x H x D): 100 x 45 x 100 mm
• Weight: 300 grams
• Warranty: One Year
