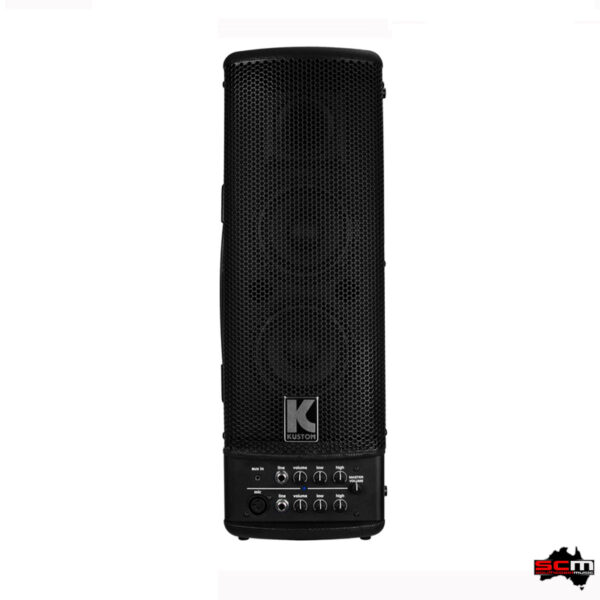

Kustom PW40BATBT Bluetooth-Enabled Portable PA System AC and Battery Power
Take your music absolutely anywhere you want with this easy-to-use portable compact tower system.
The Kustom PW40BATBT Bluetooth-Enabled Portable PA System is Kustom’s most portable speaker tower yet.
With 40 watts of output power, the Kustom PW40BATBT may be operated from a 240VAC power source or its internal rechargeable battery (for up to 10 hours).
Quality performance and convenient features in a compact, easy to use package. Kustom have designed and engineered this versatile system for a variety of situations, amplifying vocals, instruments, keyboards, electronic drums, audio devices and more.
Powerwerks is a brand used by Kustom in some markets – our systems are all badged Kustom and come complete with a one year – Australia wide manufacturer’s warranty.
Featuring easy-to-access front panel inputs and controls, this gutsy 40-watt package includes an integrated Bluetooth 3.0 module allowing you to stream audio directly from your compatible devices, such as smartphones or tablets, within a 33-foot range.
Once your device has been paired, your Kustom-Powerwerks Speaker tower remembers the connection, so the next time you connect it’s ready to go.
As well as Bluetooth, the PW40BATBT features 2 wired channels. Channel 1 offers a choice of either a 3.5mm AUX input or 6.35mm instrument input. Channel two offers an XLR microphone input with Phantom Power or a 6.35mm instrument input.
Both channels have an independent volume control and 2-band EQ. The PowerLink Circuit allows you to link 2 or more units together, allowing for streamlined expandability.
A pair of Kustom designed 4.5″ speakers and a high-frequency driver deliver just the right combination of high and midrange sounds. This balance ensures your vocals cut through the mix while minimising harsh and unwanted frequencies.
With the same tried-and-true build quality that Kustom are known for, the PW40BATBT features a heavy-duty steel grille, sturdy corners along with a carry handle and rubber feet on the bottom and side. A standard 35mm speaker stand adapter is incorporated on the bottom of the case should you need to place it on a speaker stand.

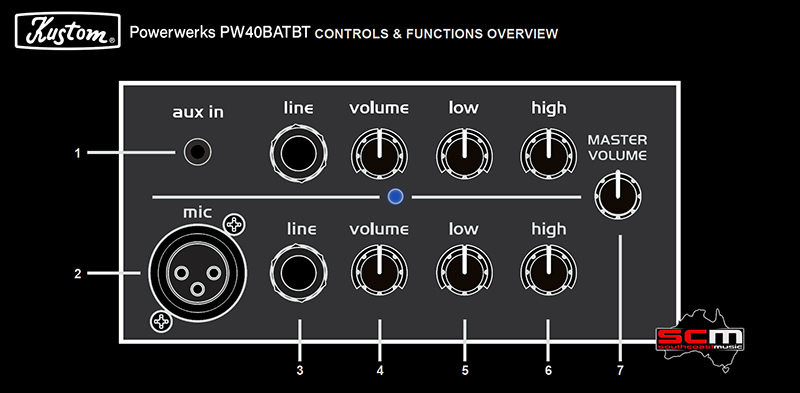

1. AUX IN: Use this stereo input to connect an external audio device such as an MP3, CD player or computer for playback. Note: Right
and Left channels are summed to mono on this input.
2. MIC Input: This XLR input is designed for low-impedance microphones or equipment that has a mic-level, balanced output.
Note: This input sends 9-volt phantom power. This is used to provide power to condenser microphones. Phantom power will not
damage any dynamic or non-condenser microphone.
3. LINE Inputs: These ¼-inch unbalanced inputs may be used to connect high-impedance microphones, keyboards, drum
machines and other audio devices.
4. Volume: Use these controls to adjust the volume level of each channel and the relative balance between them.
Note: This control affects SYNC Output level.
5. Low: Determines the emphasis of bass frequencies. Turning this knob clockwise creates a deeper, warmer tone. If you
need a brighter sound, reduce the bass by turning counter-clockwise.
6. High: Turned clockwise, this control accents treble frequencies to produce clearer, crisper sound. Turn counter-clockwise to make the
sound softer and less bright.
7. Master Volume: Controls the overall volume of all channels and the input of SYNC. Note: Does not affect SYNC Output level.
Additional Features: Here are a few additional features designed to prolong the life of your Battery Powered PA.
Standby Mode: Power amplifier goes into Standby Mode after 20 minutes of non-use with POWER ON to extend battery life. Power
Amp turns back on 1/2 second after input signal is detected.
Protection Mode: When driven to extreme distorted levels the amplifier will go into Protection Mode (Amplifier will momentarily mute
audio to protect speakers and electronics).
Kustom Powerwerks PW40BATBT Specifications:
• Number of Channels: 2
• Channel 1 Inputs: 1 x 3.5mm TRS AUX Input, 1 x 6.35mm TS Unbalanced Line Input
• Channel 2 Inputs: 1 x XLR Balanced Mic Input, 1 x 6.35mm TS Unbalanced Line Input
• Controls: Master Volume
• Channel 1 Controls: Volume, Low, High
• Channel 2 Controls: Volume, Low, High
• HF EQ: 1 x HF Shelf at 4 kHz
• LF EQ: 1 x LF Shelf at 800 Hz
• Frequency Response: 20 Hz to 20 kHz
• Mic Input Gain Range: +70 dB
• Line Input Gain Range: +50 dB
• Aux Input Gain Range: +40 dB
• Signal-to-noise-Ratio (Bluetooth): 94 dB
• Full Range Drivers: 2 x 11.4cm / 4.5″ Full Range Kustom Drivers
• HF Driver: 1 x 88.9mm / 3.5″ Piezo Horn
• Speaker Sensitivity: 92 dB
• Output Power: 40 watts RMS / 36watts RMS with fully charged battery
• Bluetooth: 3.0 + EDR
• Bluetooth Power Class: 2
• Transmitter Power: 2 dBm
• AC Input Power: 120 VAC, 60 Hz / 230 to 240 VAC, 50 Hz / 220 VAC, 50 Hz
• Power Consumption: 80 W (Typical)
• Powerlink Input: 1 x XLR 3-Pin Female Link Input
• Powerlink Output: 1 x XLR 3-Pin Male Link Output
• Phantom Power: +9 V
• Carry Handle: Yes
• Rubber Feet: Yes – on the bottom and side
• Speaker Stand Socket: 35mm (on the bottom of the case)
• Dimensions: W180 x H525 x D190 mm / 7 x 20.75 x 7.5″
• Weight: 9.6kg / 21.2 lbs
• Shipping Dimensions: L25 x W10 x H10″
• Shipping Weight: 23.9 lb
