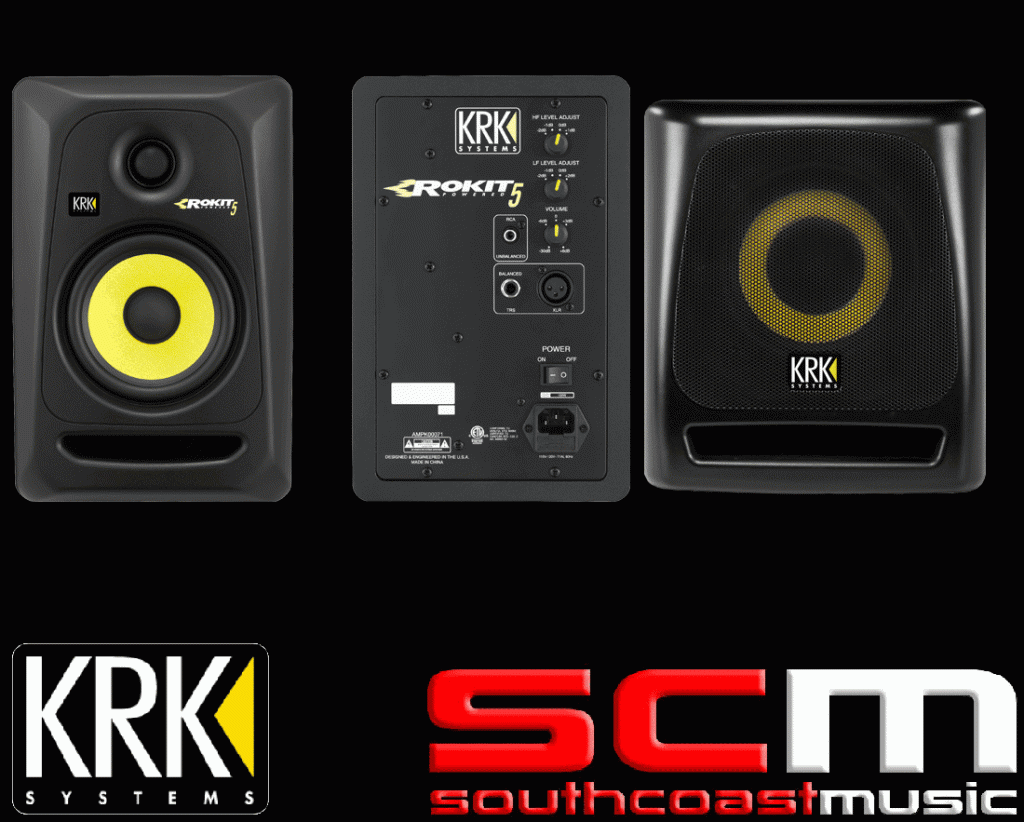

KRK ROKIT 5 Active G3 2-way Pair & x1 8S Active Subwoofer
KRK ROKIT 5 G3 Product Description
KRK Systems is one of the world’s most respected manufacturers of studio reference monitors. In their state of the art design facility, KRK engineers create products that deliver natural and balanced spectral response with low distortion and superior imaging. KRK Studio Monitors have been the professional’s choice of recording engineers and artists for mixing and mastering hit records around the globe, as they need to hear every nuance of the audio being reproduced. KRK ROKIT Generation 3 monitors continue in this design philosophy, so regardless of your musical style, genre, or particular mixing needs, KRK Rokits deliver.
KRK’s ROKIT 5 G3 (Generation 3) powered studio monitors offer professional performance and accuracy for recording, mixing, mastering and playback. The system consists of a 1” soft dome tweeter and 5” glass-Aramid composite woofer. It delivers high frequencies up to 35kHz, vocal clarity and extended bass response. The proprietary bi-amped, class A/B amplifier grants SPL up to 106dB. The ROKIT waveguide is designed to ensure detailed imaging in the listening position. The front-firing bass port reduces boundary coupling to allow flexible positioning in the room while the engineered surface reduces diffraction distortion. Multiple input connections ensure the ROKIT 5 G3 will easily integrate in any system configuration.
As one of the most used Studio monitors in the world, the ROKIT 5 is a high valuable and compact solution towards an accurate mix.
Features:
Bi-amped, class A/B amplifier offering large headroom and low distortion
Proprietary waveguide optimized for superior imaging
1” Soft-dome tweeter provides pristine clarity and extended response up to 35kHz
High-frequency adjustment tailors the system to personal taste
Lightweight, glass-Aramid composite woofer delivers clear midrange and tight bass
Low-frequency adjustment tailors the monitors to taste and adjusts for room acoustics
Front Firing Port — Low-frequency extension while reducing boundary coupling
Radiused edges reduce distortion from diffraction
Low-resonance enclosure for minimized distortion and colorization
Multiple audio input connectors (XLR, ¼”, RCA) for universal connectivity in any studio environment
Factory installed foam pad provides isolation between the speaker and surface
Peak SPL : 106dB
Frequency Response 45Hz – 35kHz (+/- 2 dB)
*Ratings based on continuous power specifications
Specifications:
Configuration:2-Way
System type:Active Studio Monitor
Low-Frequency:5″ Aramid Glass Composite woofer
Mid-Frequency:N/A
High-Frequency:1″ soft dome tweeter
Frequency Response:45Hz – 35kHz
Max Peak SPL:106 dB
Amplifier Class:Class A-B
Power Output:50W
High Frequency:20W
Mid-Frequency:N/A
Low Frequency:30W
Input Impedance (Ohms):10 K Ohm balanced
HF Level Adjust:-2dB, -1dB, 0, +1dB
System Volume:(-30dB – +6dB)
Indicators:Power
Input Connectors:
Unbalanced RCA
Balanced 1/4″ TRS
Balanced XLR
Enclosure Construction:MDF
Finish:Black vinyl wrap
Port Configuration:Front firing slot port
Dimensions (D x W x H):9.06″ (230mm) x 7.28″ (185mm) x 11.10″ (282mm)
Weight:14.1 lbs (6.4 kg)
KRK 8S Active Subwoofer
The 8s powered studio subwoofer builds upon KRK’s legacy for sonic accuracy in a compact form factor. The custom-voiced, glass-aramid woofer delivers tight, defined bass, while the Class-D power amplifier dramatically increases transient response, control and punch. The four-position selectable crossover lets you adjust the subwoofer setting easily to your existing monitors. Pairing the 8s subwoofer with KRK or another studio monitor delivers an optimized mixing and listening experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors without switching off the subwoofer. KRK’s 8s subwoofer doesn’t just deliver precise bass and a rich feature set: it’s the next dimension in subwoofer performance.
KRK 8s Features
8″ glass aramid composite woofer
Bass extension to 30Hz with a max SPL of 112 dB
Footswitch control enables/disables sub and crossover filter (footswitch not included)
Curved design with front-firing bass port for placement flexibility
Powerful, lightweight Class D amplification
Optimized four-position crossover control
Universal connectivity: XLR, 1/4” TRS, and RCA inputs and outputs
Polarity and input sensitivity controls
All-steel grill and 15 mm reinforced MDF enclosure provide maximum strength and protection
Ground lift switch prevents ground loops
KRK 8s Technical Specifications
Configuration:Front Loaded, Vented Subwoofer
System type:Active Subwoofer
Low-Frequency:8″ glass aramid composite woofer, 1.5″ VC
Frequency Response: 35Hz-133Hz
Max Peak SPL:112.8 dB
Amplifier Class:Class D
Power Output:109 Watts Continuous @ 1% THD+N @ 46Hz
SNR (signal to Noise Ratio):92dB
Amplifier Distortion (THD+N): 0.1% @-3dB of Max Power Output 35Hz – 133Hz
Input Impedance (Ohms):9.4 kΩ Balanced or 9.2 unbalanced
Ground Lift:On / Off
Low Pass Frequency:30Hz to 205Hz
HPF bypass:with footswitch only
Footswitch:Optional
Phase:0 or 180 degrees
System Volume:-30dB to +6dB
Indicators:Power/Standby (rear indicator) and Sub On/Mute, HPF bypass (front indicator)
Input Connectors:
XLR Left/Right, 1/4″ TRS Left/Right, RCA Left/Right, 1/4″ footswitch
LFE input:N/A
Output Connectors:
XLR Left/Right, 1/4″ TRS Left/Right, RCA Left/Right
AC Power Input: Selectable 110AV-240AC
Enclosure Construction: 15mm reinforced MDF
Finish: black vinyl wrap
Grille: Steel perf
Dimensions (H x W x D):13.3″ (339mm) x 11.57″ (294mm) x 14.25″ (362mm)
Weight:26.01 Lbs. (11.8Kg.)
* For improvement purposes, specifications and design are subject to change without notice
