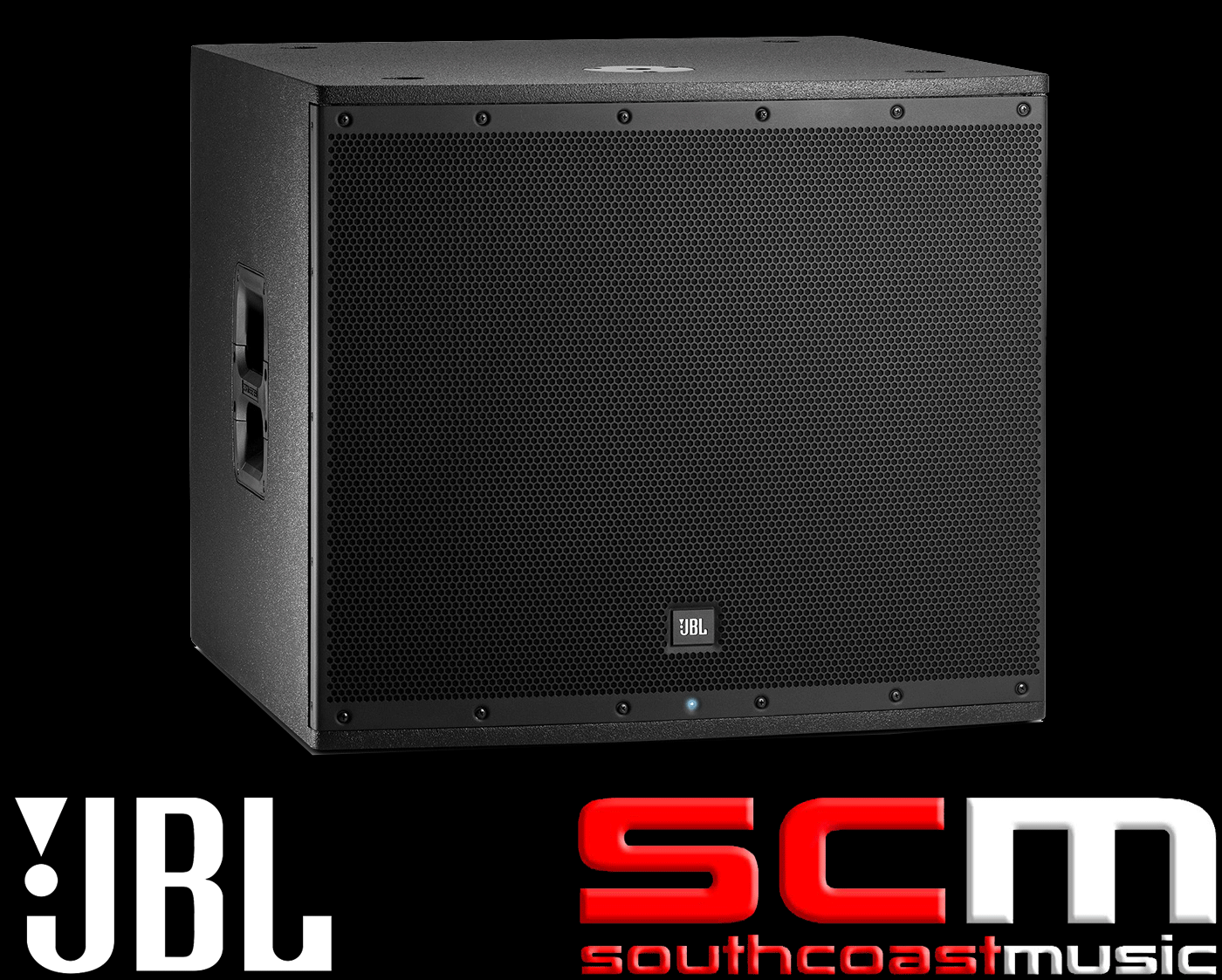

18″ Self-Powered Subwoofer
The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
FEATURES
JBL Premium Transducers
1000 W highly efficient Class-D amplification
Maximum SPL Output: 134dB
System Type: Self powered 18” Subwoofer
Frequency Range (-10dB): 31Hz – 150Hz
Frequency Response (- 3dB): 42.5Hz – 150Hz
Bluetooth Control
• 3 Parametric EQs + Hi & Lo Shelf • Gain and Delay • Save and Recall settings • Polarity Inversion
JBL Engineered Crossover Presets
• 80 Hz • 100 Hz • 120 Hz • EON
M20 Pole Cup
Rugged, stage-ready Duraflex enclosure
SPECIFICATIONS
System Type Self powered 18” Subwoofer
Maximum SPL Output 134 dB
Frequency Range (-10 dB) 31Hz –150Hz
Frequency Response (-3 dB) 42.5Hz – 150Hz
System Power Rating 1000W Peak, 500W Continuous
Input Impedance 22k (balanced)
Line Input Gain 0 to 36 dBu
Line +14dBu
Connectors 2 x Balanced XLR-1/4” combination inputs;
2 x male XLR loop thru out
LED Indicators Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange)
Cooling Passive
AC Power Input 100-120VAC 50/60Hz; 230-240VAC 50/60Hz
AC Power Consumption (120V~) 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max),
1/3rd Power – 2.03A (Max)
LF Driver 1 x JBL 618H 457mm (18”) woofer with 2” voice coil
Crossover Frequency Selectable; 80 Hz, 100 hz, or 120 Hz
Material Duraflex coated wooden enclosure
Suspension/Mounting M20 Threaded Pole Cup
Handles 2
Grille Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing
Dimensions (L x W x H) 582mm x 668mm x 645mm
(22.9” x 26.3” x 25.4”)
Weight 72 lbs (35.5 kg)
Shipping Weight 91 lbs (41.2 kg)
Shipping Dimensions (L x W x H) 803mm x 768mm x 631mm (31.6″ x 30.2″ x 25.1″)
Our price includes Free Delivery To SYDNEY, BRISBANE & MELBOURNE Postcodes.
Please Contact Us for a Very Competitive Shipping Quote for all Other Areas!
