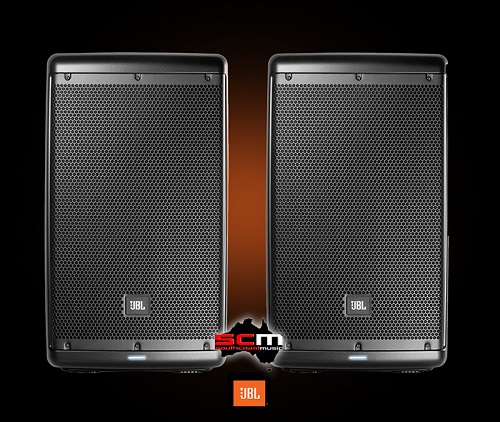

PAIR of JBL EON610 10″ Two-Way Sound Reinforcement 1000 watt Active PA Speakers
• Bluetooth Controlled DSP with User EQ
• 3-Band Parametric EQ + Hi & Lo Shelf
• Main, Monitor, Sub, and Speech Modes
• 100 x 60° Coverage Pattern
• 2 x Combination XLR-1/4″ Inputs
• 60 Hz to 20 kHz Frequency Response
• 124 dB Max SPL Output
• Proprietary Waveguide Technology

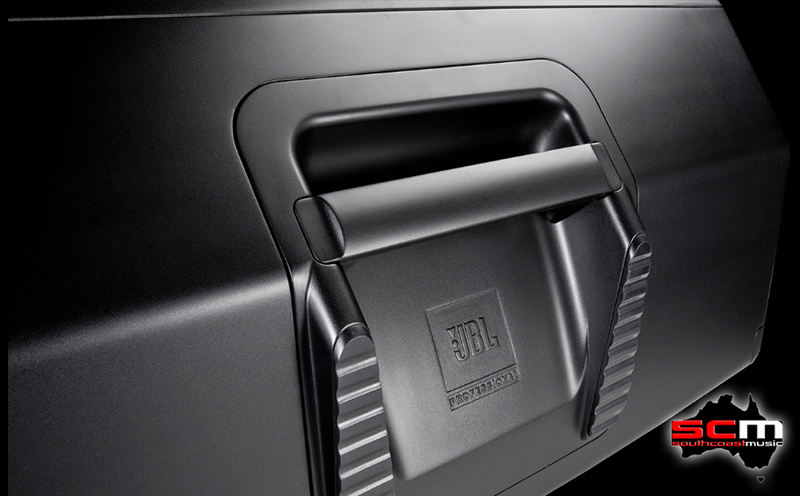

• Rugged Construction and Integrated Handles for Easy Transport
PROVEN JBL SOUND QUALITY AND EASE OF USE FOR MULTIPLE APPLICATIONS
JBL are famous for their speaker technology and sound and the new EON610 is a true step forward in technology developed specifically to deliver the best sound possible regardless of the application.
The JBL EON610 redefines how truly good a compact and affordable self-contained, portable PA system can sound. Included are JBL’s advanced waveguide technology, JBL designed and manufactured transducers and convenient, wireless remote control of onboard DSP EQ parameters via Bluetooth.
The JBL EON610 is a user friendly highly flexible, easy to use, portable system for today’s working musicians and sound providers.

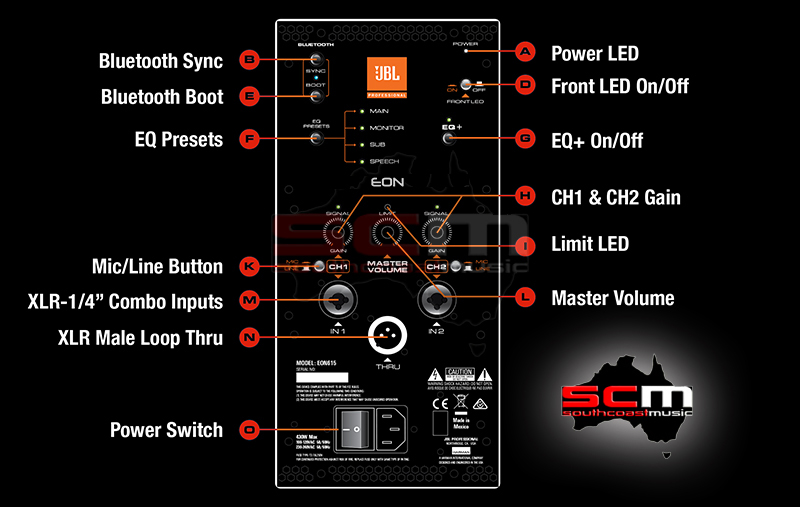

VERSATILE CONNECTIONS
The EON610 features two XLR/Phono combination inputs providing connectivity for microphones and musical instruments. Comprehensive controls are also offered via the EON CONNECT APP.
EON CONNECT CONTROL APP
EON Connect is a smart device application that can control up to four JBL EON610 speakers via the EON’s built-in Bluetooth functionality. With EON Connect, you can this App to control the EON610’s DSP parameters, which include:
• 3 Parametric EQs
• Hi and Lo Shelf
• Delay
• Output mixing
• Preset creation for instant setting recall
• Update your speakers’ firmware
EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of your application and situation.
JBL EON610 SPECIFICATIONS (each speaker)
• System Type: Self powered 10″, two-way, bass-reflex
• Maximum SPL Output: 124 dB
• Frequency Range (-10 dB): 52 Hz – 20 kHz
• Frequency Response (±3 dB): 60 Hz – 20 kHz
• EQ: 3 Parametric EQ’s, High and Low Shelf (Accessable via Bluetooth app only)
• Amplifier Design: High Efficiency Class D
• System Power Rating: 1000W Peak (700 LF + 300HF); 500W Continuous (350W LF + 150W HF)
• Input Impedance: 20K ohms (Balanced)
• Line Input Gain: Infinity to +26.8dB (+14dBu max input level)
• Mic Input Gain: Infinity to +29dB (in addition to line input gain)
• Input Connectors: 2 x Balanced XLR- 6.35mm (1/4″) combination inputs
• Output Connector: 1 x male XLR loop thru out
• LED Indicators: Power, Bluetooth, EQ Preset, EQ +, Signal CH1, Signal CH2, Limit
• Cooling: Passively Cooled (No Fan)
• AC Power Input: 100-120VAC 50/60Hz; 230-240VAC 50/60Hz
• Speaker Specification LF Driver: 1 x 10″ JBL 612H woofer
• HF Driver: 1 x 25.4MM (1″) JBL 2414H-1 polymer diaphragm, neodymium compression driver
• Horn Dispersion/Coverage Pattern: 100º H x 60º V
• Nominal Crossover Frequency: 1.8 kHz
• Enclosure Material: Polypropylene
• Cabinet Design: Multi-purpose Main FOH & Foldback Monitor
• Suspension / Mounting: 36mm Pole Socket with Stabilising Screw, 3 x M10 Suspension Points
• Carry Handles: 1 x left, 1 x right, 1 x top, 1 x bottom (4 total)
• Finish: Black Granite
• Grille: Powder coated perforated steel with acoustically transparent screen backing
• Dimensions: H558 x W322 x D295mm (21.97″ x 12.68″ x 11.61″)
• Net Weight: 11.79kg (26 lbs)
