Fender – Pre-Wired Strat Pickguard, Shawbucker Bridge/Gen 4 Noiseless Neck/Middle HSS, Tortoise 11 Hole Pickguard
• Shawbucker 1 Bridge and Gen 4 Noiseless Middle/Neck Pickups
• SB 1 – alnico 2 magnets for sweet, musical sound
• Low-output pickup with enamel-coated magnet wire for vintage-style tone
• Gen 4 Noiseless – Noise-free, vintage-style single coil tone
• Staggered alnico 5 magnets
• Treble bleed circuit maintains highs when reducing volume
• Tortoise Shell 11 Hole Pickguard

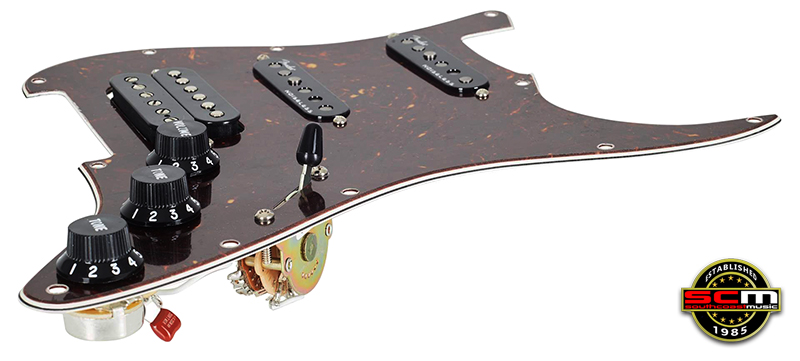

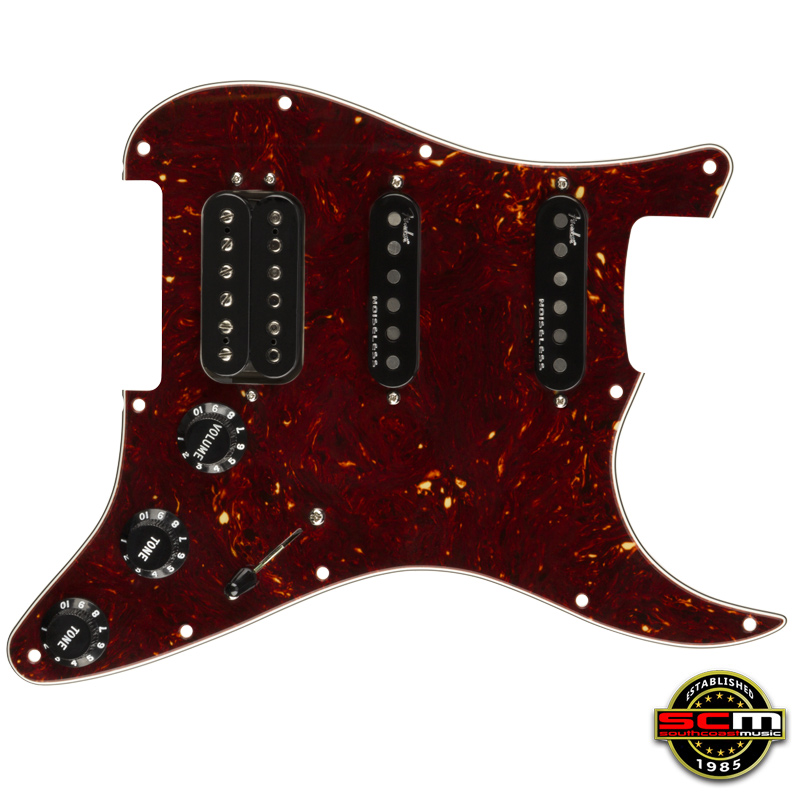

Fender Pre-Wired Strat pickguards are a quick and painless easy way to give your guitar a makeover by replacing your old pickguard and pickups. The Fender Strat HSS SHAW/G4 SHELL offers a faux tortoiseshell pickguard hand-assembled in the same Californian factory as their iconic guitars. Fitted with a Shawbucker humbucker, Fender Gen 4 Noiseless single-coil middle and neck pickups, pickup switch, potentiometers and fully finished electrics, there isn’t an easier way to customise your guitar’s tone.
There’s not much left for you to do other than remove the old pickguard, solder the output jack and ground wires, bolt on the new pickguard and head out into the world armed with classic Fender tone.
The common denominator of the Shawbucker humbucker (created by noted industry guru Tim Shaw) and Gen 4 Noiseless single-coil pickups is their noise immunity. Noiseless pickups are the bedrock of the modern Fender sound delivering revered classic Fender tones with dynamics and shimmering clarity without the annoying hum.
Specifications:
• Series: Fender Pre-Wired Pickguards
• Model Number: 992347500
• UPC: 885978207299
• Pickup Configuration: HSS
• Orientation: Right-Hand
• Pickguard Colour : 4-Ply Tortoiseshell
• To suit: Fender Stratocaster®
• Country Of Manufacture: US
• Pickup Covers: Black
• Control Knobs: Black
• Switch Tip: Black
• Hardware Finish: Chrome
• Mounting Type: 11-Hole Modern
• Bridge Pickup: Shawbucker™
• Middle Pickup: 4th Generation Noiseless™
• Neck Pickup: 4th Generation Noiseless™
• Lead Wire: Vinyl-covered
• Magnet Wire: Enamel-coated
• Shielded: Yes
• Pole Pieces: Neck/Middle: Staggered
• Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)
• DC Resistance: Bridge: 7.6k, Neck/Middle: 10.3k
• Inductance: Bridge: 4.5, Neck/Middle: 3.2 Henries
• Potentiometers: CTS 500K (Volume), CTS 1 MEG (Tone 1 & 2)
• Shipping Dimensions: W31.12 x L24.13 x H5.72 cm / 2.25 x 12.75 x 13.50″
• Shipping Weight: 825.54g
How to install your pre-wired Fender Pickguard
