EV Electro Voice ND76 – Dynamic Cardioid Vocal Microphone
- Superb all-around vocal performance
- Excellent Gain before Feedback
- Crisp, clear and balanced
- Large-diaphragm dynamic capsule
- Creates a rich and detailed frequency response
- Shock-mounted capsule minimises handling noise
- Low frequency bumps and thumps won’t get into the PA
- Humbucking coil guards against line hum
- Use with confidence near speaker cabinets and EMF-generating equipment racks
- Memraflex grille resists denting
- Durable tight-mesh grille withstands extraordinarily rough treatment
- Five Year Warranty
Founded in 1930, today Electro-Voice (commonly referred to as EV) is an American company and one of the world’s leading manufacturers of Professional Audio equipment, including microphones, amplifiers and loudspeakers. Electro Voice is focused on Pro Audio applications such as sound reinforcement and markets products for use by consumers as well as small or large concert venues, broadcasting and houses of worship.
EV Electro Voice ND76 – Dynamic Cardioid Vocal Microphone

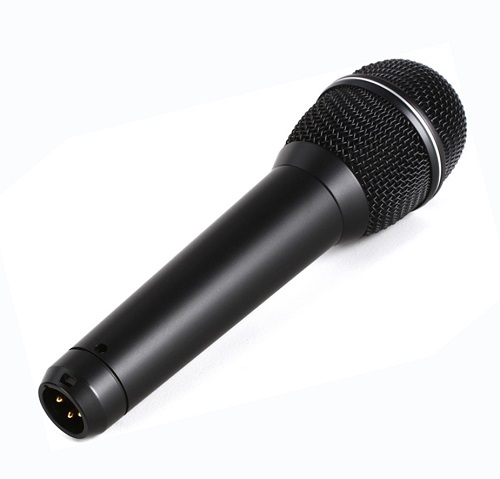

The Electro-Voice ND76 is a robust, high-performance hand held dynamic cardioid vocal microphone. Designed for excellent all-around voice applications, the ND76 capsule is precisely tuned to deliver crisp, clear and balanced vocal presence, as well as superior isolation from sound and spurious vibration on the stage.
The ND76 dynamic capsule contains a large Mylar diaphragm which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high-velocity material for exceptionally fast transient response.
The ND76 features an innovative capsule shockmount system consisting of a 4-point suspension around the circumference of the capsule combined with a tuned pneumatic pump at the capsule base, offering superior handling noise reduction to eliminate mechanical vibrations and noise in the mix.
The ND76 capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. ND dynamic mics can be used with confidence near speaker cabinets and EMF generating equipment racks. The ND76S Memraflex grille is made of a durable tightmesh grille wire that withstands extraordinarily-rough treatment.
Your microphone remains protected and looking good gig-after-gig, year-after-year. For additional protection, the ND76S capsule contains a hydrophobic cloth membrane which prevents moisture and debris from reaching the diaphragm.
Electro Voice ND76 Technical specifications
- Element Type: Dynamic neodymium magnet structure

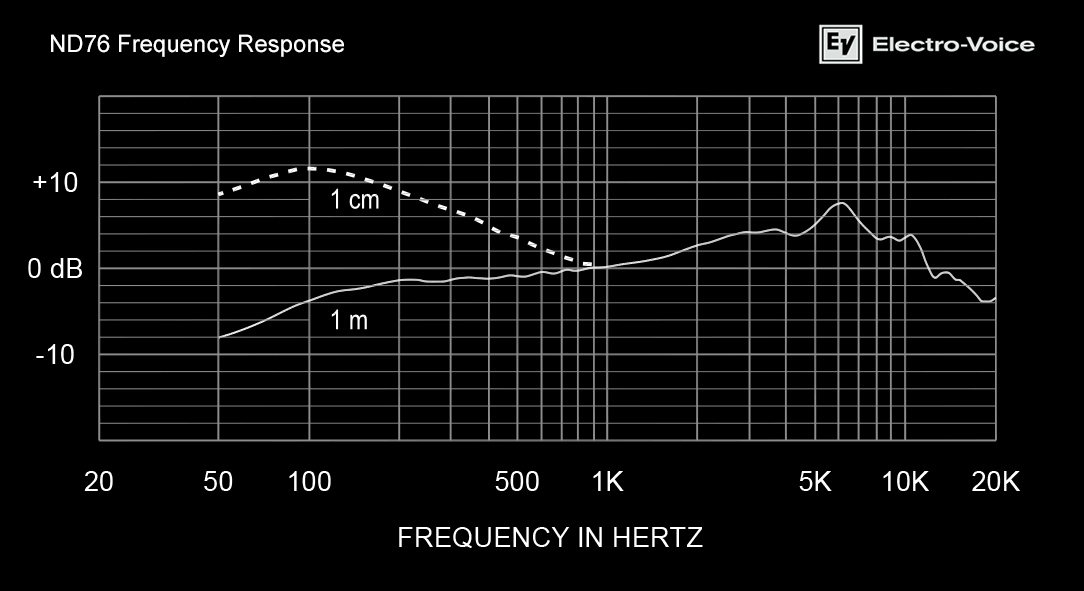

- Frequency Response Close: 30 Hz – 17 kHz
- Frequency Response Far: 70 Hz – 17 kHz
- Polar Pattern: Cardioid
- Sensitivity, Open Circuit Voltage @ 1 kHz: 2.4 mV/Pascal
- Maximum SPL: >140 dB
- Polarity: Pin 2 positive, reference to pin 3 with positive pressure on diaphragm
- Impedance: 350 ohms balanced (low-z)
- Microphone Connector: 3-pin, XLR-type
- Finish: Black polyurethane paint
- Material: Zinc die cast handle, Memraflex grille screen

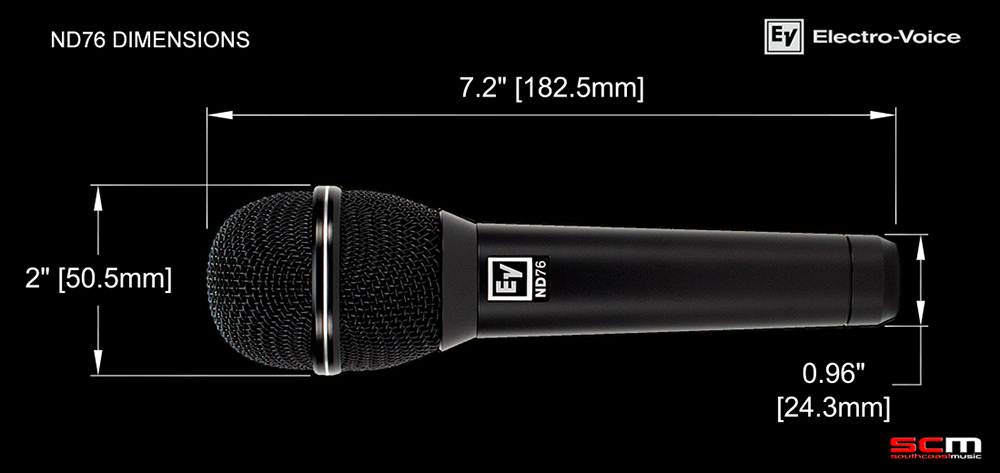

- Dimensions, Length: Diameter: Shank: 7.2 in (182.5 mm) 2.0 in (50.5 mm) 0.96 in (24.3 mm)
- Furnished Accessories: (1) Zippered Gig bag, (1) stand clip and (1) Euro thread adapter
