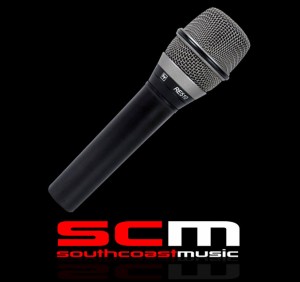

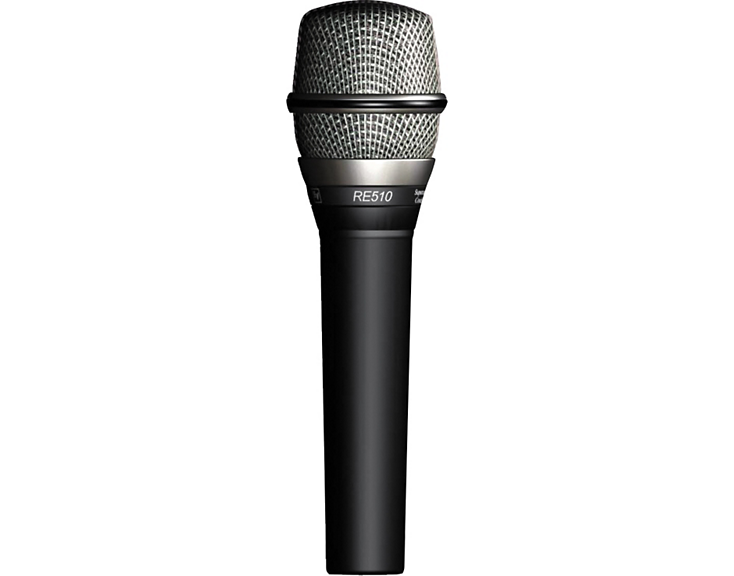

electrovoice RE510
professional quality handheld microphone
RE510 Supercardioid Condenser Microphone
o Premium-grade handheld condenser microphone
o Supercardioid pattern for excellent feedback rejection and acoustic isolation
o Wide dynamic range
o High-compliance shock mount effectively eliminates handling noise
o Tight-mesh Memraflex™ grille
o Multistage pop filter
The Electrovoice RE510 is, in a word…outstanding. It has audio presence that cuts right through the mix with a relatively flat and balanced frequency response. Perfect for capturing the highs of a female jazz vocalist, or the power of a male vocalist, the off-axis rejection is incredible making the RE510 an amazing live performance microphone.
The EV RE510 is no one-trick pony however and are sure to be blown away by its performance as an instrument mic. Able to withstand Sound Pressure Levels of up to 140dB makes it a great kick drum mic and perfect for recording Brass and Orchestral instruments.
EV electrovoice RE510 specifications:
Case Material: Die Cast Metal
Connector Type: 3-pin XLR
Diameter (Max): 50 mm (1.97″)
Element: Condenser (self-biased)
Finish: Non-reflecting Black
Frequency Response: 50 – 20,000 Hz
Impedance, Low-Z balanced: 150 Ω
Maximum SPL (1% THD): 140 dB
Mic Type: Handheld
Open Circuit Voltage: 2.5 mV/Pascal

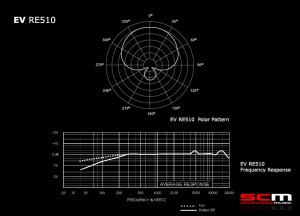

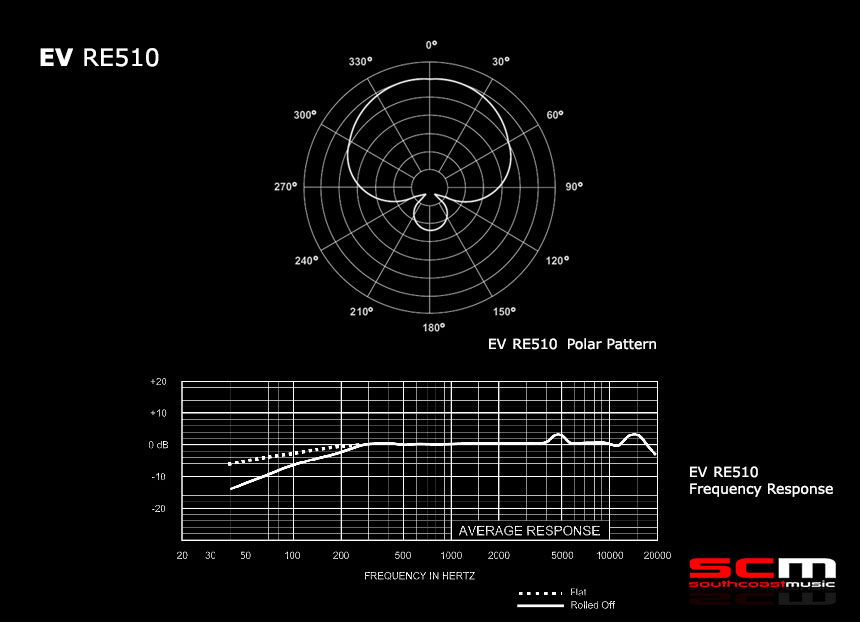

Polar Pattern: Supercardioid
Power Requirement: 24 – 52 VDC Phantom
Height: 180 mm (7.09″)
Weight Net: 215g (7.58oz)
The ElectroVoice EV RE510 microphone offers the performance of a Large Diaphragm Studio Condenser Mic stage friendly Hand-Held microphone. The 5/8″-diameter self-biased condenser capsule delivers big-capsule studio performance without sacrificing off-axis performance or transient response.

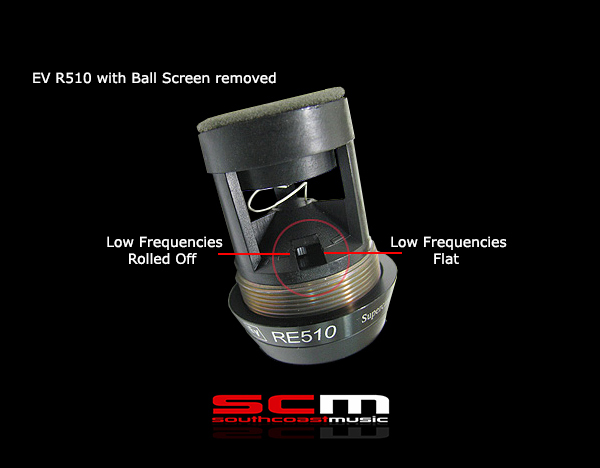

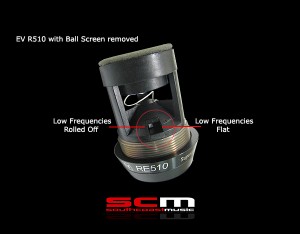

The supercardioid polar pattern delivers superior feedback rejection and acoustic isolation. An innovative Low-frequency roll-off switch enables tailoring of low-frequency response to meet application requirements and remove low frequency rumble.
The precision electronic design of the RE510 Microphone provides extremely low distortion and outstanding transient response. High current differential output stage can drive long microphone cables without loss of performance. The mic’s Warm Grip handle provides a comfortable feel while the multistage pop filter eliminates plosives.
PLEASE NOTE! This microphone requires phantom power.
The Electro-Voice® RE510 is guaranteed against malfunction due to defects in materials or workmanship for a period of three (3) years from the date of original purchase.
