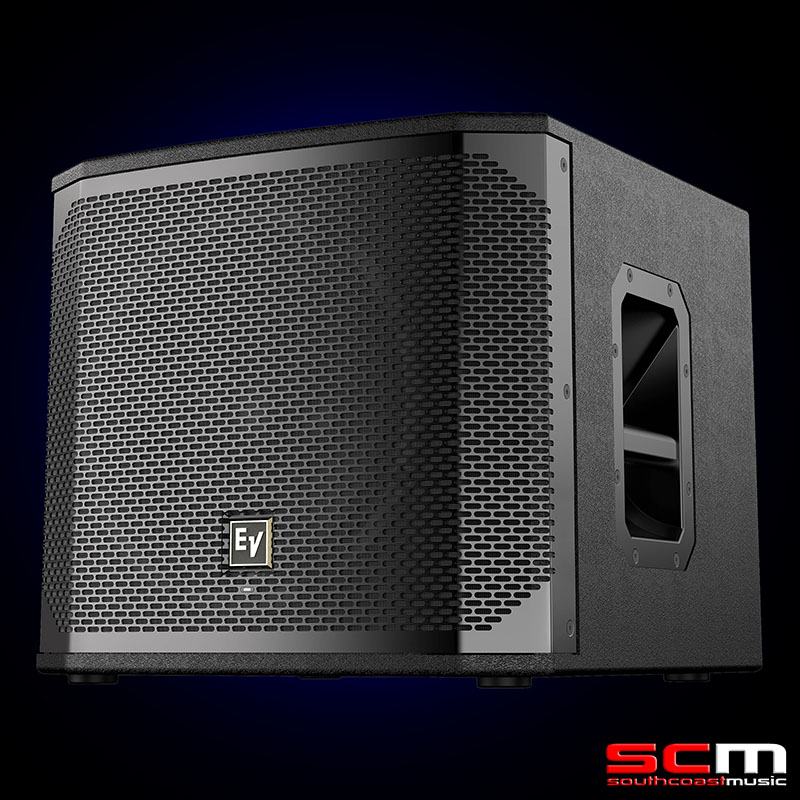

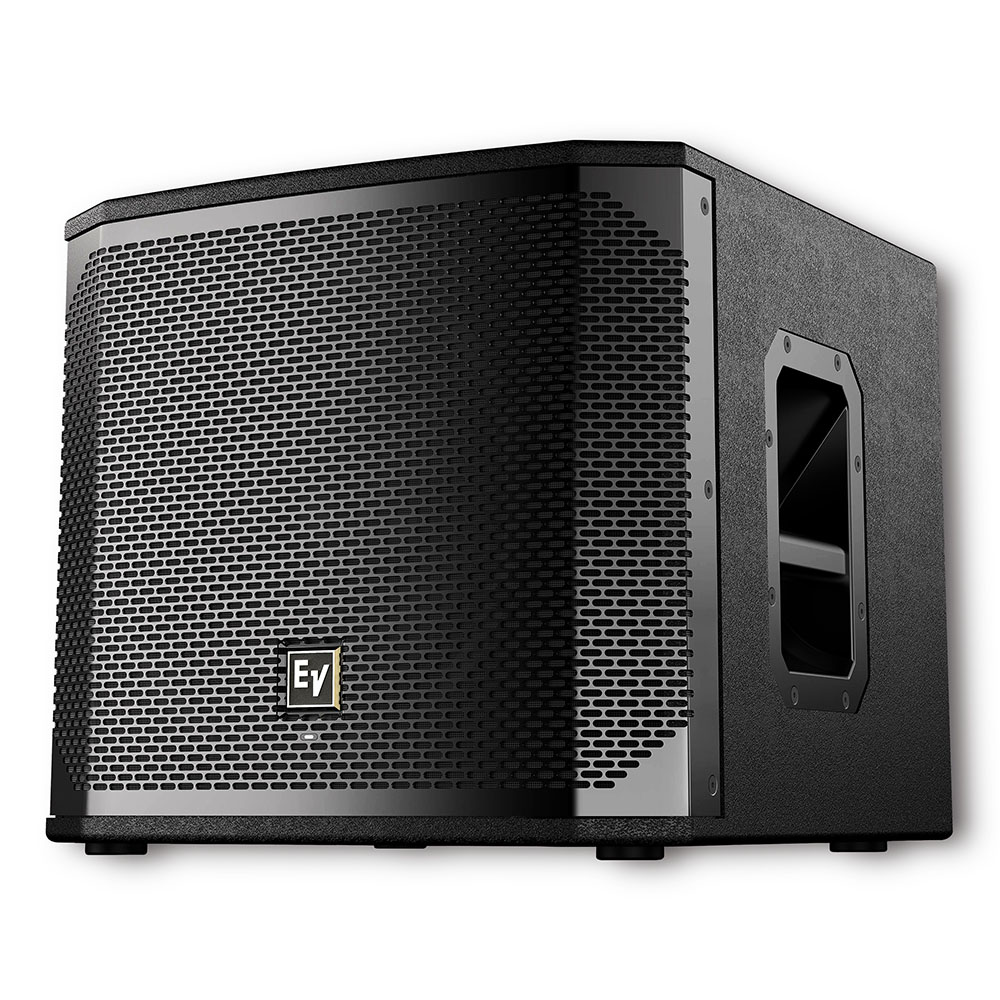

EV ELECTROVOICE ELX200-12SP 1200 WATT 12″ POWERED SUBWOOFER
• Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app*
• The ideal solution for both portable and installed applications
• Heavyweight performance in a lightweight package
• QuickSmartDSP provides best‑in‑class processing via EV’s signature single‑knob user interface with LCD
• Electro‑Voice‑patented SST waveguide design for a more compact footprint with enhanced acoustic performance
The ELX200 series offers professional Electro‑Voice audio quality, high precision control and robust, EV‑engineered components in an ultra‑lightweight package — a truly potent blend of performance and portability.
EV ELECTROVOICE ELX200-12SP 1200 WATT 12″ POWERED SUBWOOFER
QuickSmartDSP offers best-in-class processing and features easy setup via three presets, sub/top system-matching, five user-programmable presets, visual monitoring of the onboard limiter status, input level control and meters along with a master volume control to optimise your gain structure. All of these functions are visible from the backlit LCD screen.
The Electrovoice ELX200-12SP active sub is powered by a high-efficiency 1200 W Class-D power amplifier that can deliver up to a massive 129 dB peak SPL by utilising a ultra efficient, high-sensitivity transducer designed and engineered inhouse by EV.
The ELX200-12SP is the ideal solution for portable and installed applications and features professional-grade hardware that includes an integrated M20 threaded pole mount plate and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind.
• Frequency response (-3 dB): 49 Hz – 135 Hz¹
• Frequency range (-10 dB): 41 Hz – 165 Hz¹
• Maximum SPL: 129 dB²
• Power rating: 1200 W
• LF transducer: EVS-12L 300 mm (12 in)
• Low-Pass frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
• Connectors: 2 x XLR/TRS combo jacks and2 x XLR link outputs
• Enclosure: 15 mm plywood with EVCoat
• Grille: 18 AWG steel with powdercoat
• Color: Black
• Dimensions (H x W x D): 397mm x 445mm x 457mm (16.7″ x 17.6″ x 18.0″)
• Unit weight: 19.1kg (42.2 lb)
• Shipping weight: 22.3kg (49.2 lb)
• Power consumption: 100 – 240 V~, 50-60 Hz, 1.8 A³
¹ Full space measurement using music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
