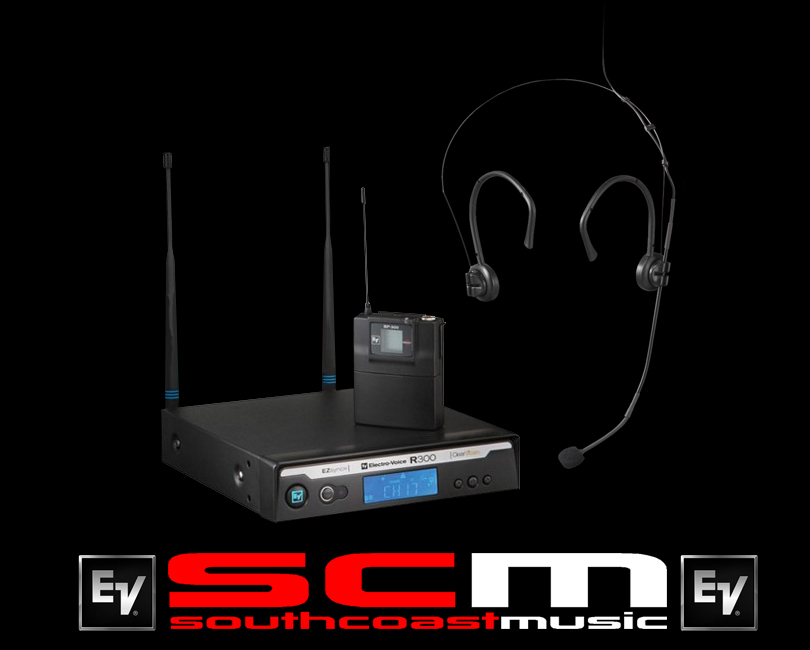

ELECTRO VOICE RE300 EC WIRELESS MICROPHONE SYSTEM WITH HEADSET MIC
System Includes:
o EV R300 receiver
o EV BP300 Bodypack Transmitter
o EV HM3 Omnidirectional Headworn Microphone
o EV Travel Case
Unique features such as One-Touch ClearScan, and EZsync, make the R300 quicker and easier to set up and use than any other similarly priced wireless system, while its rack-mountable metal receiver, sturdy metal bodypack and handheld transmitters and remote-mountable antennas are of a build and performance quality usually reserved for the highest-end professional products.
This combination of value, professional features, and road-ready ruggedness make the R300 a perfect choice for a wide range of wireless applications, from live vocals and instruments to professional presentations.
Unique features such as One-Touch ClearScan and EZsync make the R300 quicker and easier to set up and use than any other similarly priced wireless system. The rack-mountable metal receiver, sturdy metal bodypack transmitter and remote-mountable antennas are of a build and performance quality usually reserved for the highest-end professional products.

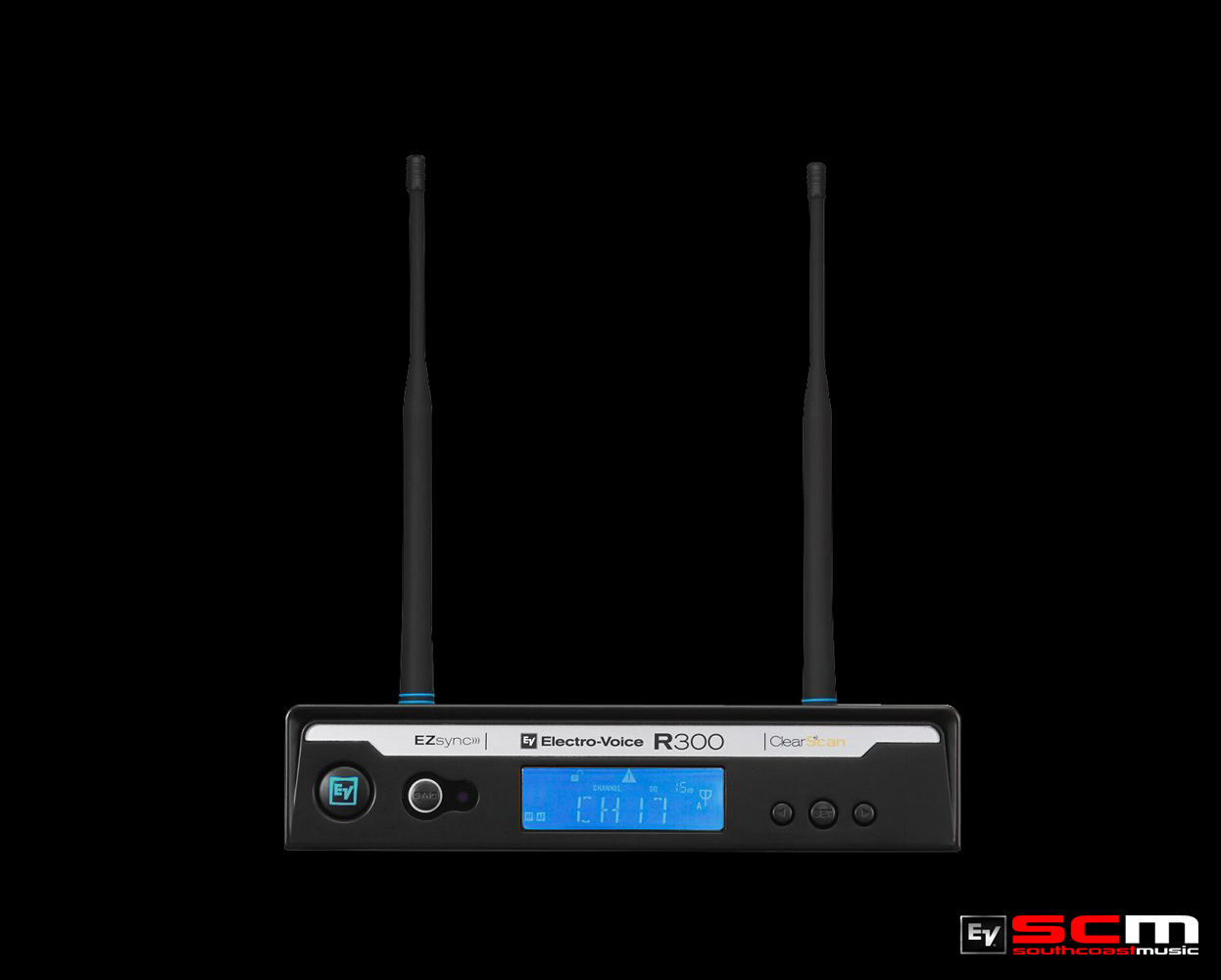

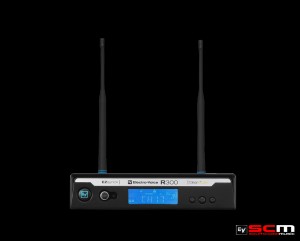

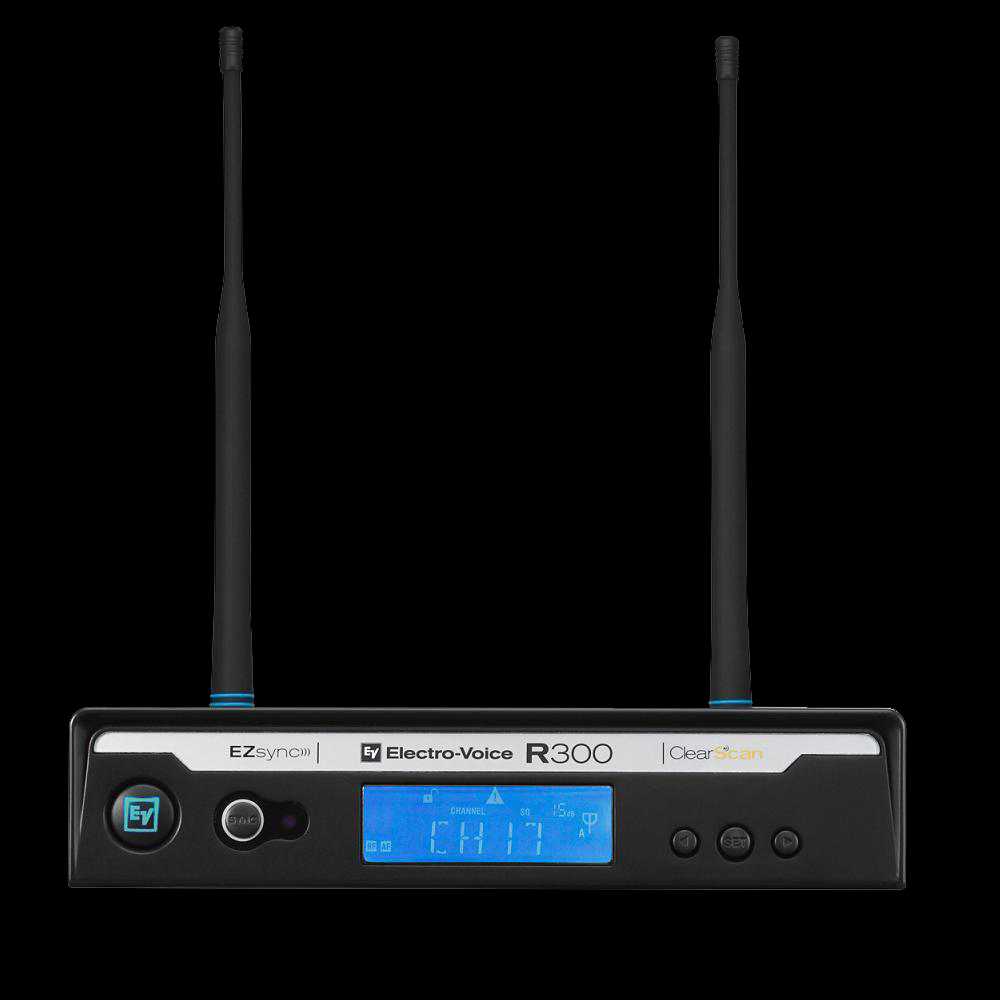

EV R300 Receiver
With a sleek, low-profile design and durable construction, the R300 receiver system is equally at home on a table top or in a 19-inch equipment rack. Its simple controls and easy-to-read display are designed to provide the ultimate in user-friendly operation. Optional Rack-mount kits, Rack Cases and front-mount antenna cables are available for professional installations. For applications with up to four receivers in one rack, the Optional APD4+ antenna splitter can provide antenna and power feeds.

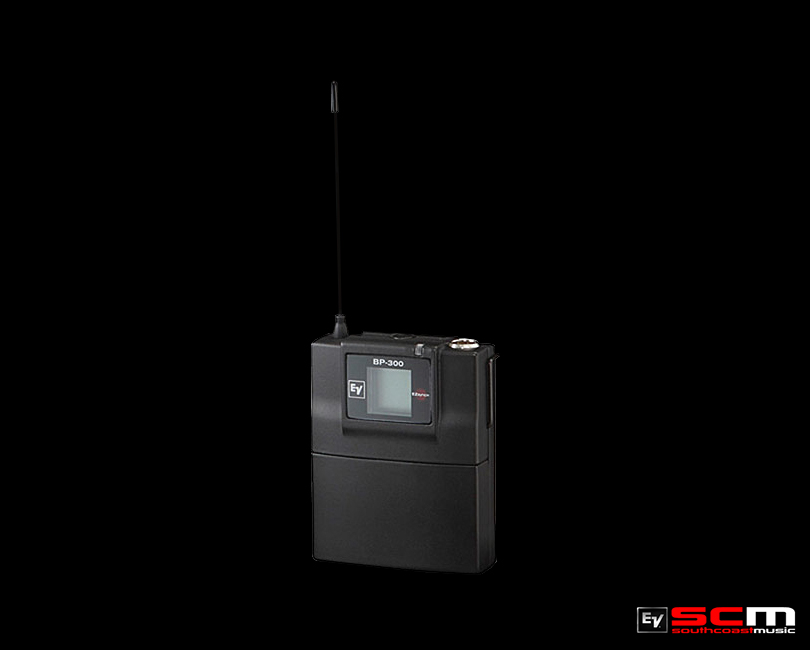

EV BP300 Bodypack Transmitter
The Electro Voice BP300 is superb bodypack transmitter that is rugged, compact and easy to use. Made from lightweight diecast alloy, the BP300 only needs two AA batteries to provide 14 hours of use making the BP300 one of the most economical transmitters around for applications that require daily operation. The unit’s mute function keeps the RF signal live while muting the audio, protecting your channel and preventing noise in the audio system. A TA4 connector allows the unit to be used with any Electro-Voice lapel or head-worn microphone.

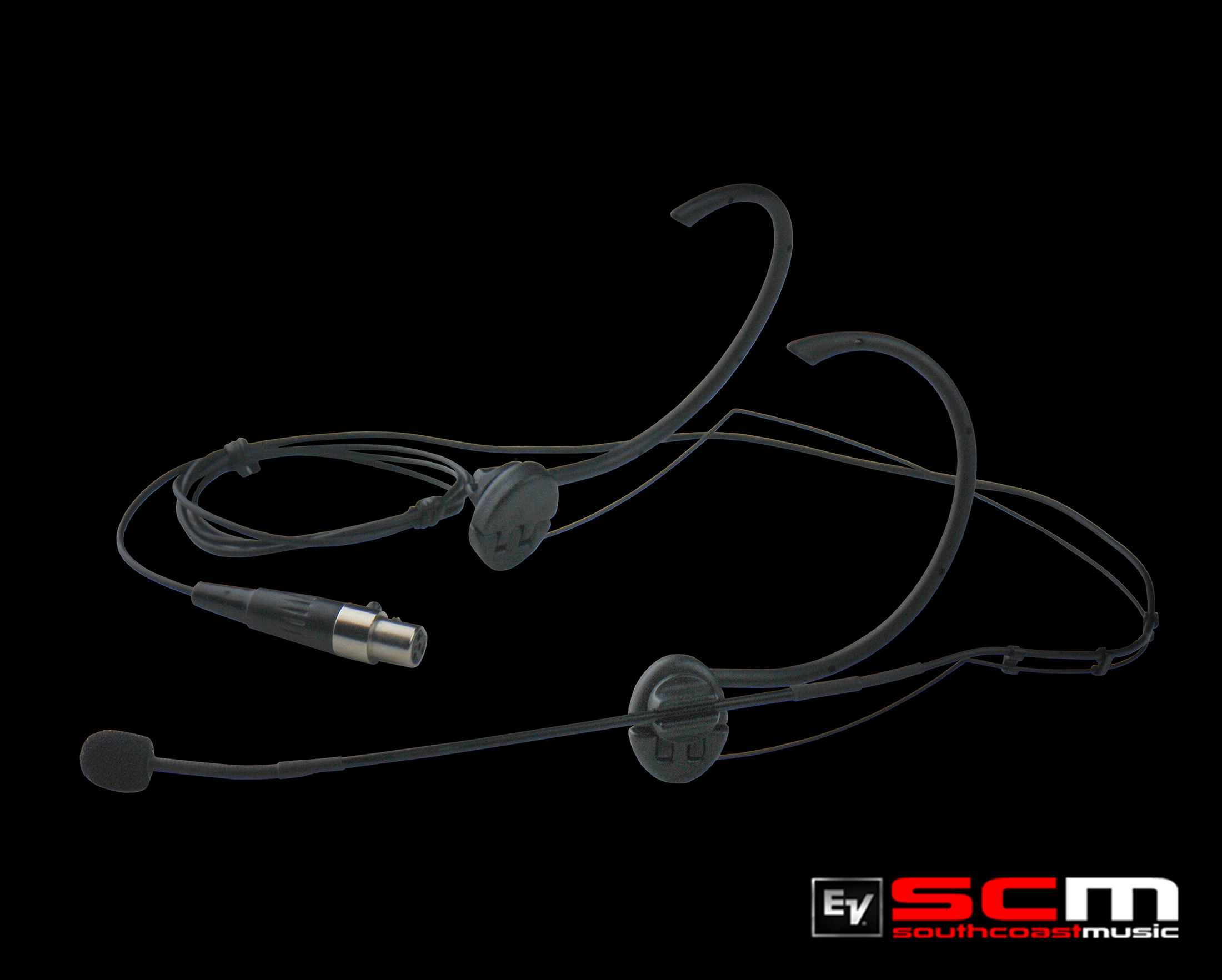

EV HM3 Headset Microphone
The Electro-Voice HM3 Omnidirectional Headworn Microphone has been designed and engineered to provide comfortable and light weight hands-free speech and vocal operation with the Electro-Voice R300 wireless microphone system. The EV HM3 is the perfect solution for Lead Vocalists, Singing Instrumentalists, Dancers, Aerobics Instructors and other Instructors. The EV HM3 connects to the EV BP300 beltpack transmitter.
EV ClearScan Automatically Finds the Best Channel
Proven at the highest level of touring and trusted in thousands of installations around the world, Electro-Voice’s industry-leading ClearScan system scans through the R300’s 32 preset channels and selects the clearest channel . . . all with the touch of a single button. In an increasingly challenging RF world, ClearScan gives you the confidence to go wireless without worry, ensuring noise-free operation and the longest operating range.
EV EZsync: Match Frequencies Fast
Matching the R300’s transmitter and receiver frequencies is also as simple as the touch of a button. EZsync uses infrared technology to set the transmitter to the correct frequency, confirming operation in one automatic step. Error-free wireless setup has never been easier.
o Designed for Club Sound, House of Worship, Lecturers, Sports Venues and other applications.
o ClearScan finds the clearest channel available with the touch of one button
o EZsync infrared channel transfer from the receiver to the transmitter for easy and error-free setup
o 14 hour battery life from two AA alkaline batteries
o Rugged metal transmitters with backlit LCD display and battery gauge
o 32 preset channels, with compatible groups of 8 channels for simultanious use
o Detachable half-wave receiver TNC antennas allow for use with the APD4+ antenna distribution system
o Metal receiver chassis with optional rack mount ears and front mount antenna cables
o HM-3 Omni-directional headworn for clear, articulate vocals
ELECTRO VOICE RE300 Specifications:
o Antennas: Flexible TNC 1/2 Wave
o Audio Frequency Response – 80 Hz – 18kHz +/-2dB
o Balanced Line Level Output – (RMS Adjustable) 10 – 100 mV
o Battery Life – 14 hours with (2) AA alkaline typical
o Case Material – Diecast Metal Alloy
o Connector Type – 1/4 inch unbalanced, 3-pin XLR balanced
o Controls – on/off, Set, Up, Down, Sync
o Distortion – (@ 1 kHz, 40 kHz deviation) Less than 1.0, 0.4 typical %
o Diversity – True Antenna
o Dynamic Range – Greater than 95 dB
o Element – HM-3 Omni-directional headworn
o Number of Channels – 32 per band, 8 Simultaneous
o Power Supply – 12 VDC, 500mA max
o Receiver Type – Synthesised PLL (Phase Locked Loop) Agile UHF
o RF Frequency Range – 16 MHz
o RF Output – 8 mW typical
o RF Sensitivity – (12 dB SINAD) less than 1.0 uV
o Signal-to-Noise Ratio – (A-weighted) greater than 100 dB
o Squelch – Tone code plus Amplitude
OUR PRICE INCLUDES AUSTRALIA-WIDE DELIVERY WITH TRACKING
WHO ARE “ELECTROVOICE”?
For more than 85 years, EV has designed and engineered leading-edge sound reinforcement solutions that empower the performer, exceed the expectations of the audio professional and elevate the audience experience.
Electro-Voice are responsible for many important innovations in audio technology that are still in use today. They include Noise-Cancelling Headphones, Humbucking microphone coils, the use of Neodymium Magnets in microphone and Speaker manufacture, the Variable D microphone, Constant Directivity Horns and much more.
When you buy an Electrovoice product you are buying into a legacy of excellence and quality that has been engineered and built to stand the test of time.
