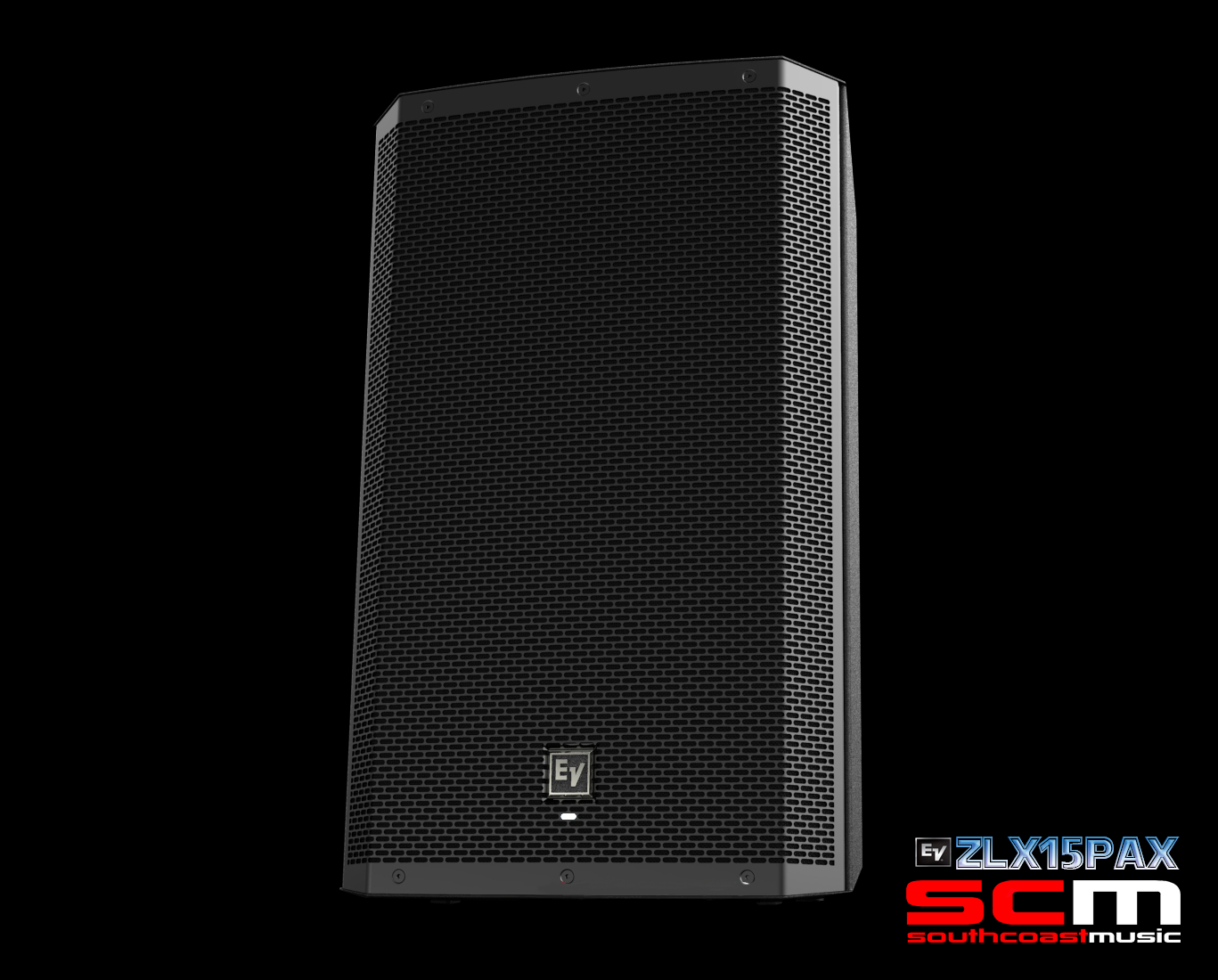

EV ELECTRO VOICE ZLX15P AX
1000 WATT 15″ + HORN POWERED SPEAKER
This is the new revised ZLX15P-AX. This new P-AX version has higher tolerance to the fluctuating 240VAC power levels that can be experienced in many Australian locations meaning better performance and class leading reliability – backed up by a National FIVE Year Warranty.
Extend your low-end with this portable powerhouse. The new electrovoice ZLX-15P-AX delivers crisp, clean highs and tight, deep lows for larger spaces – all with enough amplifier headroom to make sure you’re heard both loudly and clearly.
- 1000 W (Class D); 127 dB max SPL; 42 Hz – 20 kHz
- 15” woofer and 1.5” high-frequency titanium compression driver
- 17.3kg (38.0 lbs)
Breakthrough design. Brilliant price. Breathtaking performance…with the new ZLX P-AX, Electro-Voice have created a truly astonishing product.
Delivering best-in-class performance across every detail, the Electro-Voice ZLX-15P AX is a 1000 watt powered PA enclosure featuring a high performance 15″ woofer and 1.5″ titanium compression driver all weighing less than 18kg.
By utilising the industry’s most trusted components, the EV ZLX15PAX has been engineered to exacting standards delivering exceptional audio quality for larger applications, with or without a subwoofer. Boasting performance beyond the scope of other small-format loudspeakers, the EV ZLX15P AX is the standout choice for smaller-venue sound reinforcement or stage-monitoring applications.
ZLX combines decades of proven Electrovoice Professional Audio Engineering know-how with a bold new look, user-friendly features and an extraordinary amount of control over your sound – all with the renowned EV quality and reliability the pros trust. The ZLX-15PAX is perfect for use as either mains or monitors, and represents a new standard for houses of worship, musicians, DJs, and all performers looking for more from a portable powered loudspeaker.
Electrovoice Industry Standard Bi-Amped Output
Each ZLX-15P AX is a true 2-way bi-amp design, driving 1,000 watts between the woofer and tweeter cone. The 15″ low frequency woofer is an EVS-15K, specially-designed to deliver a low end that is tight and clearly defined even when pushing out maximum volumes. The 1.5″ DH-1K high-frequency transducer is a titanium compression driver. The speakers benefit hugely from the authentic Class-D amp design in the ZLX-15P AX, which allows the amplifier to use power far more efficiently than an AB switching system, eliminating much of the heat gain common in other powered speakers.
Cleverly Integrated DSP Interface
The ZLX-15P AX comes with an onboard DSP that not only adds great-sounding signal processing, but is also incredibly simple to use. Rather than presenting an additional bank of knobs or switches, the DSP onboard the ZLX-15P AX is simply activated by holding down the Volume knob. Menu items then appear on the LCD control screen and can be navigated turning the knob.
This gives you control over Mode and Speaker Location, allowing you to customise the frequency balance and dynamic range of the speaker for Music, Live, Speech, or Club applications. It also allows you to tweak the speakers for use as a Personal Monitor, or to specify output for a Pole or Bracket mount-type situation. Treble, Bass, and Sub outputs are also accessible via the DSP.
Versatile Ins and Outs for Any Situation
The ZLX-15PAX’s I/O is straightforward and useful. 2 x XLR/TRS inputs, and 1 x XLR output allows you send to balanced sound to and from the speaker, so you can daisy chain other ZLX-15P AXs as required. A handy 3.5mm (1/8″) auxiliary input allows you to run an external stereo supply from an iPod or similar sound source.
EV ELECTRO VOICE ZLX15P-AX Features:
– Custom built 1000 watt Class-D Bi-Amplified design
– 15″ Woofer
– 1.5″ High Frequency Titanium Compression Driver
– DSP control with presets for Use Type and Speaker Orientation
– LCD display for DSP control
– Input level meters
– Independent amplifier control
– Lightweight at 17.3 kgs
– Super-durable Polypropylene case
– 18 Gauge Steel grille
– Integrated pole mount cups
– Patented split-baffle design
– Frequency Range: 42 Hz – 20 kHz
– Massive 127dB SPL
– FIVE YEAR WARRANTY
