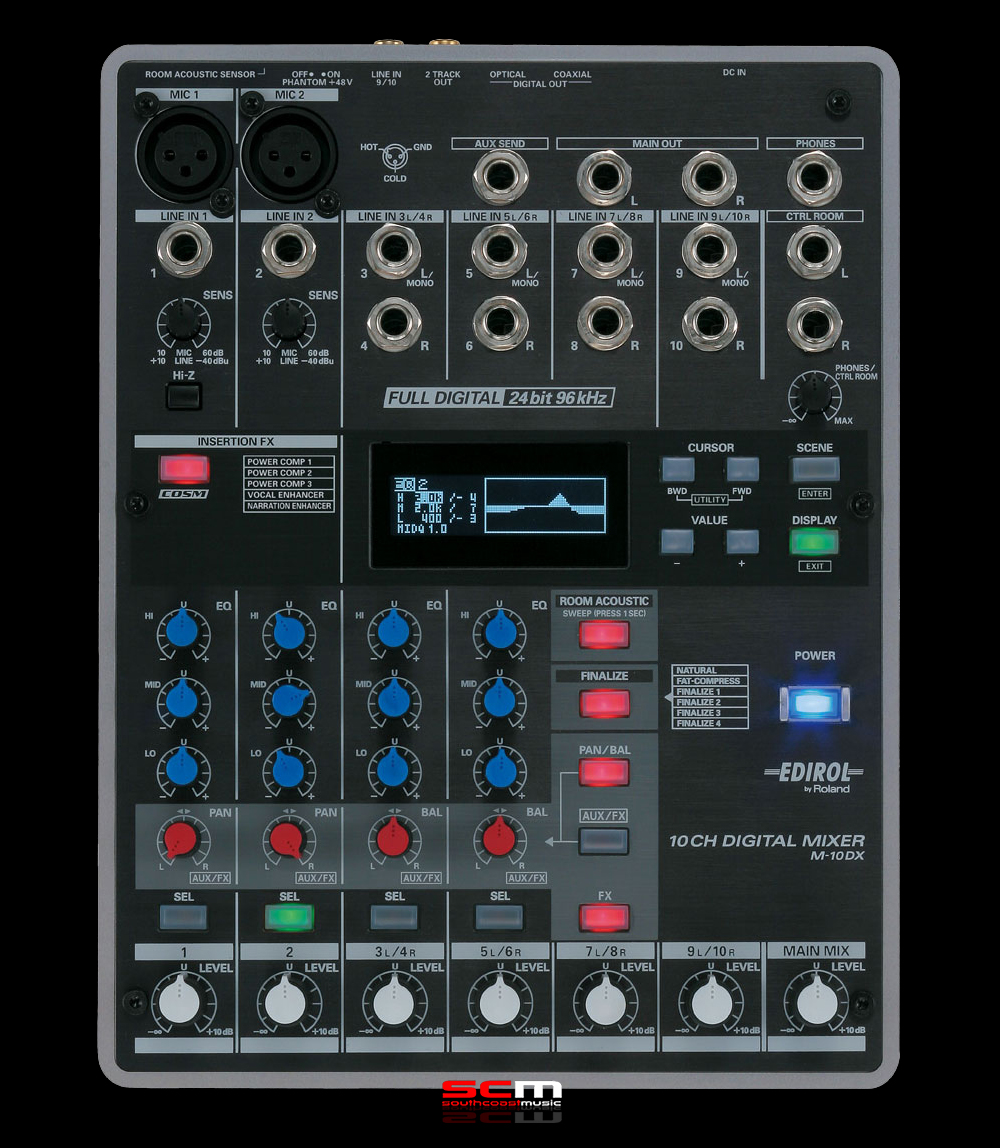

EDIROL by ROLAND M-10DX 10 CHANNEL DIGITAL MIXER – Digital Effects & Spectrum Analyser
o 10-channel full digital mixer with M-16DX flagship features
o 3-band EQ controls (Q & Freq.) with graphic LCD for precise tone shaping
o Portable, all-in-one design
o “Room Acoustic Control” for instant automatic room compensation
o Built-in Studio quality effects, including COSM insert effects, reverb effects and finalize effects
o Flexible analog I/O and digital output, including two high-quality mic preamps
o 240V AC adaptor included
The Edirol/Roland M-10DX is a compact, affordable digital audio mixer for project studios, video editing workstations, home studios, etc. Based on the M-16DX, the M-10DX combines an even smaller profile with powerful DSP processing for a mixer that fits within the budget and size constraints of any project studio. The M-10DX packs an amazing amount of high-end features into its small frame, including a 24-bit/96kHz processing engine and a backlit LCD so you can see the effects in operation, as well as a graphical spectrum analysis of the audio signal.
The M-10DX delivers a 24-bit 96kHz mixing environment with built-in DSP processing and control.
The mixer features 1o inputs of balanced TRS 6.3mm (1/4″) phono connections and two XLR microphone inputs on channels one and two. Channels 3/4, 5/6, 7/8 and 9/10 are stereo paired for keyboards and stereo line devices. Digital stereo I/O is supplied with S/PDIF coaxial and optical Tos-link connectors.
The mixer’s internal DSP engine features plenty of high quality effects and mastering processing. Room Acoustic Control uses a built-in microphone to analyse room acoustics and compensate for the frequency response of your studio.
The M-10DX packs all the featured by digital console users in a compact, space efficient unit with an affordable price.
24-Bit 96kHz Resolution
The M-10DX is a compact and powerful mixing solution, bringing the high 24-bit 96kHz environment to home and desktop studios.
Room Acoustic Control Processing
Room Acoustic Control uses a built-in microphone to analyze room acoustics and compensate for the frequency response of your studio.
Powerful DSP
Powerful DSP processors include mastering processors, graphic EQ, echo and reverb effects.
EDIROL by ROLAND M-10DX 10 CHANNEL DIGITAL MIXER features and specifications:
Number of Input Channels
– 10 channels
AD/DA Conversion
– 96.0 kHz: 20 Hz to 40 kHz (+3/-3 dB)
– 48.0 kHz: 20 Hz to 22 kHz (+3/-3 dB)
– 44.1 kHz: 20 Hz to 20 kHz (+3/-3 dB)
Residual Noise Level (IHF-A, typ.)
– MAIN MIX LEVEL knob = -∞
– Channel LEVEL knobs = -∞
– MAIN MIX LEVEL knob = U
– Channel LEVEL knobs = -∞: -88 dBu
– MAIN MIX LEVEL knob = U
– Channel LEVEL knobs = U: -82 dBu
Nominal Input Level
– MIC connectors 1–2: -60 to -10 dBu
– LINE IN jacks 1–2: -40 to +10 dBu * Maximum input level: Nominal input level + 22 dB
– LINE IN jacks 3–10: +0 dBu
– LINE IN jacks 9–10 (RCA pin type): -10 dBu, * Maximum input level: Nominal input level + 18 dB
Input Impedance
– MIC connectors 1–2: 2.7 kΩ
– LINE IN jacks 1–2: 28 kΩ
– LINE IN jacks 3–8: 20 kΩ
– LINE IN jacks 9–10 (RCA pin type): 20 kΩ
Nominal Output Level
– +0 dBu, * Maximum output level: Nominal Output Level + 22 dB
Recommended Load Impedance
– 10 kΩ or greater
Display
– Graphic LCD 122 x 32 dot (with back-light)
Connectors
– MIC connectors 1–2: XLR type (balanced/phantom power +48 V)
– LINE IN jacks 1–10: 6.3mm (1/4″) TRS phono (balanced)
– LINE IN jack 1: supports use of hi-impedance
– LINE IN jacks 9–10: RCA pin type
– MAIN OUT jacks L–R: 6.3mm (1/4″) TRS phono (impedance balanced)
– AUX SEND jack: 6.3mm (1/4″) TRS phono (impedance balanced)
– 2 TRACK OUT jacks L–R: RCA pin type
– DIGITAL OUTPUT jack/connector: Optical type, Coaxial type
– PHONES jack: Stereo 6.3mm (1/4″) TRS phono
– CTRL ROOM jacks L–R: 6.3mm (1/4″) phono (impedance balanced)
DSP processing
– Room Acoustic Control (built-in microphone)
Finalize
– Enhancer/Multi-band Compressor-Limiter
Insertion effects
– Power compressor/Vocal enhancer/Narration enhancer, Echo/Reverb: Short echo/Echo/Room reverb/Small hall reverb/Large hall reverb
Power Supply
– DC9V (240V AC adaptor) included
– Alkaline dry battery LR6 (AA) type x 8 or Nickel metal-hydride battery (HR15/51) x 8
Current Draw
– 950 mA,
Expected battery life under continuous use (figures will vary depending on actual conditions of use)
– Nickel metal-hydride: 3 hours
– Alkaline: 1.5–2 hours
Phantom Power
– +48 V/5 mA (each input)
Accessories
– Owner’s manual, 240V AC adaptor
Warranty
– One Year
Dimensions
– W198.6mm x H60.9mm x D262.2mm (7.81″ x 2.39″ x 10.32″)
Weight
– 1.3 kg (2lbs 14oz)
