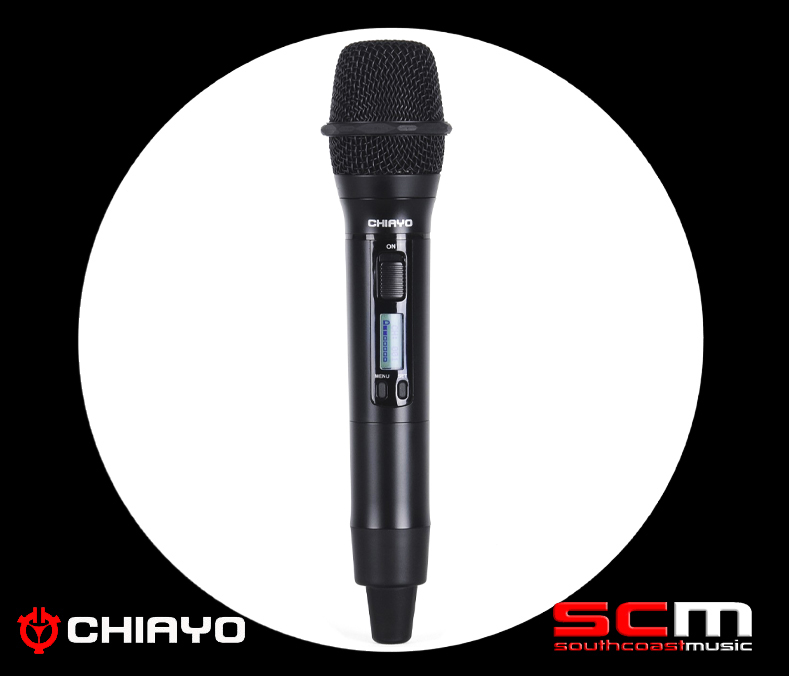

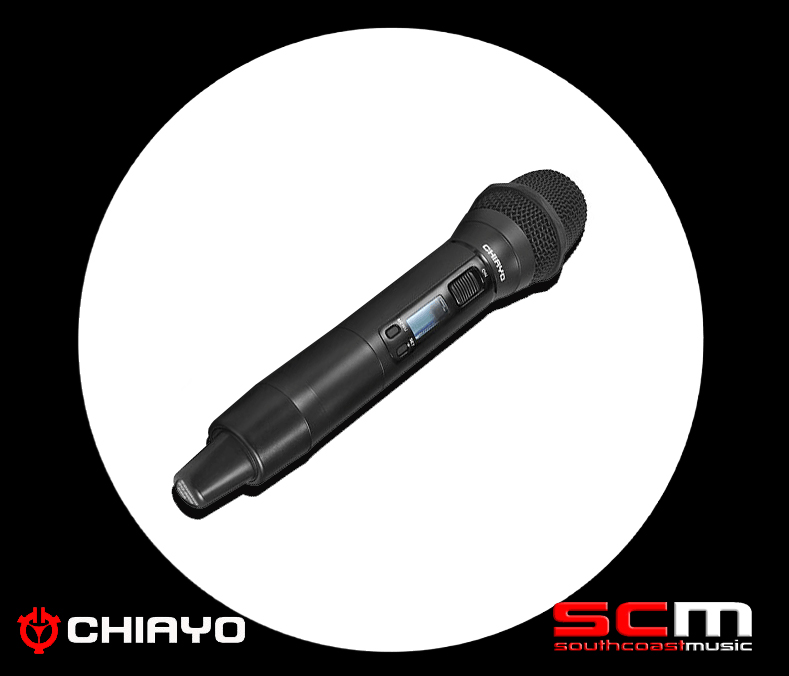

Chiayo SQ6100C-6 Handheld Wireless Condenser Microphone Transmitter 650-675Mhz
- To Suit compatible Chiayo Portable PA Systems
- 100 Selectable Channels within the 650-675MHz Frequency Range
- Includes a High Performance Audio-Technica Condenser Microphone Capsule
- Compatible with Chiayo SDR5100M, 6000 and 8000 Module Receivers (optional – not included)
The Chiayo SQ6100C-6 is a high quality wireless handheld transmitter designed to work with the Chiayo Wireless Receivers such as the SDR5100m as used in the StagePro, Challenger 1000 and Victory 2000 Portable PA systems as well as the 6000 and 8000 Module Receivers.
Not all Chiayo systems come standard with Receivers, if you are unsure about your system, feel free to contact us should you have any questions regarding compatibility.
With 100 selectable channels within the 650-675MHz range, the Chiayo SQ6100C-6 is suitable for use in a number of locations in Australia. Click on the image below to check the frequency compatibility for your area – you will need to input a postcode.
Chiayo SQ6100C-6 Handheld Wireless Microphone Transmitter Features
- Multi-function LCD display for channel/frequency, battery level indicator, Alkaline/NiMH battery selection.
- Patented IrDA technology for 2-way data transfer between transmitter and receiver.
- Hidden antenna.
- Detachable microphone capsule design.
- Audio-Technica Condenser Microphone Capsule.
- Handling Noise Free.
- Rubberised non-slip coating.
- Rugged metallic housing design.
- Uses 2 x AA batteries.
- Long operating hour up to 16 hours.
- Matching battery charger: HC-92 (optional)
Chiayo SQ6100C-6 Handheld Wireless Microphone Transmitter Specifications
- Frequency Range: UHF 650-675 MHz
- Switching Bandwidth: 25 MHz
- Switchable Channels: 100
- 2-way synchronisation: Yes
- RF Power Output: < 35mW**
- Spurious Emission: > 60 dB below carrier
- Dynamic Range: > 110 dB
- Display Screen: LCD
- T.H.D: < 0.5%
- Peak Deviation: ±40KHz
- Antenna: Built-in
- Battery Type: AA*2
- Operating Life (Alkaline): 16 hours
- Charging Function: Yes
- (Optional) Battery charger: HC-92
- Microphone Capsule: Audio-Technica Condenser
- Dimension (mm): Ø53*256 (metal)
- Weight: 298g
