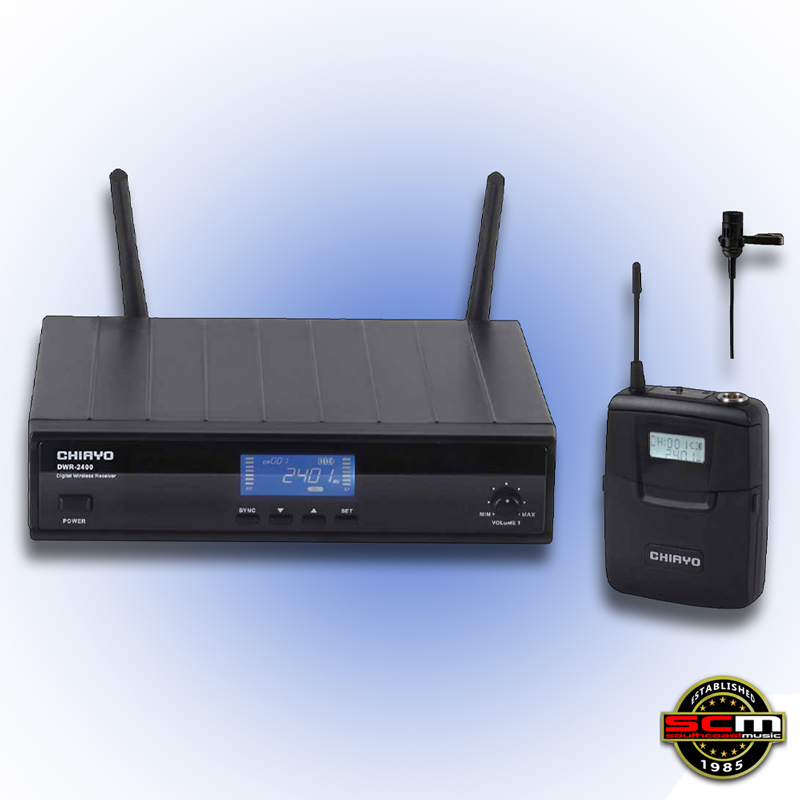

CHIAYO DWR2400 & DB2400 BP Kit CW2400BP
• DWR2400 2.4GHz True Diversity Receiver
• DB2400 Belt Pack Transmitter
• MC16 Lavalier Microphone
• Compatible with the (Optional) HC92 charging station
Chiayo’s new digital wireless microphone system – the DWR-2400 receiver with the DB-2400 Belt Pack wireless transmitter and MC16 Lapel microphone is a game changer. With up to 81 selectable frequencies (expandable to 189 frequencies), this system is capable of operating over an outdoor distance of 100m. The Receiver and Belt Pack Transmitter both incorporate an LCD display, providing management and configuration within the 2.4GHz frequency range.
This 2.4GHz Digital system utilises an uncompressed audio signal with proprietary encryption for transmitting high-fidelity audio with an ultra-low latency of 0.004s and reboot time of 0.2s. High-end Pro features include automatic frequency scanning with adjustable RSSI level. The DWR2400 receiver can switch between single and dual-channel mode and comes with real time sensitivity gain control.
The DB2400 Belt Pack transmitter can operate for up to 12 hours on 2 x AA batteries and includes a slide switch to lock it to standby mode.
The Chiayo MC-16 is a unidirectional lavalier microphone, meticulously designed for various high-quality audio output needs. Its unidirectional design effectively reduces background noise, ensuring clear and pure sound output. The lightweight clip-on design allows users to easily attach it to clothing, freeing up their hands and making it suitable for extended use. Whether it’s for public speaking, teaching, or conferences, the MC-16 delivers exceptional audio quality, making your voice clearer and more powerful. It is the ideal tool to enhance the effectiveness of your presentations and perfectly paired with the DB2400 Belt Pack transmitter.
Digital Wireless Audio – The Game Changer
The benefit of Digital Wireless cannot be overstated. Analog connects your Microphone to the Receiver via a radio frequency, sending the signal over the “airwaves”. Analog signal paths can become congested introducing noise and interference.
Digital Wireless Systems on the other hand convert the Analog Signal into a Digital Signal (a series of ones and zeros) at the point of transmission. The Receiver then decodes the signal back into an Analog Audio Signal. The Receiver ignores anything that isn’t “ones and zeros” thereby reducing noise and interference and enhancing the Audio Signal.
Suits High Density Installations and Applications
2.4 GHz devices work in a larger frequency band and therefore potentially offer more channels and greater potential density than lower frequency devices.
Interference Avoided
The Chiayo Digital Wireless Microphone system is able to change frequencies seamlessly on the fly, easily avoiding potential interference from other wireless technologies such as WiFi and Bluetooth using the 2.4GHZ band.
Reduced Latency
There are no latency issues with analog as audio travels at the speed of light. Latency however, was an issue with early digital wireless microphone systems due to the time taken to convert and process the signal. Chiayo’s ultra-low latency of 0.004s is virtually undiscernible to most listeners!
Encryption
If you need to encrypt the signal then you have to go digital, although not a concern for the average user…
Contact us to get your hands on Chiayo’s new digital wireless microphone system.

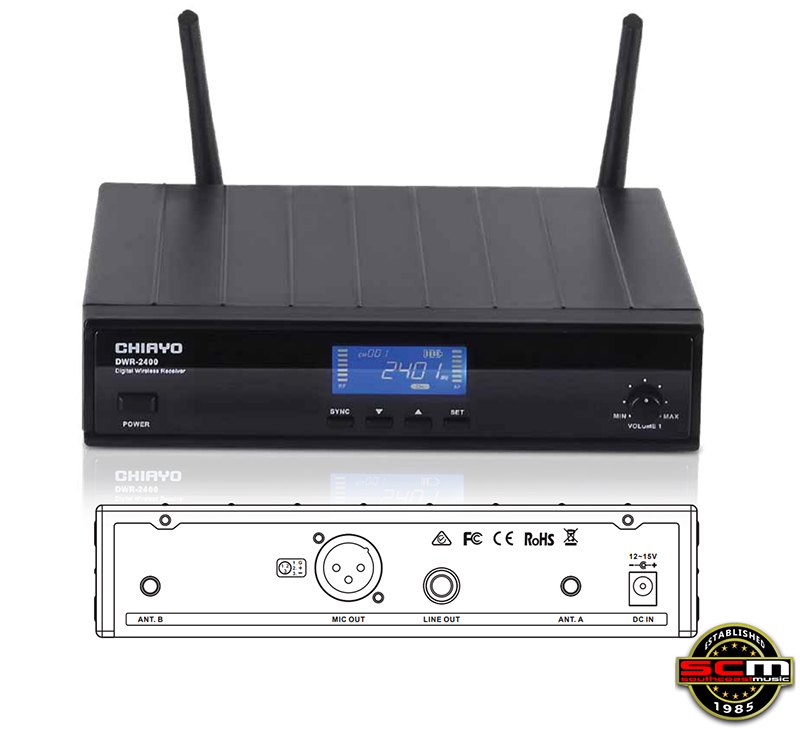

CHIAYO DWR2400 – 2.4GHz True Diversity Receiver Features
• Uncompressed audio signal with proprietary encryption transmits high-fidelity sound quality.
• Automatic data correlation for high stability and noise immunity.
• Ultra-low Latency of 4ms and quick reboot time of 0.2s.
• Up to 81 selectable frequencies (expandable to 189 frequencies)
• Automatic frequency scanning with adjustable RSSI level.
• 100 metre Operating distance in true diversity mode. (Line of sight)
• License-free 2.4GHz band

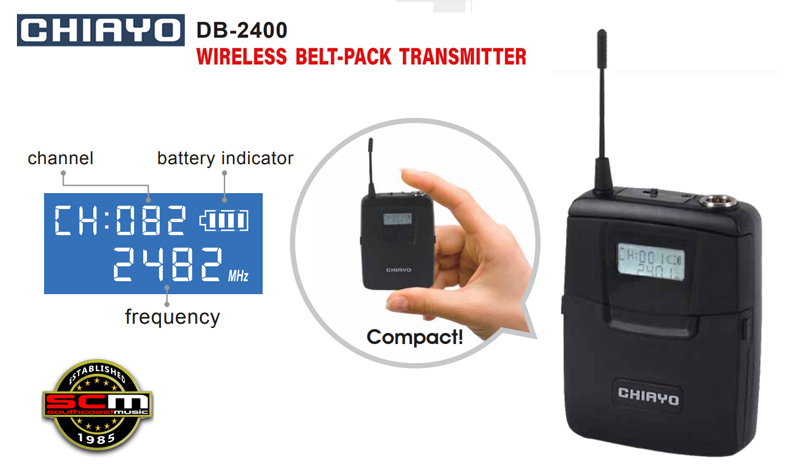

CHIAYO DB2400- 2.4GHZ Beltpack Features
• Clear and intuitive LCD display for easy operation and quick set-up
• Up to 81 selectable frequencies (expandable to 189 frequencies)
• Various lavalier/headset options for professional live sound
• Operating time up to 12 hours with 2 x AA Batteries
• Optional HC92 Battery Charger Available (For rechargeable batteries only)
• Sturdy ABS housing

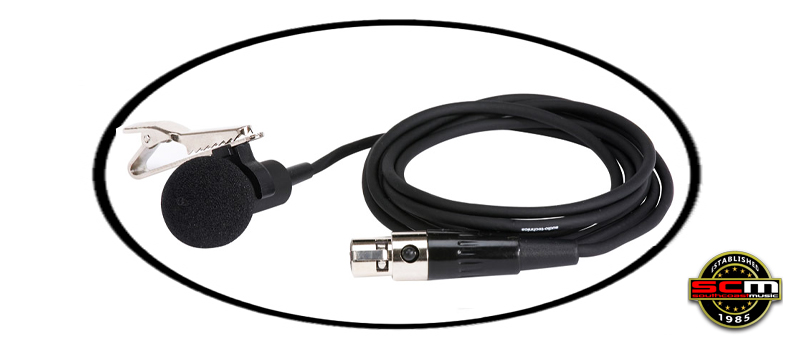

CHIAYO MC-16 Lavalier Microphone Features
• Microphone Type: Condenser
• Sensitivity: -60dB (0dB=1V/Pa at 1KHz)
• Output Impedance: 1KΩ at 1KHz
• Polar Pattern: Uni-Directional
• Frequency Response: 80Hz – 16KHz
• Operating Voltage: 1.5~10V DC
• Current Consumption: ≦0.5mA
• S/N Ratio: ≧60dB
• Connector: Mini XLR
• Weight: 20g
ABOUT CHIAYO
The Chiayo Electronics Company was founded in 1971 in Chiayi City, Taiwan with their main focus on Electronic (Electret) Condenser Microphones. Chiayo’s passion for innovation led to the first FM wireless microphone system to be the developed and manufactured in Taiwan. Chiayo followed up this milestone by pioneering wireless microphone systems from VHF, UHF, Infrared and fixed frequency – right up to the Digital systems of today. Chiayo’s reputation grew quickly and they soon became an OEM manufacturer for many of the world’s oldest and most recognized microphone brands.
After more than fifty years, Chiayo is now recognised worldwide as a leading designer and manufacturer of professional wireless microphone systems and wireless portable sound systems. Chiayo’s strength lies in its vast experience and industrial know-how in the field. This valuable heritage of technical knowledge, skill and experience have enabled Chiayo to enjoy the confidence of the most demanding customers in the world.
