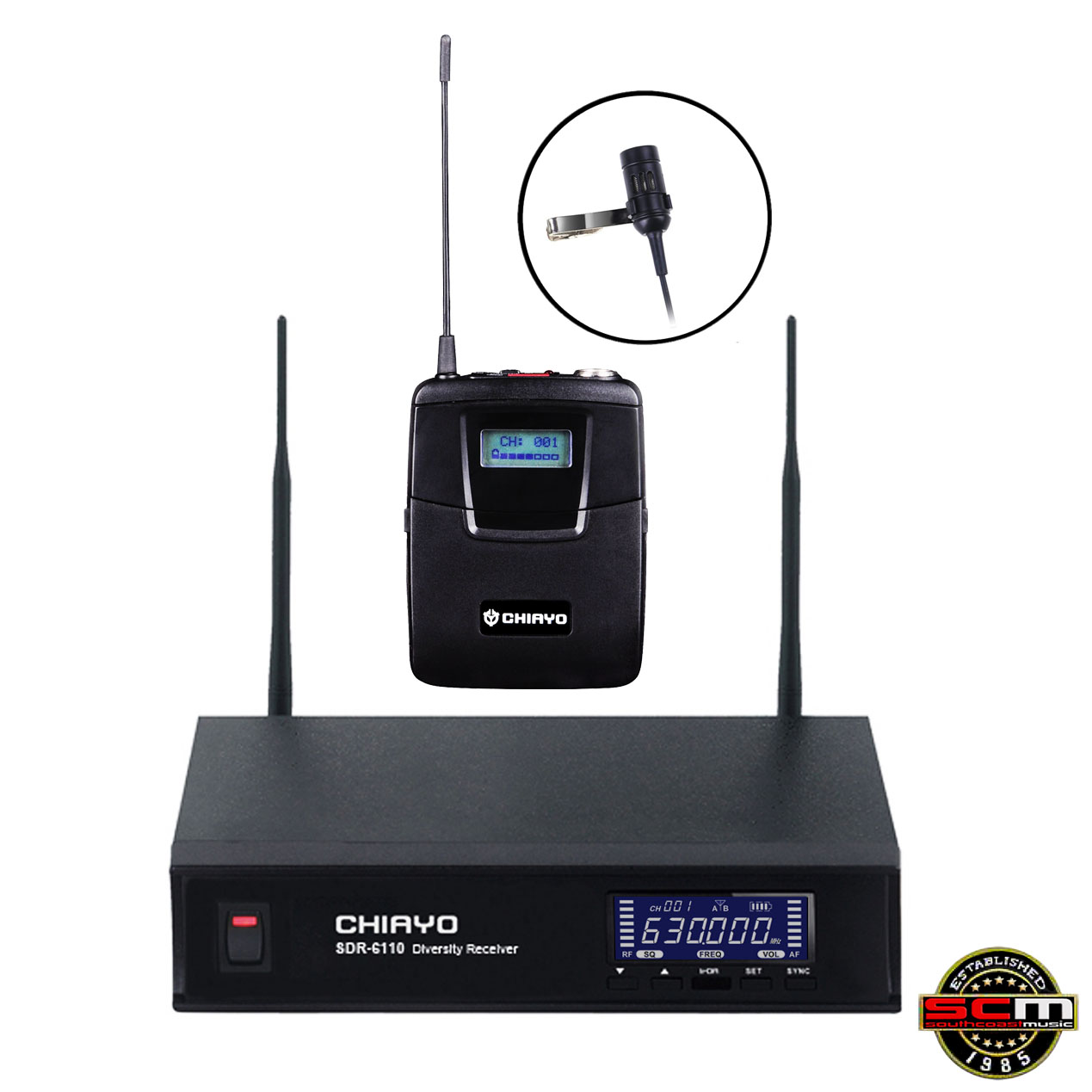

Chiayo CW6110B-6 UHF Microphone kit SDR6110 / SM6100 with MC16 lavalier microphone
The Chiayo CW6110B is a high quality UHF wireless microphone solution comprising a rack-mountable Receiver, Belt-Pack (Bodypack) Transmitter and Lavalier (Lapel) microphone. The CW6110B-6 operates in the 650-675MHz frequency range.
The Chiayo Electronics Company was founded in 1971 in Chiayi City, Taiwan. The company’s initial focus was on Electret Condenser Microphones (ECM) and they soon became leaders in that field. A few years later Chiayo recorded another first by introducing the first FM wireless microphone in Taiwan. This was followed by pioneering wireless microphone systems all the way from VHF, UHF, Infrared and fixed frequency to the more modern PLL (Phase locked loop) – Synthesised technology of today.
Today, Chiayo is a leading designer and manufacturer of professional wireless microphone systems and wireless portable sound systems. It’s also one of the few companies in this field in the world that can boast its own original RF (Radio Frequency) and AF (Audio Frequency) technology, from the entry level to the state-of-the-art PLL-Synthesised multi-channel UHF system with proprietary features. The strength of Chiayo lies in its vast experience and industrial know-how in the field. This valuable heritage of technical knowledge, skill and experience have enabled Chiayo to enjoy the confidence of the most demanding customers in the world.

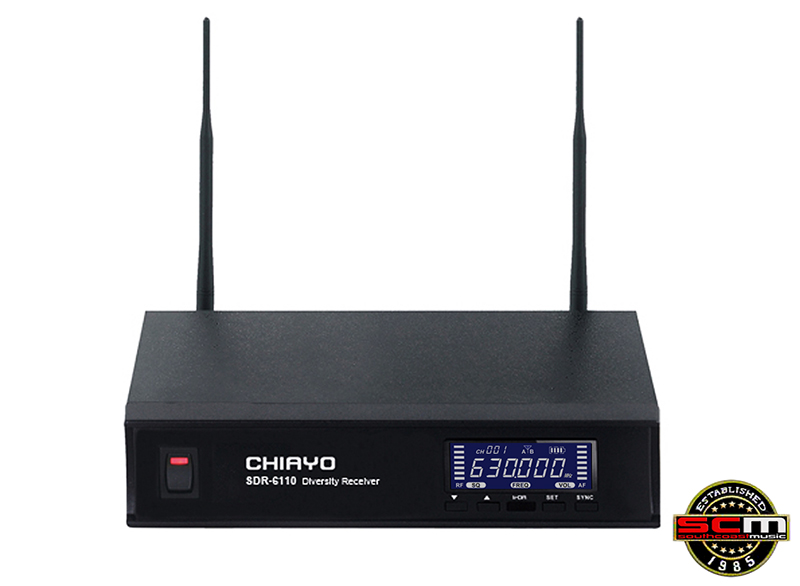

Chiayo SDR-6110-6 IrDA Receiver
The Chiayo SDR-6110 IrDA is a 100 channel UHF receiver housed in an EIA Standard ½U rack-mountable metal chassis. The high contrast LCD display provides clear indication of the channel, frequency, RF level, AF level, antenna selection and transmitter battery level.
The pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts while the adjustable SQ increases the receiver range with higher sensitivity at the same time reducing interference with lower sensitivity.
Operating in the 650-675MHz frequency range, the Chiayo SDR-6110 IrDA also features an Auto Scan function that provides a quick search for an interference-free working channel from 100 presets. The world-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
Convenient gain/volume control(s) and switchable MIC-LINE output levels are provided for connecting either MIC or LINE inputs.
The Chiayo SDR-6110 IrDA receiver can also provide power for CHIAYO antenna systems to enhance reception range and signal stability in difficult situations.
Chiayo SDR-6110 IrDA Receiver Specifications:
• Channel: Single
• Chassis: EIA standard 19″ 1/2U
• Operating Frequency Range: UHF 650-675MHz
• Bandwidth: 25 MHz
• Receiving Mode: Diversity
• Peak Deviation: ± 40 kHz
• Channel Sync: 2-way (RX ⇔ TX)
• Sensitivity: S/N > 80 dBm at 10 dBμV
• S/N Ratio: > 110 dB（A）
• T.H.D.: < 0.5% @ 1 kHz
• Frequency Response: 50 Hz – 18 KHz
• Receiving Antenna: Rear Panel. Detachable.
• Preset Frequencies: 100
• Oscillation Mode: PLL synthesized, frequency stability ± 0.005% (-10 – +60°C)
• Squelch: Pilotone & Noise-cancelling dual-squelch circuit
• Audio Output Adjustment: Gain control circuit for adjustment of output volume
• Output Connector : Balanced XLR and unbalanced 6.3 Ø
• Output Level Switch: MIC-LINE
• Power Supply: 240VAC12V DC，1.0A
• Power Consumption: 12 W
• Dimensions: W200 × H44 × D150 mm
• Weight: 0.73kg

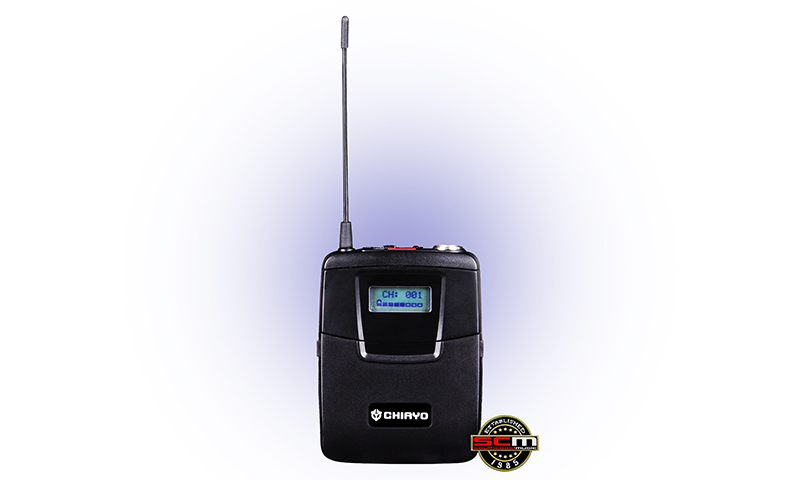

Chiayo SM-6100 IrDA Rechargeable Bodypack Transmitter
The Chiayo SM-6100 IrDA is a compact beltpack transmitter featuring a robust and lightweight plastic housing.
Chiayo’s IrDA function is the world’s first and provides rapid and precise 2-way frequency synchronisation between the receiver unit and transmitter.
A clear and intuitive LCD display allows for easy operation and quick set-up while the power switch, mini-XLR connector and antenna are conveniently mounted on top for easy access.
The mini XLR input is ready for a variety of input devices including lavalier, headset and earset microphones as well as guitar.
The Adjustable belt clip allows you to wear the beltpack in either an up or down position. Powered by 2 x AA batteries, the SM-6100 IrDA can operate up to 16 hours.
Chiayo SM-6100 IrDA Bodypack Transmitter Features:
• Multi-function LCD display for channel/frequency, sensitivity, battery status indicator, Alkaline/NiMH battery selection
• Patented IrDA technology for 2-way data transfer between transmitter and receiver.
• 100 frequencies agile in 25 MHz bandwidth
• ±40 KHz peak deviation.
• 35 mW maximum transmission power.
• Supports various lavalier, headset, instrument microphones and BP guitar cable.
• Power-On LED.
• Requires 2 x AA batteries to operate
• Low current consumption
• Long operating time up to 16 hours.
• Standard 4-pin mini XLR connector.
• 1/4 wave whip antenna.
• A choice of various lavalier or Headset microphones.
• MT and GT gain controls for beltpack microphones.
• Detachable belt-clip for changing of wearing position.
• Optional Matching battery charger: HC-92
Chiayo SM-6100 IrDA Bodypack Transmitter Specifications:
• Operating Frequency Range: UHF 650-675MHz
• Bandwidth: 25 MHz
• Preset Channels: 100
• RF power output: ≦ 35mW
• Housing Material: ABS
• Display: LCD
• Dimensions: 84 × 64 × 23 mm
• Weight: 76 g
• Power: 2 × AA Alkaline or NiMH batteries
• Operating time: 16 hours

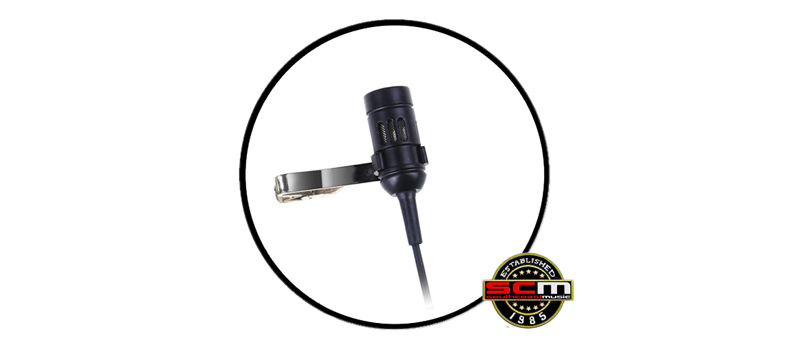

Chiayo MC-16+ Uni-Directional Lavalier Microphone Specifications:
• Model: MC-16+
• Microphone Type: Condenser
• Sensitivity: -60dB (0dB=1V/Pa at 1KHz)
• Output Impedance: 1KΩ at 1KHz
• Polar Pattern: Uni-Directional
• Frequency Response: 80~16000 Hz
• Operating Voltage: 1.5~10V DC
• Current Consumption: ≦0.5mA
• S/N Ratio: ≧60dB
• Connector: Mini XLR
• Weight: 20g
** The above specifications are subject to change without notice.
