CARVIN XP1000L 10 CHANNEL 3 X 400W POWERED MIXER
Carvin are a Family owned business. Since 1946 they have been comitted to designing and building superb music and audio products in the USA. The highest quality at the most affordable price – a claim made my many – Carvin have delivered on all levels for almost three quarters of a century and continue to do so today.
Unlike anything in its class, the ultra light XP1000L is a stereo 10 channel powered mixer with 8 XLR Mic preamps. Delivering 1200 watts RMS (1600W peak) power from its 3 power amplifiers for left, right, and floor monitors, the XP1000L lightweight powered mixer is Carvin’s newest design and delivers lighter weight, better portability and improved air circulation.
New and improved features includes more efficient 400W Class-D Digital power amps providing greater tonal quality and reliability. A front mounted 5V USB port is provided for powering an optional LED light, MP-3 player or other USB device. The 3 Class D power amps are 95% efficient, conserving power and running cooler so they are more environmentally friendly. This incredible efficiency allows the Carvin XP1000L to be powered from a small portable generator as well as standard AC power.

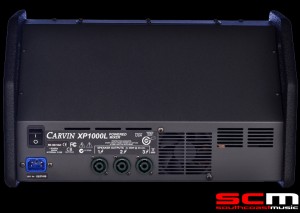

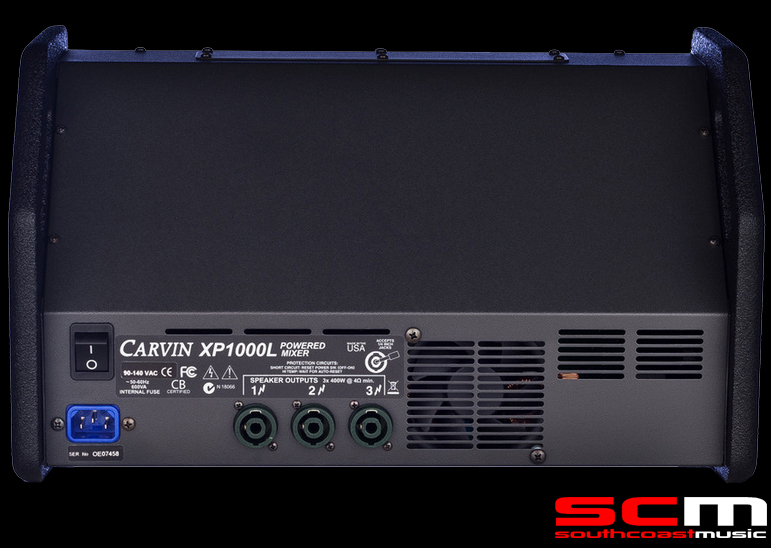

High current Speakon™ and 6.3mm (1/4″) speaker connectors are featured assuring every watt gets to your speakers. Each amp has it own LED output meter plus peak indicator.
STATE-OF-THE-ART DESIGN
SUPERB SOUND is derived from the extremely low distortion, “high headroom” design. State-of-the art, low noise, balanced XLR preamps from Carvin’s Concert Series mixers provide common mode rejection better than 78 dB, which means that any noise that may come over your cables is virtually eliminated. Distortion is also virtually non-existent with THD below 0.1% from input to output, guaranteeing the purity of your sound. Let your audience hear the difference.
LIGHTWEIGHT & EASY TO USE

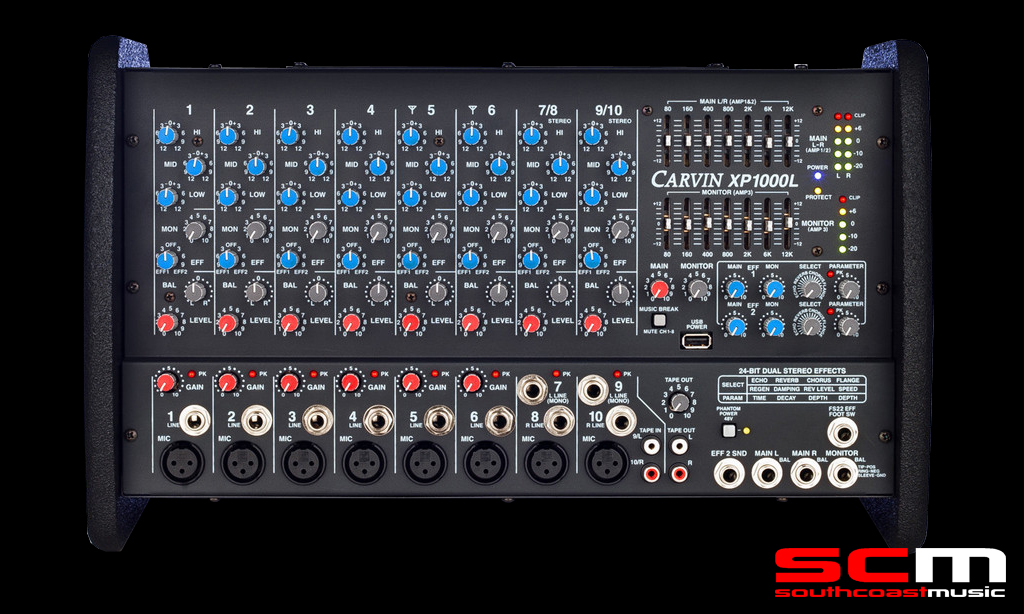

LIGHTWEIGHT & EASY TO USE Controls are logically laid out making the XP Series simple to use reducing errors during setup and performance. Its compact size and weighing in at less than 7kg (15Lbs) makes the Carvin XP1000L the lightest, most powerful mixer in its class.
GREEN MACHINE CLASS D POWER AMPS
3 HIGH CURRENT “GREEN” CLASS-D AMPLIFIERS produce total of 1200w RMS, 1600w peak. Class D amps not only run cooler, but their power capabilities are outstanding. The main L and R delivers 800w RMS (400w/400w) and the Monitor output delivers another 400w RMS – this kind of power maintains sonic purity while eliminating outboard power amps. Speaker outputs accept either standard 6.3mm (1/4″) or Speakon™ connectors for secure connections with maximum power transfer to your speakers. Output meters and clip LED’s give you a visual indicator for each amp.
HIGH CURRENT “GREEN” SWITCHMODE POWER SUPPLY
HIGH CURRENT “GREEN” SWITCHMODE POWER SUPPLY conserves power by operating at higher efficiency. The DC voltage supply is recharged 100,000 times per second, delivering continuous high current to the power amps.
TWO INDEPENDENT 24-BIT STEREO DSP EFFECTS ENGINES
TWO INDEPENDENT 24-BIT STEREO DSP EFFECTS allow you to assign each channel to your choice of effects.
You can dedicate chorus/reverb to the acoustic guitar channel and a lush reverb to the vocals, etc. Both effects are adjustable to your stage monitors so you can hear yourself with full effects.
The effects processors with 256 effects each include reverbs, choruses, flanging and echoes with fully adjustable parameters for damping, decay, depth, speed, regeneration and time.
ACTIVE 3 BAND CHANNEL EQUALISATION
ACTIVE 3 BAND CHANNEL EQ provides easy adjustment for the tone you want. The 80Hz LO frequency control delivers a solid non-flabby bass. A simple adjustment with the MID band control brings out the best sound for vocals or guitar by affecting the very important 750Hz frequency range.
The 11.5k Hz HI treble control adds sparkle to your top-end without adding harshness. Both the LO and HI controls are “shelving”, which means they are effective from 20Hz to 20kHz.
7-BAND GRAPHIC EQUALISERS
A pair of 7-BAND EQUALISERS provide precise adjustments to fine tune your overall sound and to help control feedback. A stereo (dual) graphic equaliser controls the main L and R outputs and a mono equaliser controls the monitor output.
ENGINEERED TO PERFORM – BUILT TO LAST
ENGINEERED TO PERFORM – BUILT TO LAST Every XP Series mixer incorporates a rugged steel chassis with protective side panels. Continuous full power is assured from high-grade 6063-T5-aluminum heat sinks cooled by a variable speed fan.
Sealed controls and switches guard against the outside elements while heavy-duty connectors provide a positive connection to your cables. Hidden deep in the heart of these mixers is the “SMT” Surface Mount Technology that utilises surface mounted components to prevent parts from shaking or vibrating loose.
Precision 1% tolerances guarantee your settings will be accurate every time. Fire retardant FR-4 military spec circuit cards feature double-sided copper to guard against noise and radio frequencies (RF). The XP Series is made in the USA for years of dependable service!
CARVIN XP1000L Features:
o Total number of inputs: 10 input channels
o Mic inputs: 8 XLR mic Channels
o Graphic Equalisers: Two 7 Band Graphic Equalisers (R/L or Main/Monitor)
o Effects: 2 Digital Effects Processors
o Frequency Response: Mic or Line Inputs 20Hz-20kHz ±1dB
o Total Harmonic Distortion: Less than .1% at nominal levels
o Equivalent Input Noise: 150 ohm source: -117dBu
o Output Noise: -90dBu Master Line Out (All Levels Minimum)
o Output Headroom: +20dB
o Maximum Gain: Mic in to Master Line Out: 70dB
o Crosstalk: Adjacent channels -60db at 1KHz
o Common Mode Rejection: -78db at 1KHz
o Phantom Power: 48volts @ XLR Mic channels
o USB Power Port: 5 volt, 200mA for LED lighting or MP3 charging
o Channel EQ 3-band active: LOW: 80Hz ±12dB, MID: 750Hz ±12dB, HI: 11.5KHz ±12dB
o Power Output: 1200w (3 x 400w @ 4ohms); 300w @ 8 ohms for L/R & monitor
o AC Input: 240VAC 50HZ
o Dimensions: 10.3″ high x 17″ wide x 10″ deep
o Weight: 15 lbs
Made in USA
