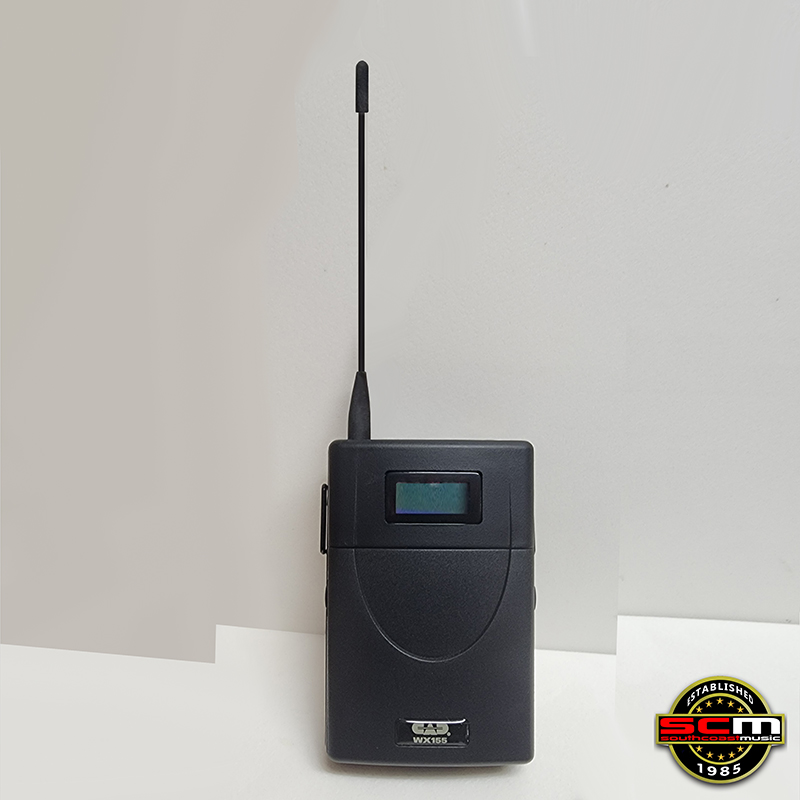

CAD WX155A UHF Wireless Bodypack Transmitter (650 to 668 MHZ)
• For Audio Visual Applications
• For Use with WX100 Receiver
• Silent On/Off Operation
• 16 Selectable Frequencies
• 2 x AA or Rechargeable Batteries
The WX155A is a body-pack transmitter designed for use in Pro Audio A/V applications.
Designed for capturing audio in a broad range of A/V applications, the CAD Audio WX155A UHF Wireless Bodypack Transmitter has been engineered for use with the WX100 receiver and a compatible microphone.
Typical sound reinforcement uses include public speaking, boardrooms, schools, houses of worship, auditoriums, lecture theatres and more. The WX155 features an uncomplicated on/off switch with Smart Audio Technology ensuring silent on/off operation.
The WX155A offers 16 switchable frequencies between 650 to 680 MHz.
The WX155 is designed to run on two AA Alkaline or Rechargeable batteries.
Its ease of use and problem-free operation along with easy-to-identify features make the WX155 a perfect solution for A/V suites, flexible meeting spaces or any situation that requires high quality, reliable wireless.
CAD WX155A Body Pack Specifications
• Frequency Band: 650 to 668 MHz
• Switchable Preset Frequencies: 16
• Frequency Response: 25Hz to 15KHz
• Maximum input level – Microphone Input: -6dBV
• Maximum input level – Instrument Input: +6dBV
• RF Transmitter Output: 50 mW maximum
• Modulation: FM, +/-40KHz peak
• Dimensions: 10cm x 6.6cm x 2.5cm
• Net Weight: 0.1Kg (without batteries)
• Power Requirements: 2 x AA Alkaline or Rechargeable Batteries
• Battery Life: >10 Hours (alkaline)
• Warranty: One Year

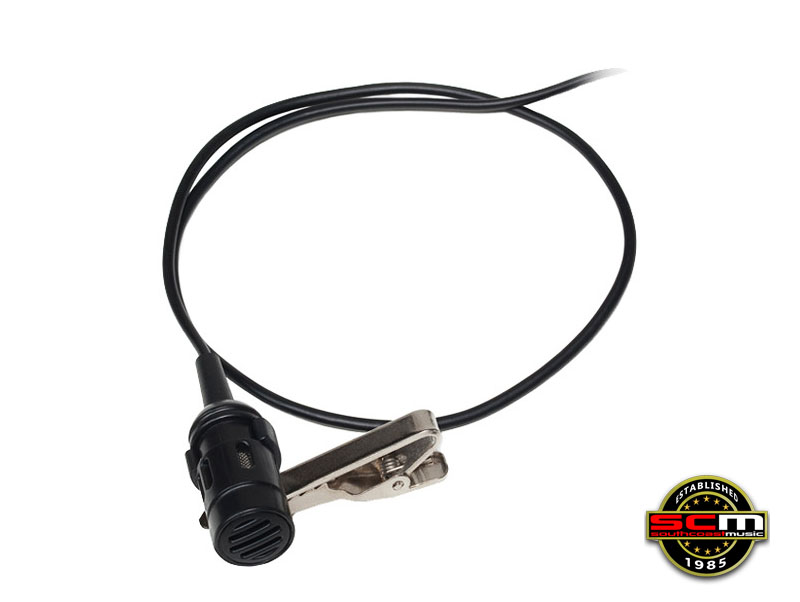

CAD Audio 301 Cardioid Condenser Lavalier Microphone
• Cardioid Polar Pattern
• Condenser
• TA4F Connector
• Wired for CAD’s WX155 Transmitter

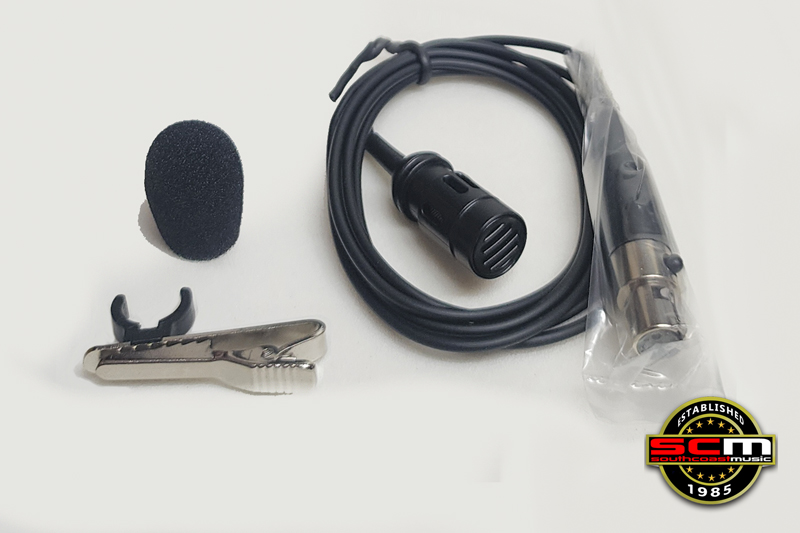

• Supplied with Lapel Clip and Windscreen
The CAD 301 Lavalier Microphone is a condenser lavalier microphone with a cardioid polar pattern. It is designed to provide a linear response, allowing it to handle higher gain levels before distortion and feedback. The 301 is an excellent solution for speech applications requiring hands free use such as presentations, interviews, lecture halls and theatres as well as houses of worship.
The 301 features a TA4F termination and is wired to work with CAD’s WX155 wireless Body Pack Transmitter.
Supplied with lapel clip and windscreen.
CAD 301 Lavalier Microphone Specifications
• Operating Principle: Condenser
• Polar Pattern: Cardioid
• Frequency Response: 80Hz – 15KHz
• Sensitivity: -25dB (58mV) @ 1Pa (MT max, XLR output)
• Impedance: 200 Ω
• Maximum SPL (MT min): 114dB
• Connector: TA4F
• Compatibility: Wired to work with the CAD WX155 bodypack transmitter
CAD Audio
CAD Professional Microphones, initially formed in 1931 as the Pro Audio division of Astatic, now designs and manufactures microphones for the recording and live sound markets. CAD Audio is a leader in innovative and cost-effective high performance studio and live microphones.
