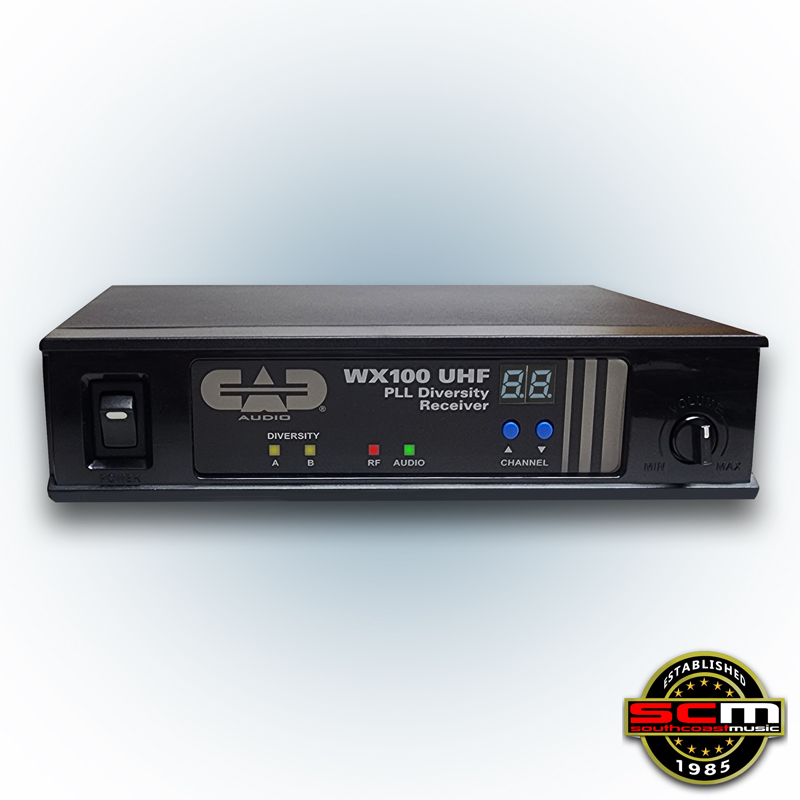

CAD WX100A UHF Wireless Microphone Receiver
The WX100 UHF Wireless Series from CAD Audio offers the A/V installer ultra-reliable high performance wireless connectivity and superior audio bandwidth. The WX100 was designed using the latest wireless technologies and industry-leading diversity performance to ensure the highest standards in connectivity in the most congested RF environments. In addition to superior connectivity, the WX100 features a familiar and intuitive control scheme that allows easy, problem-free operation by casual non-professional users.
The WX100 transmitters utilizes uncomplicated form factors, making it easy to identify various features, operate on/off switches, change and recharge batteries. These designs along with an array of useful accessories make the WX100 a perfect solution for A/V suites, Houses of Worship, flexible meeting spaces or any situation that requires easy-to-use, highly reliable wireless.
CAD WX100A Specifications:
• Balanced Output Level: -10 dBV
• Unbalanced Output Level: 10 dBV
• Balanced output Impedance: 200 ohms
• Unbalanced output Impedance: 100 ohms
• RF Bandwidth: 38.4 MHz
• Number of Switchable Frequencies: 16
• RF Sensitivity: 95 dBm, > 75 dB S/N
• Image Rejection: > 85 dB
• Squelch: Noise Squelch and Tone Squelch
• Diversity Method: True Spatial Diversity
• Dimensions: 200 x 150 x 44 mm
• Net Weight: 0.6 kg
• Warranty: One Year
• Box Contents: Receiver, 2 x Antennae, Rack Mount Adapter, 240V Power Supply
CAD Audio
CAD Professional Microphones, initially formed in 1931 as the Pro Audio division of Astatic, now designs and manufactures microphones for the recording and live sound markets. CAD Audio is a leader in innovative and cost-effective high performance studio and live microphones.
