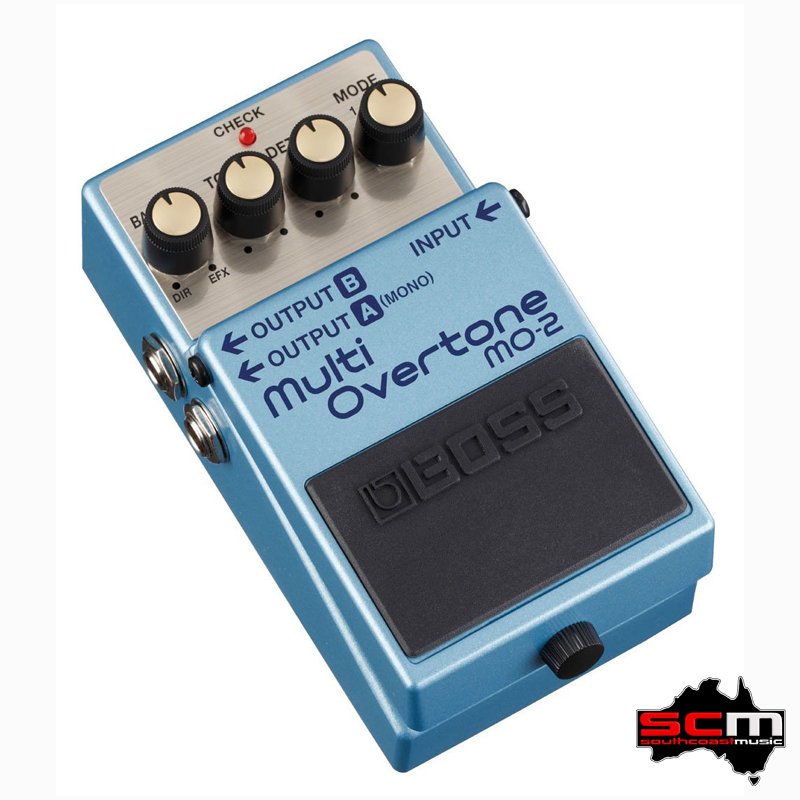

Expressive Compact with Distinctive, All-New Tones
Powered by Multi-Dimensional Processing technology (MDP), the MO-2 Multi Overtone uses your guitar’s harmonic characteristics to create a wide range of extraordinary new sounds.
Specifications
Nominal Input Level
• -20 dBu
Input Impedance
• 1 M ohm
Nominal Output Level
• -20 dBu
Output Impedance
• 1 k ohm
Recommended Load Impedance
• 10 k ohms or greater
Controls
• Pedal switch
• BALANCE knob
• TONE knob
• DETUNE knob
• MODE knob
Indicator
• CHECK indicator (Serves also as battery check indicator)
Connectors
• INPUT jack
• OUTPUT-A (MONO) jack
• OUTPUT-B jack
• AC adaptor jack (DC 9 V)
Power Supply
• Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
• AC adaptor (sold separately)
Current Draw
• 45 mA
Expected battery life under continuous use
• Alkaline: Approx. 9 hours
• Carbon: Approx. 2.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
• Owner’s Manual
• Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
• Alkaline battery (9V, 6LR61)
Option (sold separately)
• AC adaptor (PSA series)
Size and Weight
Width
• 73 mm / 2-7/8 inches
Depth
• 129 mm / 5-1/8 inches
Height
• 59 mm / 2-3/8 inches
Weight (including battery)
• 415 g / 15 oz
