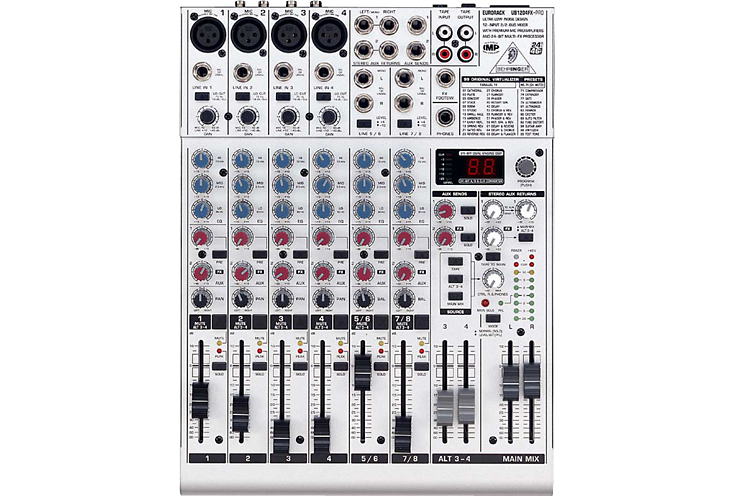

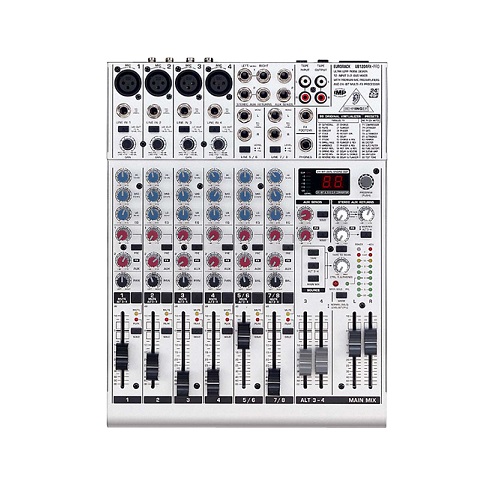

Behringer Eurorack UB1204FX-PRO Mixer with Rackmounting Kit – 4 Channels with FX
Polished performance on a pauper’s budget.
The Behringer Eurorack UB1204FX-PRO Mixer is an excellent choice for the small group’s mixing needs.
It features 4 mono channels with IMPs inserts and phantom power, plus 2 stereo channels. Configured with 2 subgroups, 2 aux sends, and 2 stereo aux returns. 3-band EQs on all channels (low-cut on mono channels). Equipped with a 24-bit digital effects processor, 60mm ALPS faders, and an onboard autorange power supply. Rackmounting kit included.
FEATURES
4 mono channels with IMPs inserts and phantom power
24-bit digital effects
2 stereo channels
2 subgroups, 2 aux sends, and 2 stereo aux returns
3-band EQs on all channels (low-cut on mono channels)
Equipped with 60mm ALPS faders
Onboard autorange power supply
Rackmounting kit included
SPECIFICATIONS
Ultra-low noise design, highest possible headroom, ultra-transparent audio
4 state-of-the-art, studio-grade IMP “Invisible” Mic Preamps with 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
Studio-grade stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Effective, extremely musical 3-band EQ plus switchable low-cut filter on all mono channels
8 balanced high-headroom line inputs with +4/-10 level selection on stereo channels
2 aux sends per channel: one pre/post fader switchable for monitoring/FX applications and one post fader (for internal FX or as external send)
Clip LEDs, mute/alt 3-4, solo and PFL functions on all channels
2 subgroups with separate outputs for added routing flexibility
2 multi-functional stereo aux returns with flexible routing

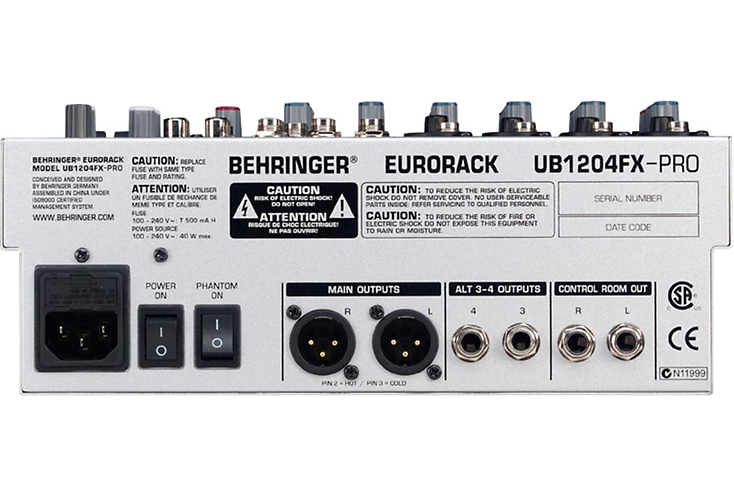

Balanced main mix outputs with gold-plated XLR connectors plus separate control room, headphone and 2-track outputs
Control room/headphone outputs with multi-input source matrix
2-track inputs assignable to main mix or control room/headphone outputs
Switchable +48 V phantom power for condenser microphones
Rack mount brackets included
Internal switch-mode power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy saving
3-Year Warranty Program*
Designed and engineered in Germany
