audio-technica ATM-350CW
audio-technica ATM-350CW cardioid instrument microphone with clip to suit brass, upright bass, reeds, piano, snare, toms, and violin. Terminated with a locking 4-pin connector for audio-technica UniPak® body-pack wireless transmitters.
click on image to enlarge
*Note

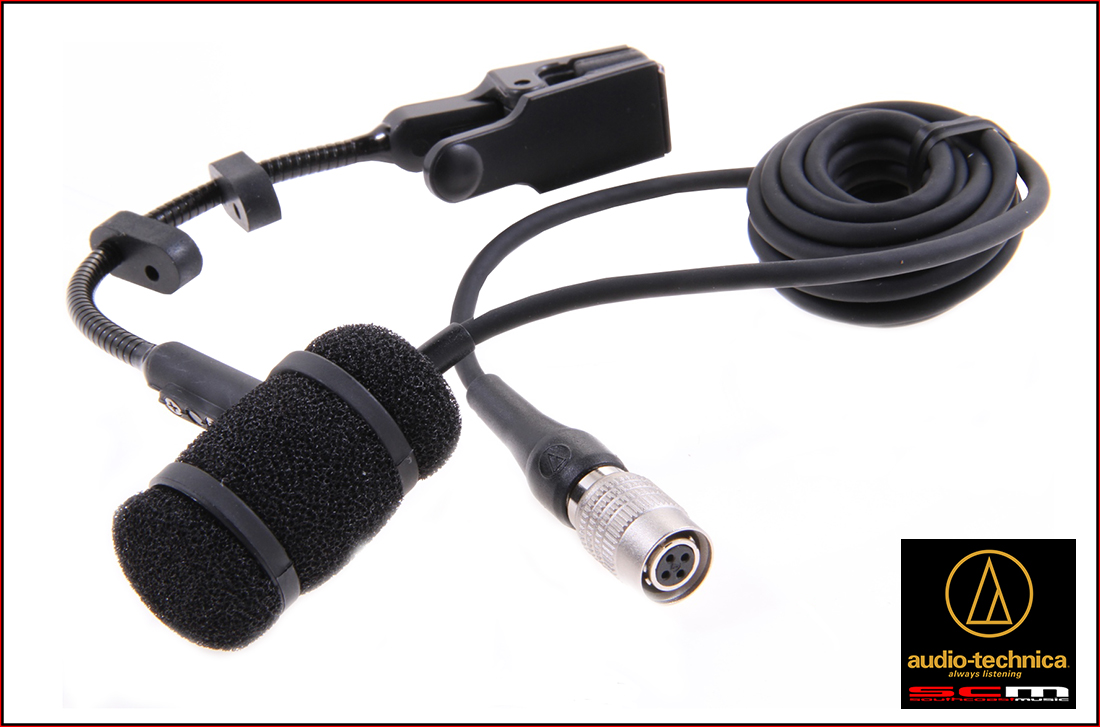

The audio-technica ATM350cW is designed specifically for use with audio-technica wireless belt-pack transmitters and therefore does not include the AT8542 power module. The phantom power required is supplied from the wireless Belt-Pack transmitter. The audio-technica ATM-350CW package comprises the ATM350 high-intensity cardioid condenser clip-on instrument microphone with a 1.4m (55″) cable terminated for use with an audio-technica UniPak transmitter. Also included is an AT8418 clip-on instrument mount and AT8468 violin mount.
audio-technica ATM350cW Wireless Clip-On Instrument Microphone features:
- Low-profile design for minimum visibility on stage
- UniMount clip permits accurate positioning, provides shock resistance and protects element
- Unique violin mount permits unobtrusive placement of microphone between the instrument’s bridge and tailpiece
- Crisp, clear, well-balanced response, even at high SPLs
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Interchangeable elements available for hypercardioid and omnidirectional polar patterns (contact us for details)
- Rugged, all-metal design and construction for years of trouble-free use
- 1.4m (55″) cable terminated for audio-technica wireless systems.
Japan’s audio-technica are one of the world’s most respected microphone and headphone manufacturers. Used exclusively for the Olympic Games and a favourite with Recording and Television Studios as well as discerning Artists, audio-technica continue to bring their superb innovations to the market at truly remarkable prices. The ATM-350CW is a great example of this philosophy.

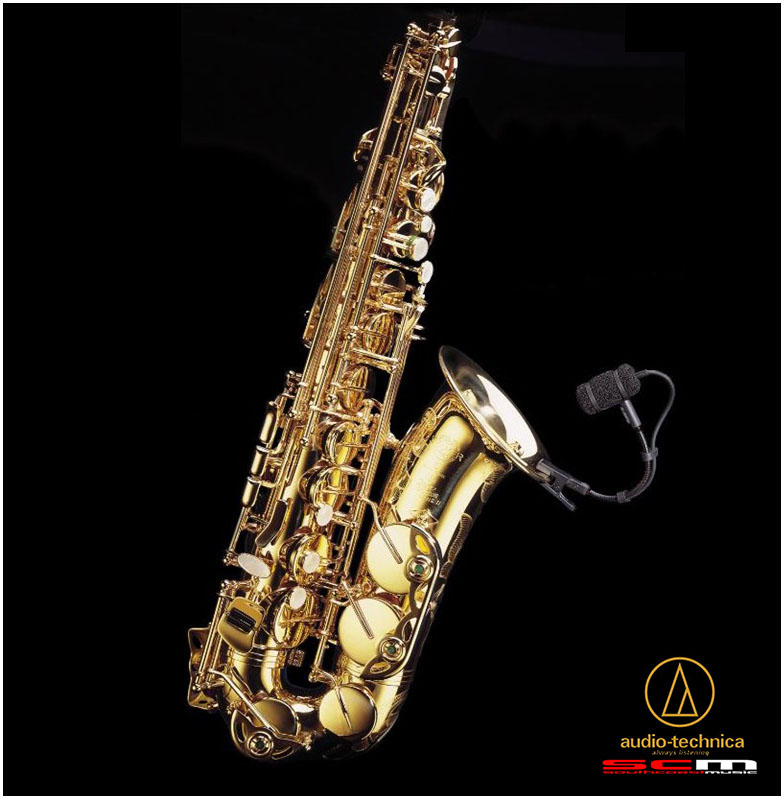

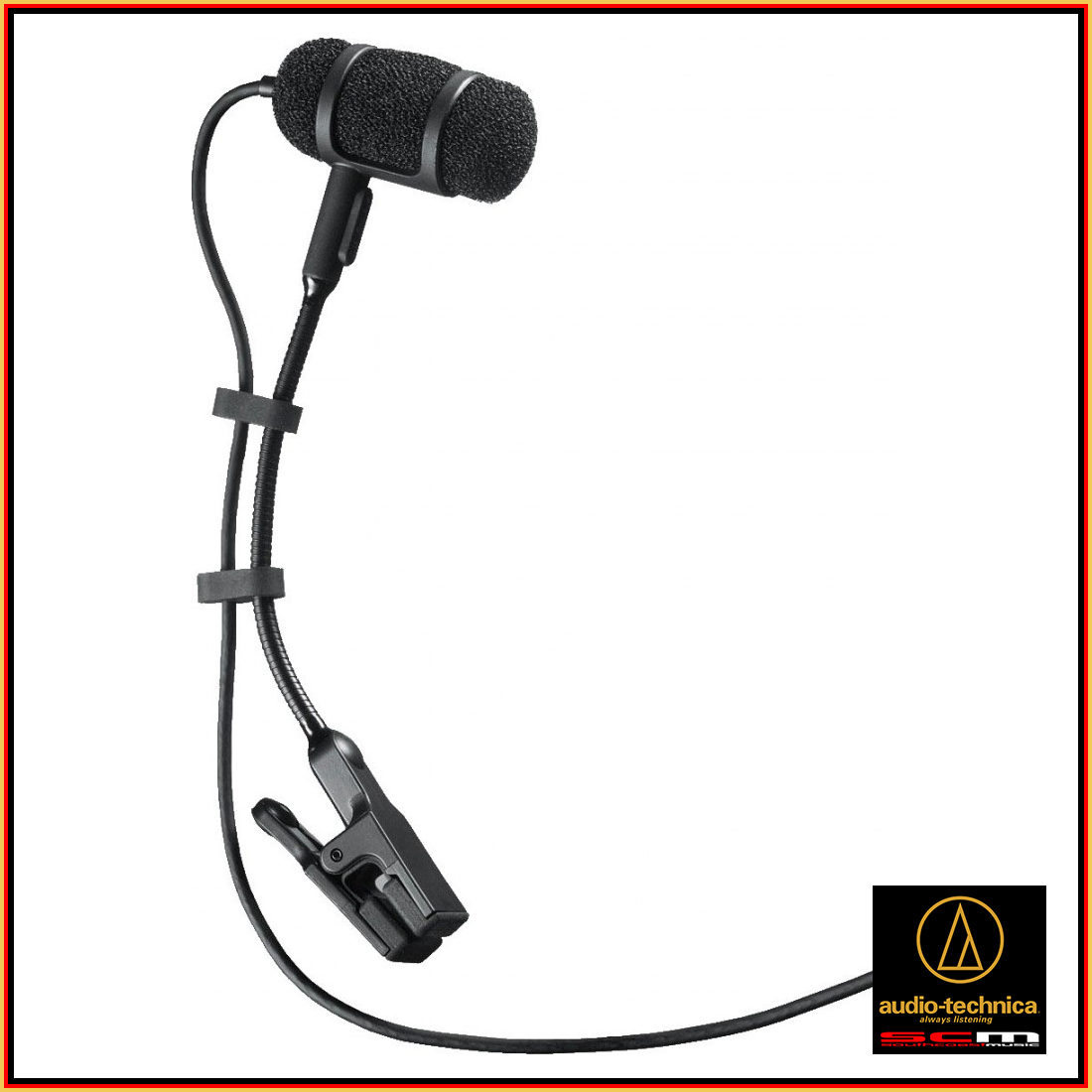

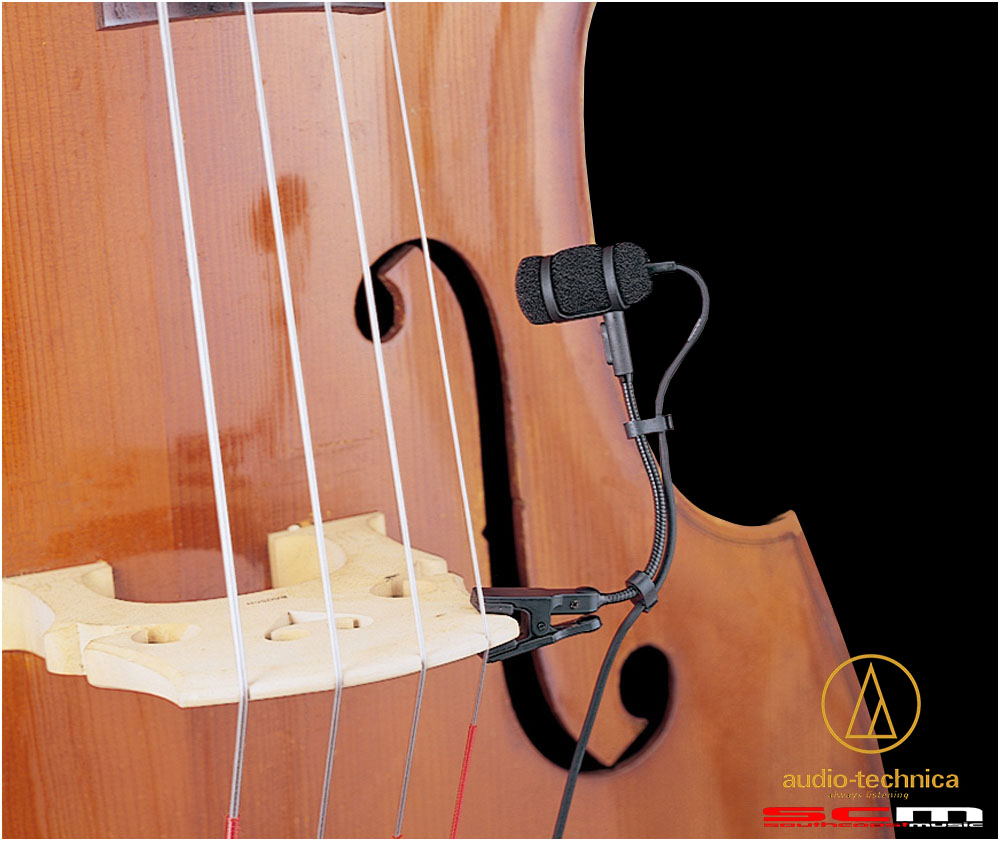

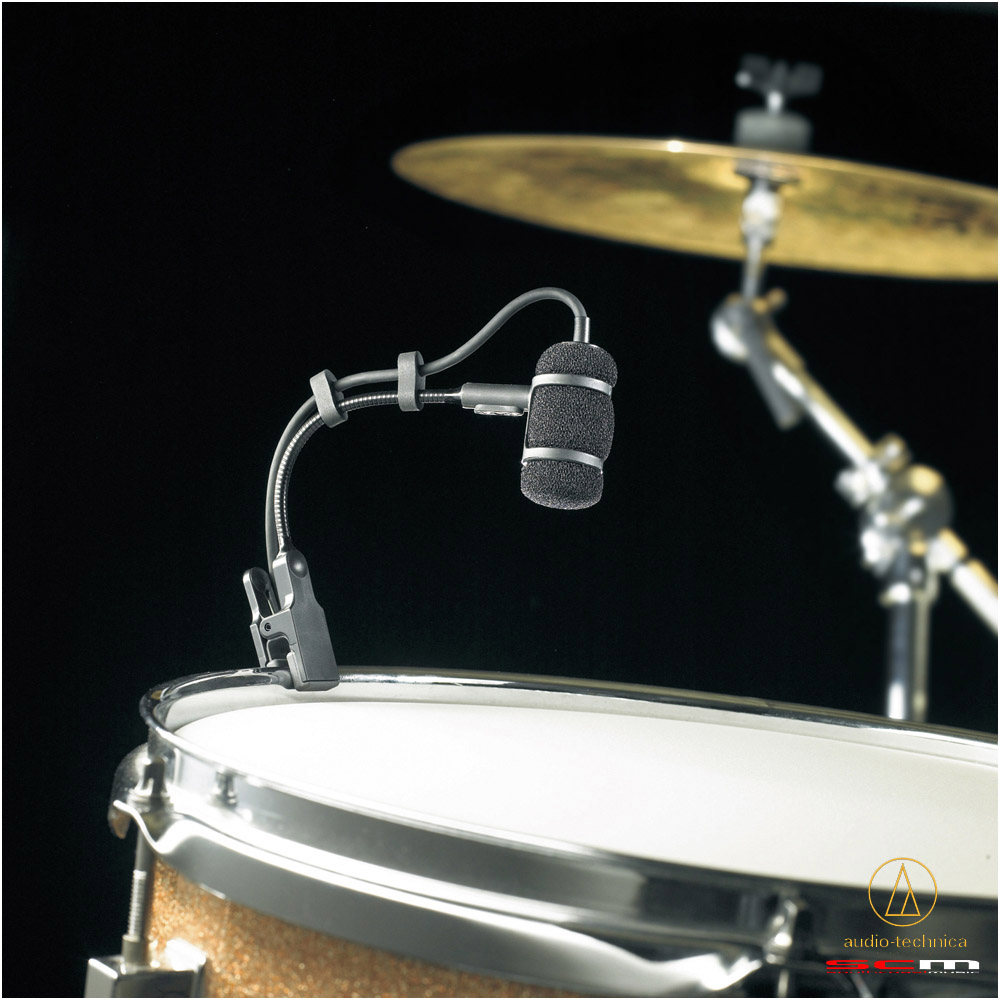

Supplied with Audio-Technica’s versatile UniMount® clip and new violin mount, the low-profile ATM350CW is an exceptional cardioid condenser microphone designed to clip to brass, upright bass, reeds, piano, snare, toms, and violin.
The microphone offers a crisp, clear, well-balanced response, even at high SPLs.
Its cardioid polar pattern reduces pickup of sounds from the side and rear for effective protection against feedback.
click on images to enlarge

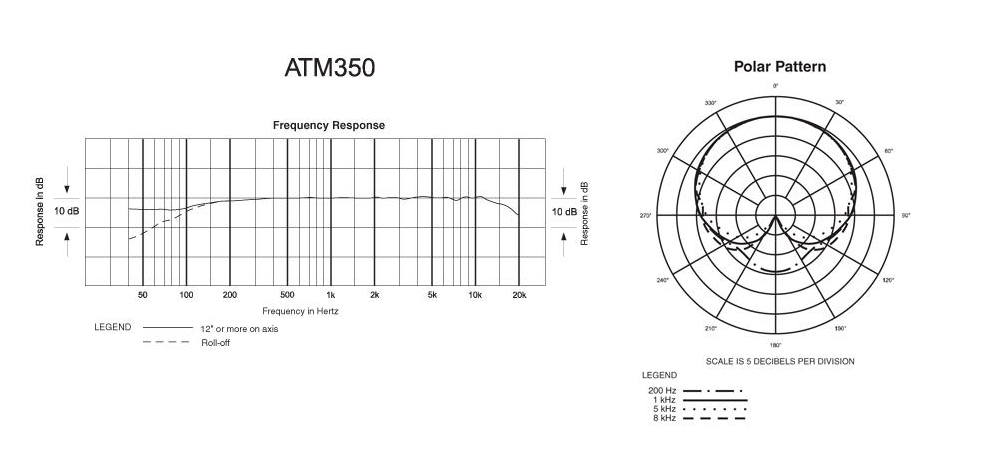

audio-technica ATM350CW Specifications
Element: Fixed-charge back plate permanently polarised condenser
Polar Pattern: Cardioid
Frequency Response: 40-20,000 Hz
Low Frequency Roll-Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1 Pa
Impedance: 50 ohms
Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range(typical): 122 dB, 1 kHz at Max SPL
Signal-to-noise Ratio: 67 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 3.5 mA typical
Weight: MICROPHONE: 14.5 g
Dimensions: MICROPHONE: 37.8 mm (1.49″) long, 12.2 mm (0.48″) diameter
Output Connector: Integral Hirose 4-pin connector with 1.4m cable

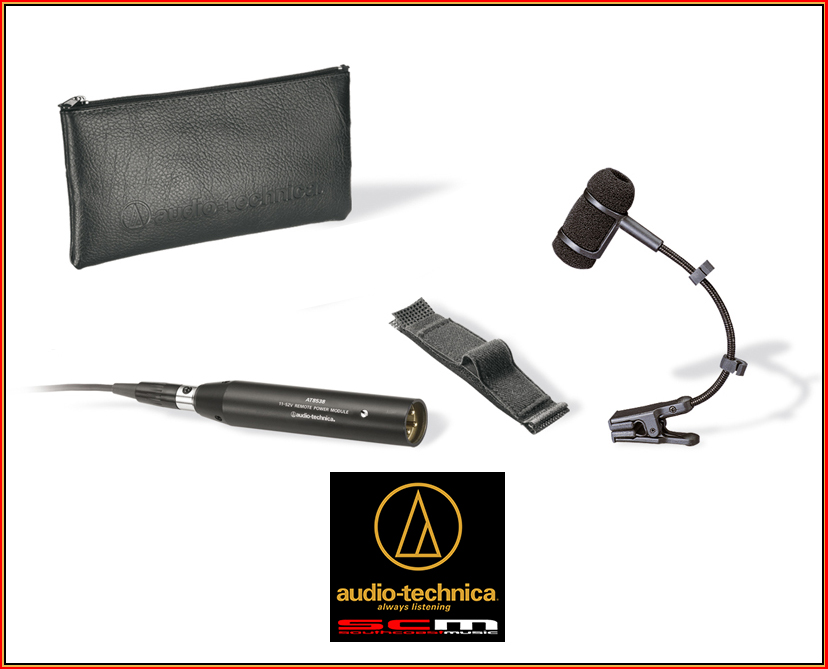

Accessories Furnished: AT8418 UniMount® microphone instrument mount; AT8468 violin mount; soft protective pouch
Audio-Technica Case Style: M36
