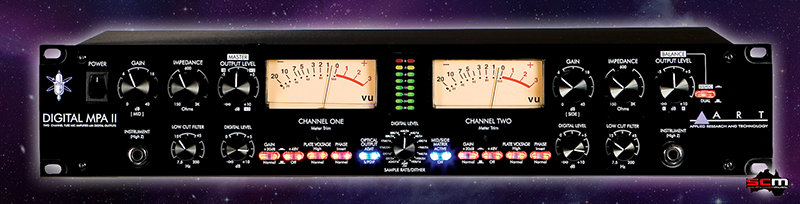

ART Pro Audio Digital MPA II Two Channel Tube Preamp
The all new ART Digital MPA-II delivers all of the same great features of the ProMPA with the added versatility of digital outputs.
Like the ProMPA-II, each input circuit has 48v phantom power and features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone.
The Digital MPA-II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.
The input section of the Digital MPA-II operates at either a low or high plate voltage applied to the two integrated hand-selected 12AX7 tubes for wider variation of preamp tone and performance. Large back-lit analog VU output meters display output levels while multi-colored LED arrays, with average or peak hold, show tube gain and digital output levels.
In addition to XLR and 1/4″ analog outputs, the Digital MPA-II features a high quality A to D converter which offers digital connectivity on S/PDIF, ADAT, or AES/EBU outputs. A rotary control on the front panel allows selection of format and sample rates from 44.1 to 192 KHz and 16 bit dithering. There is also a push button for, and two wordclock jacks, allowing loop-through.
The Digital MPA-II comes in a standard 2u space rack-mountable steel chassis, with CNC routed black anodized aluminum face panel.
Key features:
• Variable Input Impedance For Flexible Microphone Voicing (150 ohms To 2400 ohms)
• Selectable Plate Voltage
• Large VU Meters
• Backlit Function Switches
• Discrete Class-A Input Microphone Preamplifier
• Low Noise at Lower Gain Settings
• Extremely Low Total Harmonic Distortion (THD)
• Wide Frequency Response
• Additional Front Mounted Instrument Input Jack
• Supports Mid/Side Miking Technique
• Operates at +4dbm/-10dbv Output
• Selectable Stereo/Dual Operation of Output Controls
• Automatic Instrument Input Selection
• 24-204KHz External sample rate
• 44.1K, 48K, 88.2K, 96K, 176.4K, 192K Internal sample rates
• 24/16 bit switchable dithering
• Wide dynamic range A/D
• Rotary Encoder for quick selection of sample rate
• Separate analog and digital output level controls
• Digital Level LED meters display both Average and Peak level
• ADAT optical I/O
• Sync to incoming ADAT data rate
• Switch selectable optical output (S/PDIF or ADAT) AES/EBU and S/PDIF outputs
• Two wordclock jacks allowing loop through
ART Digital MPA-II Specifications
• Brand: ART Pro Audio
• Gross Shipping Weight: 6kg (Volumetric)
• Preamp Type: Tube (Valve)
• Number Of Channels: 2
• Rack Spaces: 2RU
• Analog Inputs: 2 x XLR | 2 x 1/4″ jacks (Line)| 2 x 1/4″ jacks (Hi-Z) | 1 x ADAT (Optical)
• Analog Outputs: 2 x XLR | 1 x S/PDIF (Optical) | 1 x S/PDIF (Coax) | 1 x AES/EBU (XLR)
