AKG WMS40 Mini Wireless Beltpack System Single Instrument Set US25SIB 537.900MHz
WMS-S40SIB
• Up to 30 hours playtime with one single AA battery
• Plug & Play
• Gain control on pocket transmitter
• Compatible with all AKG MicroMics
• Low battery indicator
• Smallest and lightest bodypack transmitter in its class
Suitable for:
• Live sound
• Schools
• Houses of worship
• Conferencing
• Sound and Audio Visual companies
• Gyms
From humble beginnings in 1949, AKG microphones and headphones have built a rock solid reputation on stage and in the studio with international musicians such as Frank Sinatra, Eric Clapton, Peter Gabriel, Stevie Wonder, Aerosmith, the Rolling Stones, Rod Stewart, Anastasia, Eros Ramazotti, Kayne West and Simply Red.
The AKG WMS 40 Mini Single Instrument Set is a true plug and play solution for people wanting a wireless solution with clear, natural sound and ease of use at an unbeatable price/performance ratio.
Unique HDAP (High Definition Audio Performance) technology ensures the best possible, most realistic sound at any time.
The SR40 Mini receiver provides three status LEDs indicating:
• ON/OFF status
• Received signal strength (RF OK)
• Audio clipping (AF CLIP)
The VOLUME control sets the level at the 6.35mm (¼”) output jack.
The SR40 comes complete with a 240VAC – 12VDC switched mode power supply. The illuminated ON/OFF button clearly indicates when the system is on.
The SR40 receiver features an ultra compact housing and offers a 6.3mm (1/4″) jack output.
AKG are famous for their wireless technology and the rugged PT 40 Mini handheld transmitter is a great performer.
The compact PT40 Mini pocket transmitter utilises a professional 3 pin mini XLR connector.
The system comes supplied with an AKG MKG L instrument cable ready to use with either electric guitars, basses and most string instruments with a pickup installed. AKG also offer a comprehensive range of Lavalier/Lapel mics, Headset mics and instrumental mics designed to work with the PT40 Mini Pocket transmitter.
The exceptional 30 hours battery life from a single AA battery is really practical and saves serious money over the long term with day-to-day use.

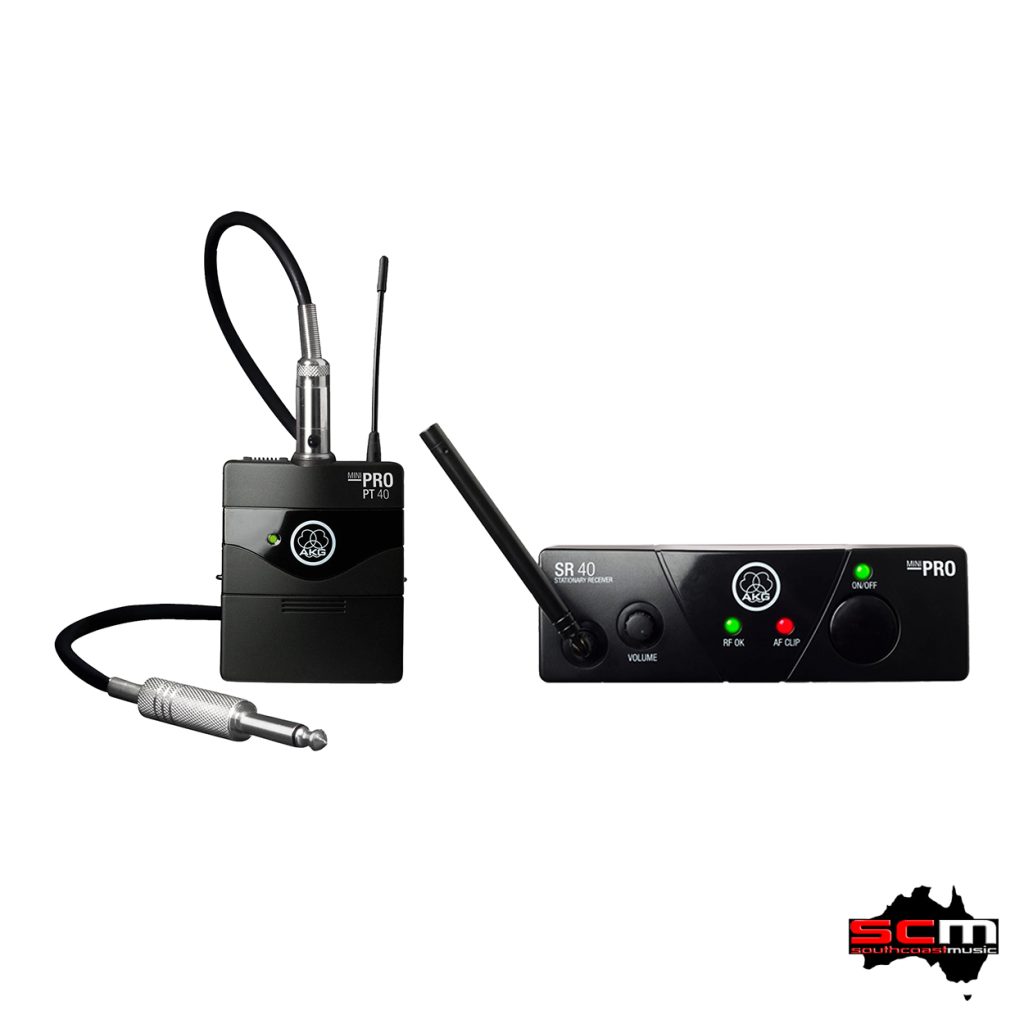

The AKG WMS40 Mini Wireless Beltpack System Single Instrument Set Band A system includes:
• 1 x AKG SR 40 MINI Receiver
• 1 x AKG PT 40 MINI Beltpack Transmitter
• 1 x AKG MKG L Musical Instrument Connection Lead
• 1 x Universal power supply with US/UK/EU/Australian adapters
• 2 x AA size dry batteries
AKG WMS40 Mini Wireless Beltpack System Features:
• AKG Product Code: WMS-S40SIB
• Frequency Band: US25B
• Frequency: 537.900MHz
• Modulation: FM
• Audio Bandwidth: 40 to 20,000 Hz
• Frequency Stability: (-10°C to +50°C) ±15 kHz
• T.H.D.: 0.8% (at 1 kHz typical)
• Signal/Noise Ratio: 105 dB(A) typical
• RF Output: Maximum 10 mW (typical)
• HT Handheld Mic Power Requirement: single 1.5-V AA size battery
• Battery life: Up to 30 hours
